AST45PT Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

AST45PT1L00010P4X1N065:CTO-13000000-01

Part	Operating Pressure	Operating Pressure	Features	Output Type	Package / Case	Output [Max]	Output [Min]	Port Size	Port Size	Applications	Port Style	Maximum Pressure	Maximum Pressure	Accuracy	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity AMP Connectors AST45PT1L00010P4X1N065	68.95 kPa	10 PSI	Temperature Compensated	Analog Current	Cylinder Threaded	20 mA	4 mA	1/4 Female NPT	0.25 in	Industrial Automation	Threaded	137.9 kPa	20 PSI	0.25 %	Gauge	85 °C	-40 C	Cable	10 VDC	28 V

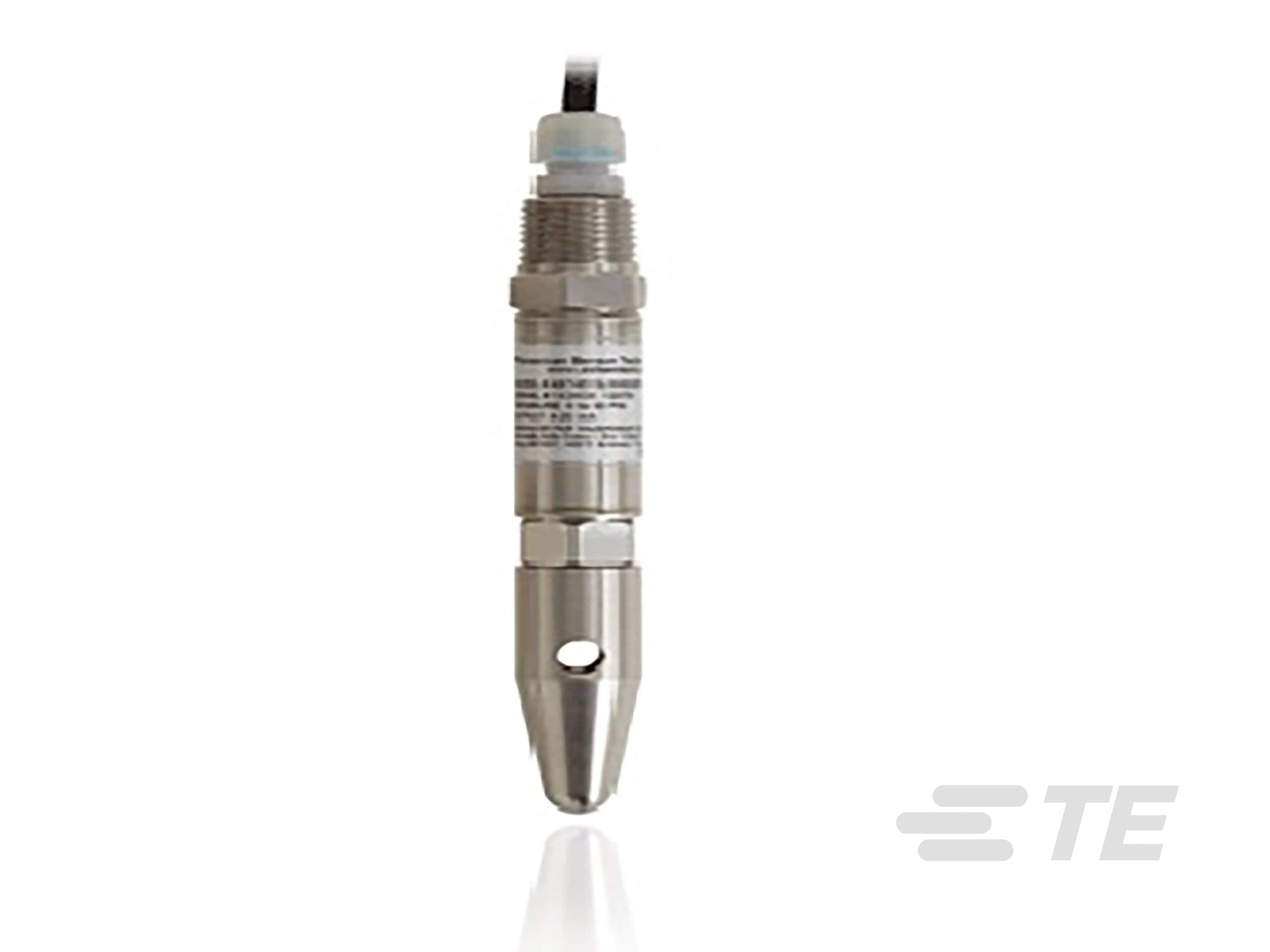

TE Connectivity AMP Connectors AST45PT2L00069H4X1N074	17.19 kPa	2.49 PSI	Temperature Compensated	Analog Current	Cylinder Threaded	20 mA	4 mA	1/4 Female NPT	0.25 in	Industrial Automation	Threaded	34.32 kPa	4.98 PSI	0.25 %	Gauge	85 °C	-40 C	Cable	10 VDC	28 V
TE Connectivity AMP Connectors AST45PT3L00010P4X1N065	68.95 kPa	10 PSI	Temperature Compensated	Analog Current	Cylinder Threaded	20 mA	4 mA	1/4 Female NPT	0.25 in	Industrial Automation	Threaded	137.9 kPa	20 PSI	0.25 %	Gauge	85 °C	-40 C	Cable	10 VDC	28 V
TE Connectivity AMP Connectors AST45PT1L00005P4X1N004	34.47 kPa	5 PSI	Temperature Compensated	Analog Current	Cylinder Threaded	20 mA	4 mA	1/4 Female NPT	0.25 in	Industrial Automation	Threaded			0.25 %	Gauge	85 °C	-40 C	Cable	10 VDC	28 V	10 PSI	68.95 kPa
TE Connectivity AMP Connectors AST45PT1L00050P4X1N003	344.74 kPa	50 PSI	Temperature Compensated	Analog Current	Cylinder Threaded	20 mA	4 mA	1/4 Female NPT	0.25 in	Industrial Automation	Threaded	344.74 kPa	50 PSI	0.25 %	Gauge	85 °C	-40 C	Cable	10 VDC	28 V
TE Connectivity AMP Connectors AST45PT1L00015P4X1N130	103.42 kPa	15 PSI	Temperature Compensated	Analog Current	Cylinder Threaded	20 mA	4 mA	1/4 Female NPT	0.25 in	Industrial Automation	Threaded			0.25 %	Gauge	85 °C	-40 C	Cable	10 VDC	28 V	30 PSI	206.84 kPa
TE Connectivity AMP Connectors AST45PT3L00360H4P1L	89.67 kPa	13.01 PSI	Temperature Compensated	Analog Current	Cylinder Threaded	20 mA	4 mA	1/4 Female NPT	0.25 in	Industrial Automation	Threaded	179.34 kPa	26.01 PSI	0.25 %	Gauge	85 °C	-40 C	Cable	10 VDC	28 V
