LXM Series

Manufacturer: Chemi-Con

Catalog

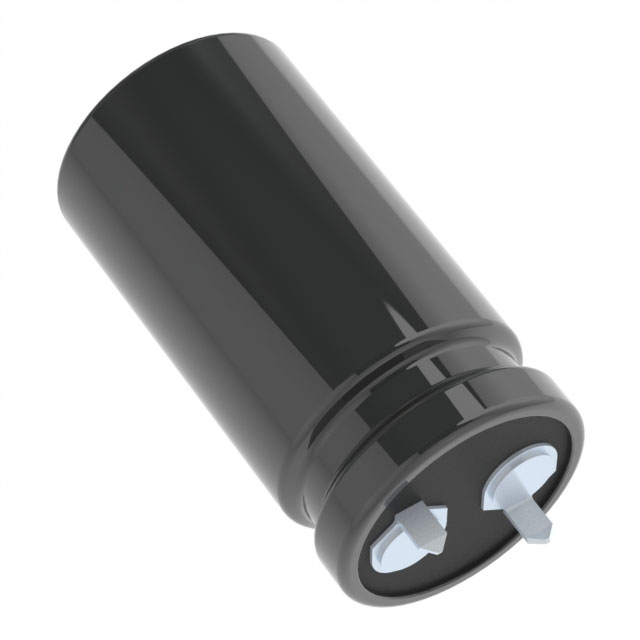

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 150UF 450 VOLT

Part	Lifetime @ Temp.	Applications	Voltage - Rated	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Capacitance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Tolerance	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Chemi-Con ELXM451VSN151MQ40S	7000 Hrs	General Purpose	450 V	Through Hole	25.4 mm	1 "	1.3442 A	150 µF	Radial Can - Snap-In	42 mm	1.654 in	Polar	20 %	940 mA	105 ░C	-25 °C	0.394 in	10 mm
Chemi-Con ELXM421VSN820MQ25S	7000 Hrs	General Purpose	420 V	Through Hole	25.4 mm	1 "	900.9 mA	0.082 mF	Radial Can - Snap-In			Polar	20 %	630 mA	105 ░C	-25 °C	0.394 in	10 mm	1.063 in	27 mm
Chemi-Con ELXM161VSN391MP30S	7000 Hrs	General Purpose	160 V	Through Hole	22 mm	0.866 "	1.89 A	390 µF	Radial Can - Snap-In	32 mm	1.26 in	Polar	20 %		105 ░C	-25 °C	0.394 in	10 mm
Chemi-Con ELXM181VSN471MP35S	7000 Hrs	General Purpose	180 VDC	Through Hole	22 mm	0.866 "	2.13 A	470 µF	Radial Can - Snap-In		1.457 in	Polar	20 %	1.42 A	105 ░C	-25 °C	0.394 in	10 mm			37 mm
Chemi-Con ELXM201VSN391MP35S	7000 Hrs	General Purpose	200 VDC	Through Hole	22 mm	0.866 "	1.935 A	390 µF	Radial Can - Snap-In		1.457 in	Polar	20 %	1.29 A	105 ░C	-25 °C	0.394 in	10 mm			37 mm
Chemi-Con ELXM351VSN221MP45S	7000 Hrs	General Purpose	350 V	Through Hole	22 mm	0.866 "	1.6016 A	220 µF	Radial Can - Snap-In			Polar	20 %	1.12 A	105 ░C	-25 °C	0.394 in	10 mm	1.85 in	47 mm
Chemi-Con ELXM181VSN821MQ40S	7000 Hrs	General Purpose	180 VDC	Through Hole	25.4 mm	1 "	3.015 A	820 µF	Radial Can - Snap-In	42 mm	1.654 in	Polar	20 %	2.01 A	105 ░C	-25 °C	0.394 in	10 mm
Chemi-Con ELXM421VSN151MQ35S	7000 Hrs	General Purpose	420 V	Through Hole	25.4 mm	1 "	1.3156 A	150 µF	Radial Can - Snap-In		1.457 in	Polar	20 %	920 mA	105 ░C	-25 °C	0.394 in	10 mm			37 mm
Chemi-Con ELXM251VSN181MP25S	7000 Hrs	General Purpose	250 V	Through Hole	22 mm	0.866 "	1.23 A	180 µF	Radial Can - Snap-In			Polar	20 %	820 mA	105 ░C	-25 °C	0.394 in	10 mm	1.063 in	27 mm
Chemi-Con ELXM161VSN681MP40S	7000 Hrs	General Purpose	160 V	Through Hole	22 mm	0.866 "	2.625 A	680 µF	Radial Can - Snap-In	42 mm	1.654 in	Polar	20 %	1.75 A	105 ░C	-25 °C	0.394 in	10 mm
