IRLBA130 Series
Manufacturer: INFINEON
Beta
⌘K

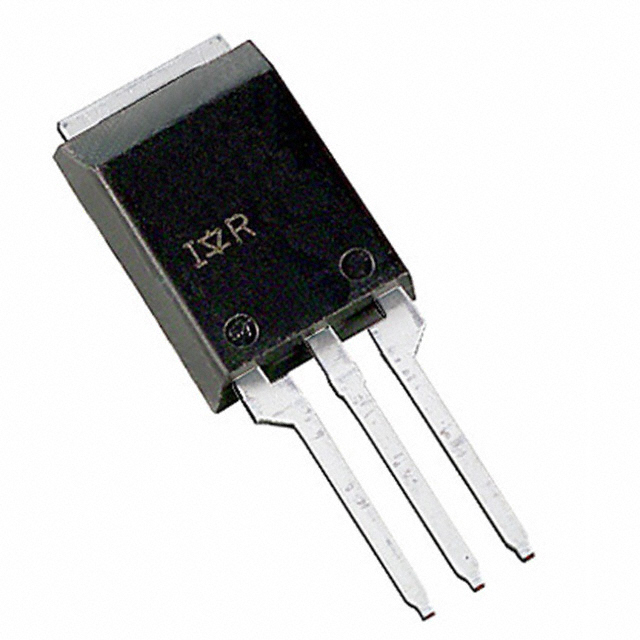

MOSFET N-CH 40V 185A SUPER-220
| Part | Vgs (Max) | Rds On (Max) @ Id, Vgs | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Drain to Source Voltage (Vdss) | Supplier Device Package | Supplier Device Package | Mounting Type | Gate Charge (Qg) (Max) @ Vgs | Current - Continuous Drain (Id) @ 25°C | Technology | Input Capacitance (Ciss) (Max) @ Vds [Max] | Power Dissipation (Max) | Vgs(th) (Max) @ Id |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 16 V | 4 mOhm | N-Channel | 4.5 V 10 V | TO-273AA | 175 °C | -55 °C | 40 V | SUPER-220™ | TO-273AA | Through Hole | 140 nC | 185 A | MOSFET (Metal Oxide) | 7660 pF | 300 W | 1 V |
