SRP.M0 Series
Manufacturer: LEMO
Beta
⌘K

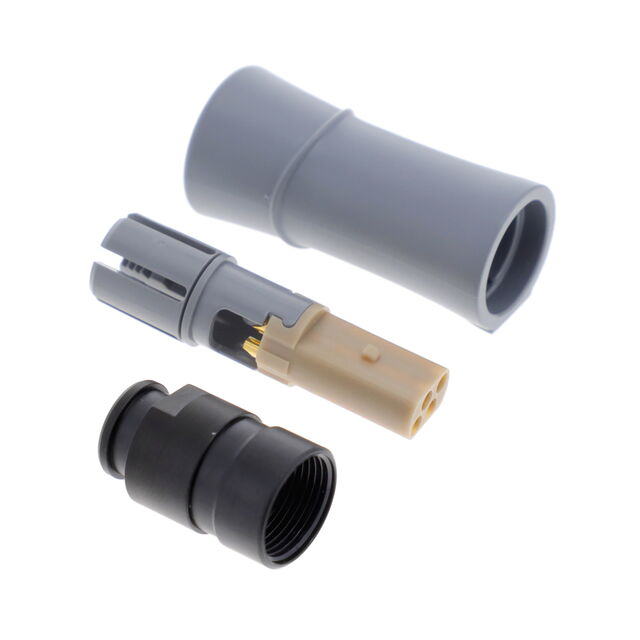

CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Cable Opening | Cable Opening [Max] | Cable Opening [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Primary Material | Current Rating (Amps) | Applications | Shell Size - Insert | Contact Finish - Mating | Number of Positions | Mounting Type | Insert Material | Shell Material | Fastening Type | Ingress Protection | Features | Orientation | Shielding | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 4 mm 5.2 mm | 0.205 in | 0.157 in | 170 °C | -50 °C | Sulfone | Plastic | 11.5 A | Automotive Industrial Medical Testing Equipment & Measurement | M04 | Gold | 4 | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Sulfone | Push-Pull | IP50 - Dust Protected | Backshell | P | Unshielded | Receptacle Female Sockets |
