UTVB1 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

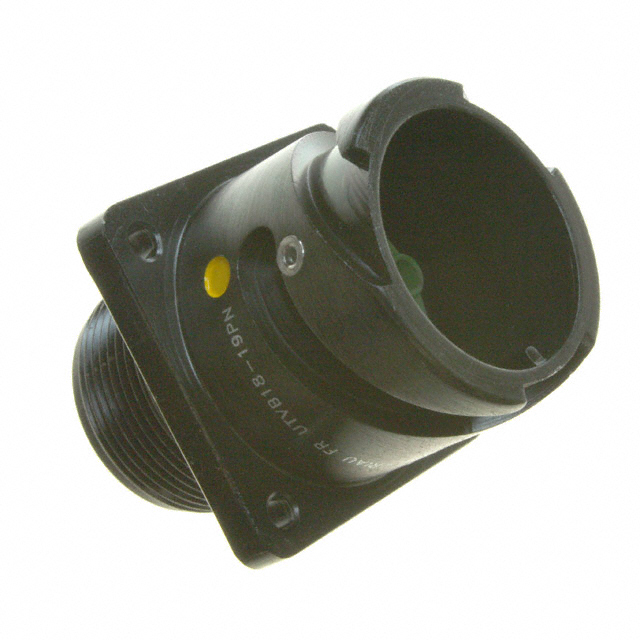

CONN RCPT HSNG MALE 10POS PNL MT
| Part | Housing Color | Contact Type | Fastening Type | Orientation | Note | Operating Temperature (Max) | Operating Temperature (Min) | Number of Positions | Shielding | Contact Size | Connector Type | Ingress Protection IP Rating | Ingress Protection Description | Contact Shape | Shell Finish | Mounting Type | Mounting Feature | Insert Material | Type | Shell Material | Shell Size - Insert (Minimum) | Shell Size - Insert (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Black | Crimp | Reverse Bayonet Lock | N (Normal) | Contacts Not Included | 100 °C | -40 °C | 10 | Unshielded | 16 S | Receptacle Housing | IP67 IP68 IP69K | Dust Tight Water Resistant Waterproof | Circular | Zinc Cobalt | Panel Mount | Flange | Glass Fiber Thermoplastic | For Male Pins | Aluminum Alloy | 18 | 19 |
Amphenol Aerospace Operations | Black | Crimp | Reverse Bayonet Lock | N (Normal) | Contacts Not Included | 100 °C | -40 °C | 10 | Unshielded | 16 S | Receptacle Housing | IP67 IP68 IP69K | Dust Tight Water Resistant Waterproof | Circular | Zinc Cobalt | Panel Mount | Flange | Glass Fiber Thermoplastic | For Female Sockets | Aluminum Alloy | 18 | 19 |
