696301 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

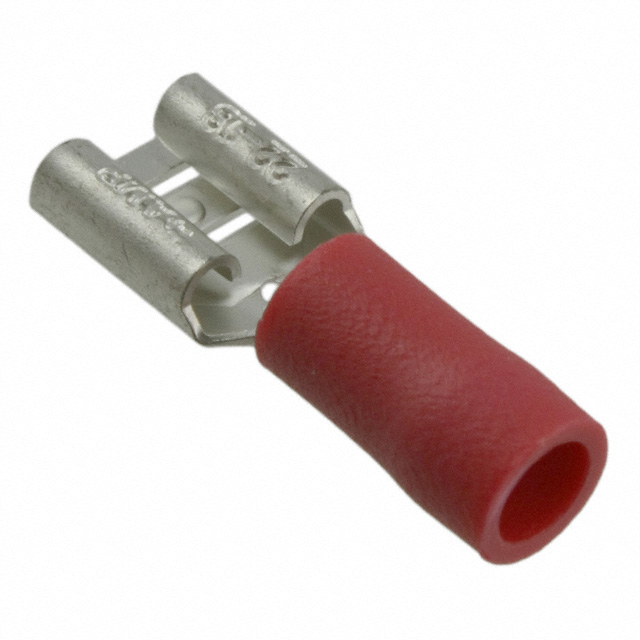

CONN QC RCPT 18-22AWG 0.250
| Part | Insulation Diameter [Max] | Insulation Diameter [Min] | Tab Thickness | Tab Thickness | Tab Width [x] | Tab Width [x] | Termination | Insulation | Tab Length | Tab Length | Contact Material | Length - Overall | Length - Overall | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Gender | Mounting Type | Contact Finish | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 " 3.18 mm | 0.09 " 2.29 mm | 0.81 mm | 0.032 in | 6.35 mm | 0.25 in | Crimp | Non-Mating End Insulated | 0.301 " | 7.65 mm | Brass | 0.864 in | 21.94 mm | 22 AWG | 17.5 AWG | Standard | Female | Free Hanging (In-Line) | Tin | Red |
