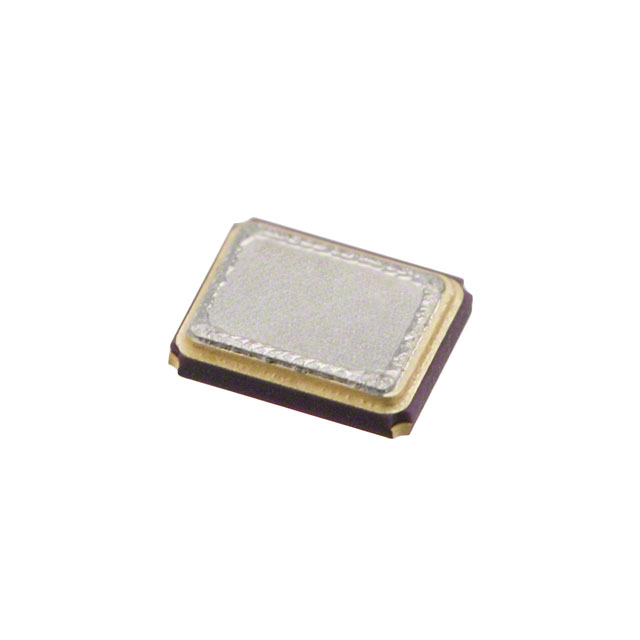

ECX-2236 Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 16MHZ 10PF -20C +70C

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Load Capacitance	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Frequency Tolerance	Frequency Stability	Frequency	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Mounting Type	Operating Mode
ECS Inc. ECS-160-10-36-JTM-TR	0.024 in 0.026 in	0.6 mm 0.65 mm	-20 ░C	70 °C	MHz Crystal	10 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	80 Ohm	20 ppm	20 ppm	16 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-250-8-36-RWN-TR	0.024 in	0.6 mm	-40 C	85 °C	MHz Crystal	8 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	60 Ohms	15 ppm	15 ppm	25 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-120-10-36-AGY-TR	0.024 in	0.6 mm	-30 ░C	85 °C	MHz Crystal	10 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	150 Ohms	25 ppm	30 ppm	12 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-200-10-36-JGN-TR	0.024 in	0.6 mm	-40 C	85 °C	MHz Crystal	10 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	60 Ohms	20 ppm	30 ppm	20 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-192-12-36-AGN-TR	0.024 in	0.6 mm	-40 C	85 °C	MHz Crystal	12 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	80 Ohm	25 ppm	30 ppm	19.2 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-200-8-36-RWN-TR	0.024 in 0.026 in	0.6 mm 0.65 mm	-40 C	85 °C	MHz Crystal	8 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	60 Ohms	15 ppm	15 ppm	20 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-480-10-36-CKL-TR	0.024 in	0.6 mm	-10 °C	70 °C	MHz Crystal	10 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	40 Ohms	10 ppm	10 ppm	48 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-384-8.5-36-CKY-TR	0.024 in	0.6 mm	-30 ░C	85 °C	MHz Crystal	8.5 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	40 Ohms	10 ppm	10 ppm	38.4 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-260-10-36-CKM-TR	0.024 in	0.6 mm	-20 ░C	70 °C	MHz Crystal	10 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	60 Ohms	10 ppm	10 ppm	26 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
ECS Inc. ECS-245.7-8-36CKM	0.024 in 0.026 in	0.6 mm 0.65 mm	-20 ░C	70 °C	MHz Crystal	8 pF	4-SMD No Lead	2.5 mm	0.079 in	0.098 in	2 mm	60 Ohms	10 ppm	10 ppm	24.576 MHz	2	2.5	4-SMD	Surface Mount	Fundamental
