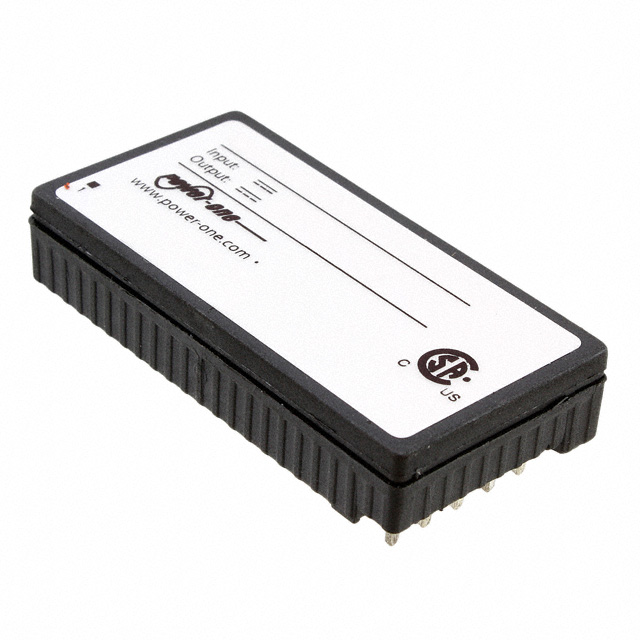

40IMX7 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC DC CONVERTER 15V 15V 7W
| Part | Voltage - Isolation | Number of Outputs | Current - Output (Max) | Power (Watts) | Voltage - Output 1 | Voltage - Input (Max) [Max] | Package / Case | Mounting Type | Voltage - Output 2 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Type | Efficiency | Features | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Input (Min) [Min] | Control Features | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 1.5 kV | 2 | 240 mA | 7 W | 15 V | 75 V | 14-DIP Module 9 Leads | Through Hole | 15 V | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | Isolated Module Conformal Coated | 84 % | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | ITE (Commercial) Railway | 16.8 V | ||||
Bel Fuse Inc. | 1.2 kV | 2 | 7 W | 12 V | 75 V | 14-DIP Module 9 Leads | Through Hole | 12 V | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | Isolated Module Conformal Coated | 84 % | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | ITE (Commercial) Railway | 16.8 V | Active Low Enable | 0.3 A | |||
Bel Fuse Inc. | 1.2 kV | 2 | 240 mA | 7 W | 15 V | 75 V | 14-DIP Module 9 Leads | Through Hole | 15 V | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | Isolated Module Conformal Coated | 84 % | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | ITE (Commercial) Railway | 16.8 V | Active Low Enable | |||
Bel Fuse Inc. | 1.5 kV | 1 | 7 W | 5.1 V | 75 V | 14-DIP Module 9 Leads | Through Hole | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | Isolated Module Conformal Coated | 81 % | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | ITE (Commercial) Railway | 16.8 V | 1.2 A | |||||
 Bel Fuse Inc. | 1.5 kV | 2 | 150 mA | 7 W | 24 V | 75 V | 14-DIP Module 9 Leads | Through Hole | 24 V | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.5 mm | Isolated Module Conformal Coated | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | ITE (Commercial) Railway | 16.8 V | 150 mA | ||||
Bel Fuse Inc. | 1.2 kV | 2 | 7 W | 5 V | 75 V | 14-DIP Module 9 Leads | Through Hole | 5 V | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | Isolated Module Conformal Coated | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | ITE (Commercial) Railway | 16.8 V | Active Low Enable | 700 mA | 700 mA | |||
Bel Fuse Inc. | 1.5 kV | 2 | 7 W | 12 V | 75 V | 14-DIP Module 9 Leads | Through Hole | 12 V | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | Isolated Module Conformal Coated | 84 % | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | ITE (Commercial) Railway | 16.8 V | 0.3 A | ||||
Bel Fuse Inc. | 1.5 kV | 2 | 150 mA | 7 W | 24 V | 75 V | 14-DIP Module 9 Leads | Through Hole | 24 V | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.5 mm | Isolated Module Conformal Coated | OCP OTP OVP Remote On/Off SCP UVLO | 85 °C | -40 C | ITE (Commercial) Railway | 16.8 V | 150 mA |
