PCV Series
Pluggable Terminal Blocks 5 Pos 10.16mm pitch Through Hole Header
Manufacturer: Phoenix Contact
Catalog
Pluggable Terminal Blocks 5 Pos 10.16mm pitch Through Hole Header
Beta
⌘K
Pluggable Terminal Blocks 5 Pos 10.16mm pitch Through Hole Header
Pluggable Terminal Blocks 5 Pos 10.16mm pitch Through Hole Header
Pluggable Terminal Blocks 5 Pos 10.16mm pitch Through Hole Header
| Part | Insulation Height [custom] | Insulation Height [custom] | Material Flammability Rating | Housing Material | Contact Tail Length | Contact Tail Length | Number of Positions | Current - UL | Contact Mating Finish | Pitch | Pitch | Voltage - UL | Current - IEC | Termination Style | Number of Levels | Mounting Type | Voltage - IEC | Positions Per Level | Header Orientation | Type | Color | Positions Per Level [custom] | Contact Tail Length [x] | Contact Tail Length [x] | Insulation Height [z] | Insulation Height [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

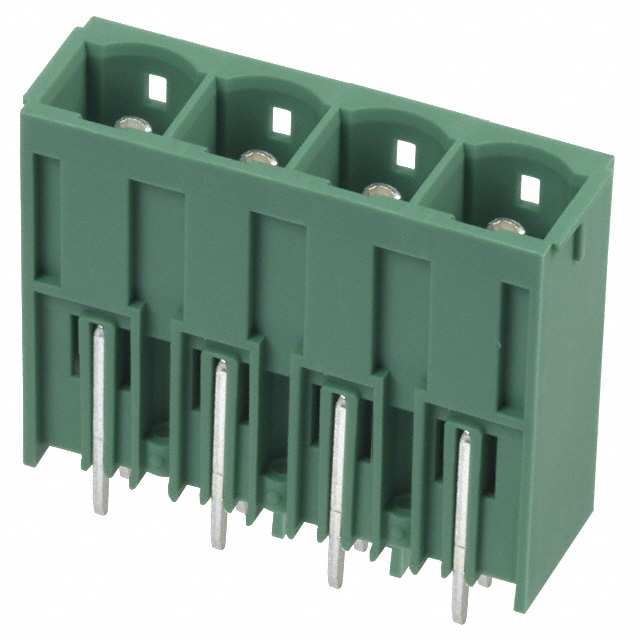

 Phoenix Contact | 34 mm | 1.339 in | UL94 V-0 | Polyamide (PA) Nylon | 0.157 in | 4 mm | 4 | 66 A | Silver | 10.16 mm | 0.4 in | 300 V | 76 A | Solder | 1 | Through Hole | 1 kV | 4 | Vertical | Header Male Pins Shrouded (4 Side) | Green | ||||||

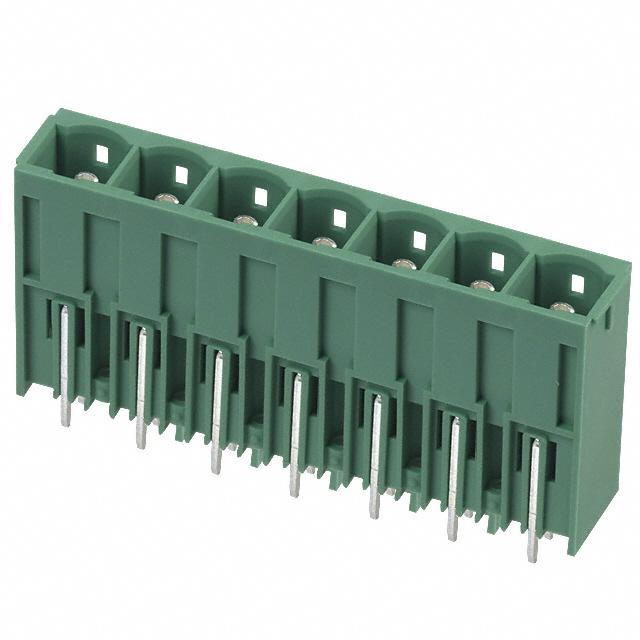

 Phoenix Contact | 34 mm | 1.339 in | UL94 V-0 | Polyamide (PA) Nylon | 0.157 in | 4 mm | 7 | 66 A | Silver | 10.16 mm | 0.4 in | 300 V | 76 A | Solder | 1 | Through Hole | 1 kV | Vertical | Header Male Pins Shrouded (4 Side) | Green | 7 | ||||||

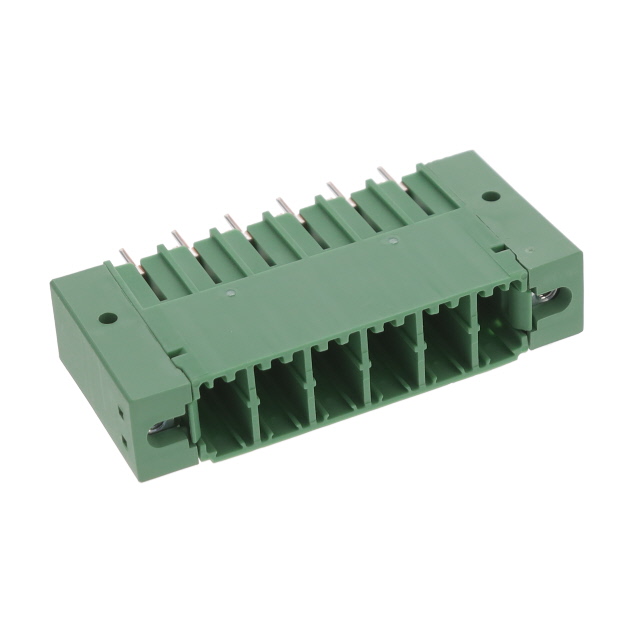

 Phoenix Contact | UL94 V-0 | Polyamide (PA) Nylon | 6 | 41 A | Tin | 7.62 mm | 0.3 in | 300 V | 41 A | Solder | 1 | Through Hole | 1 kV | 6 | Vertical | Header Male Pins Shrouded (4 Side) | Green | 5 mm | 0.197 in | 29.25 mm | 1.152 " | Mating and Mounting Flange | |||||

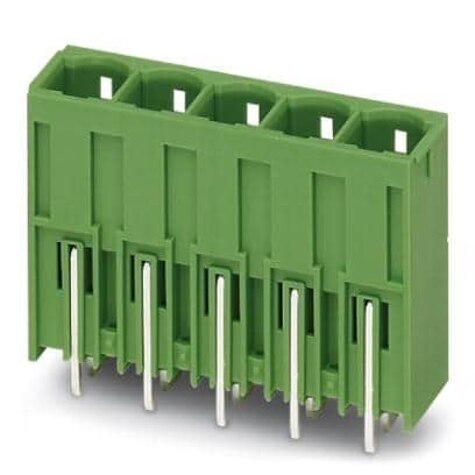

 Phoenix Contact | 34 mm | 1.339 in | UL94 V-0 | Polyamide (PA) Nylon | 0.157 in | 4 mm | 5 | 66 A | Silver | 10.16 mm | 0.4 in | 300 V | 76 A | Solder | 1 | Through Hole | 1 kV | 5 | Vertical | Header Male Pins Shrouded (4 Side) | Green | ||||||

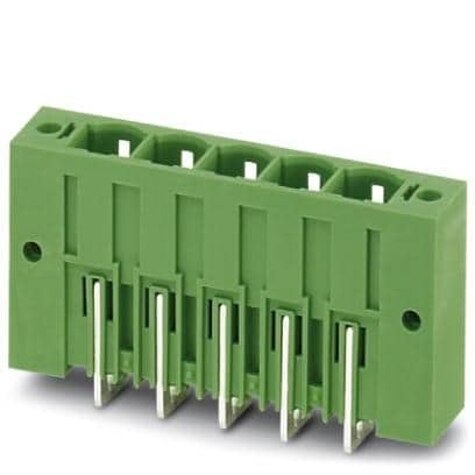

 Phoenix Contact | 34 mm | 1.339 in | UL94 V-0 | Polyamide (PA) Nylon | 0.157 in | 4 mm | 5 | 66 A | Silver | 10.16 mm | 0.4 in | 300 V | 76 A | Solder | 1 | Through Hole | 1 kV | 5 | Vertical | Header Male Pins Shrouded (4 Side) | Green | Mating and Mounting Flange | |||||
 Phoenix Contact | 7 | 41 A | Tin | 7.62 mm | 0.3 in | 300 V | 41 A | Solder | 1 | Through Hole | 1 kV | Vertical | Header Male Pins Shrouded (4 Side) | Green | 7 | Latch Lock | |||||||||||

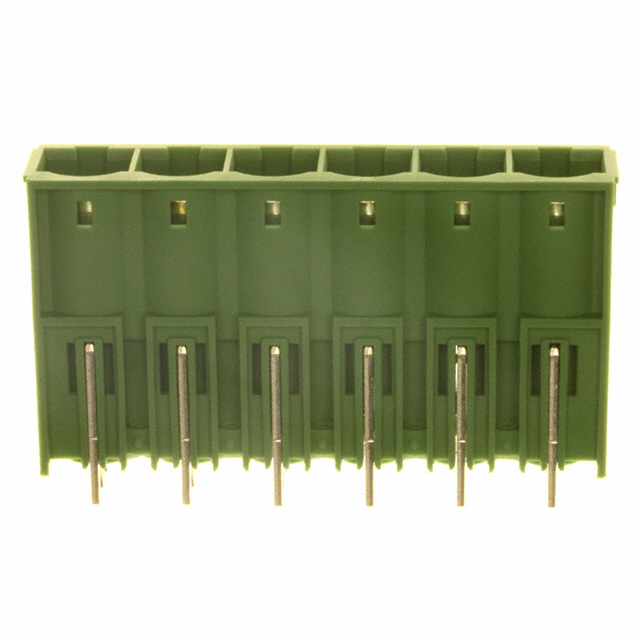

 Phoenix Contact | 34 mm | 1.339 in | UL94 V-0 | Polyamide (PA) Nylon | 0.157 in | 4 mm | 6 | 66 A | Silver | 10.16 mm | 0.4 in | 300 V | 76 A | Solder | 1 | Through Hole | 1 kV | 6 | Vertical | Header Male Pins Shrouded (4 Side) | Green |
