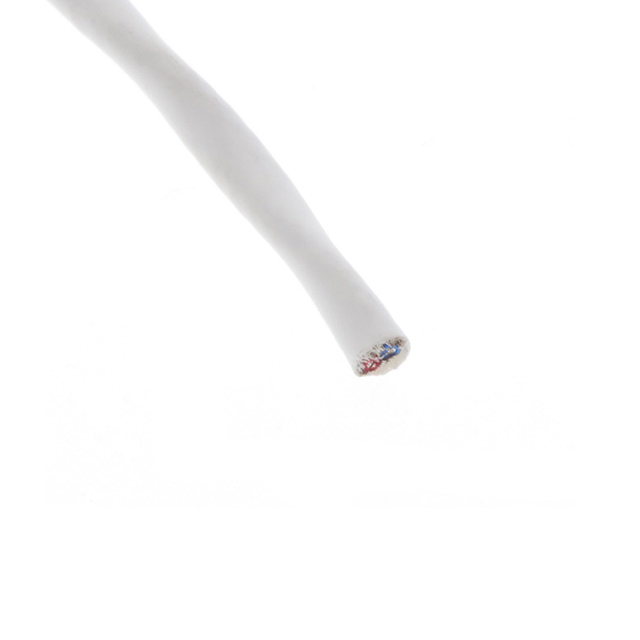

44AM1131 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CABLE 3COND 18AWG WHITE SHLD

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Material	Shield Type	Operating Temperature	Number of Conductors	Cable Type	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Voltage	Shield Material	Wire Gauge	Conductor Strand	Length	Length	Spool Size	Spool Size	Length [x]	Length [x]	Conductor Strand [custom]	Length
TE Connectivity Aerospace, Defense and Marine 44AM1131-18-MST3-9CS2275	4.45 mm	0.175 in	85 %	Copper Tinned	Braid	150 °C	3	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	0.006 in	0.152 mm	19	30 AWG	Polyvinylidene Fluoride (PVDF)	600 V	Copper Tinned	18 AWG
TE Connectivity Aerospace, Defense and Marine 44AM1131-26-0/2/5-9	2.69 mm	0.106 in	85 %	Copper Tinned	Braid	150 °C	3	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	0.005 in	0.127 mm			Polyvinylidene Fluoride (PVDF)	600 V	Copper Tinned	26 AWG	19 38
TE Connectivity Aerospace, Defense and Marine 44AM1131-16-MST3-9CS2275	4.85 mm	0.191 in	85 %	Copper Tinned	Braid	150 °C	3	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	0.006 in	0.152 mm		29 AWG	Polyvinylidene Fluoride (PVDF)	600 V	Copper Silver Coated	16 AWG		1.52 m	5 '	1000 ft	304.8 m	500 '	152.4 m	19 Strands	Enter Number of Feet in Order Quantity
TE Connectivity Aerospace, Defense and Marine 44AM1131-22-9/93/96-9	3.43 mm	0.135 in	85 %	Copper Tinned	Braid	150 °C	3	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	0.005 in	0.127 mm			Polyvinylidene Fluoride (PVDF)	600 V	Copper Tinned	22 AWG	34 AWG			2000 '	609.6 m	2000 ft	609.6 m	19 Strands	Enter Number of Feet in Order Quantity
TE Connectivity Aerospace, Defense and Marine 44AM1131-20-9/93/96-9	3.86 mm	0.152 "	85 %	Copper Tinned	Braid	150 °C	3	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	0.005 in	0.127 mm	19	32 AWG	Polyvinylidene Fluoride (PVDF)	600 V	Copper Tinned	20 AWG

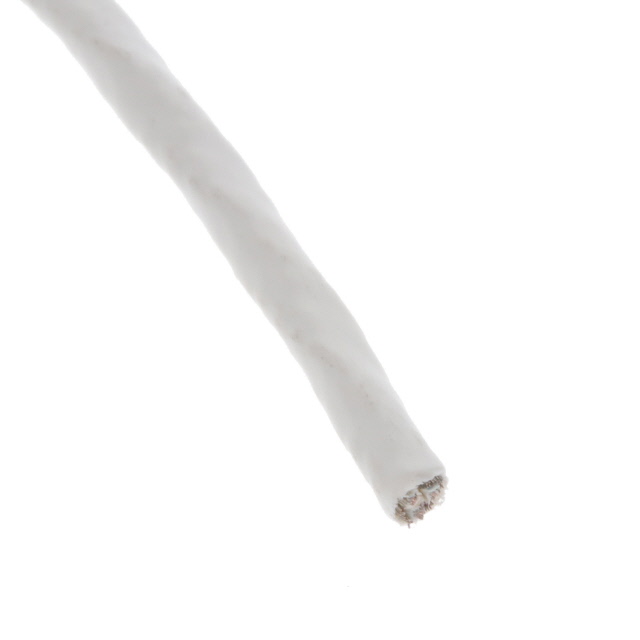

TE Connectivity Aerospace, Defense and Marine 44AM1131-24-MST3-9CS2275	3.02 mm	0.119 in	85 %	Copper Tinned	Braid	150 °C	3	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	0.005 in	0.127 mm			Polyvinylidene Fluoride (PVDF)	600 V	Copper Silver Coated	24 AWG		1.52 m 15.24 m 300 mm	1 ft 5 '	2000 '	609.6 m	25 ft 50 ft 500 '	7.62 m 152.4 m		Enter Number of Feet in Order Quantity
TE Connectivity Aerospace, Defense and Marine 44AM1131-20-MST3-9CS2275	3.86 mm	0.152 "	85 %	Copper Tinned	Braid	150 °C	3	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	0.005 in	0.127 mm	19	32 AWG	Polyvinylidene Fluoride (PVDF)	600 V	Copper Silver Coated	20 AWG		1.52 m 300 mm	1 ft 5 '	5000 '	1524 m	25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m		Enter Number of Feet in Order Quantity

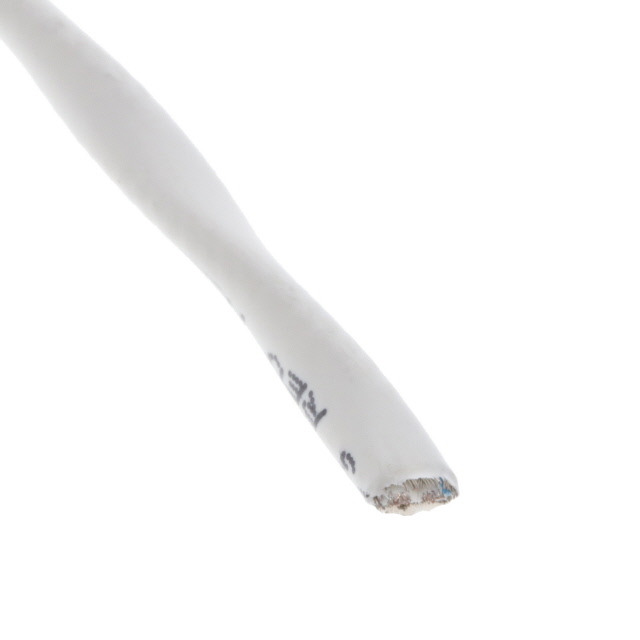

TE Connectivity Aerospace, Defense and Marine 44AM1131-22-MST3-9CS2275	3.43 mm	0.135 in	85 %	Copper Tinned	Braid	150 °C	3	Multi-Conductor	Polyvinylidene Fluoride (PVDF)	0.005 in	0.127 mm			Polyvinylidene Fluoride (PVDF)	600 V	Copper Silver Coated	22 AWG	34 AWG	15.24 m 300 mm	1 ft	2000 '	609.6 m	50 ft 100 ft 500 '	30.5 m 152.4 m	19 Strands	Enter Number of Feet in Order Quantity
