AMP MT EI Series

Headers & Wire Housings BLUE 5 POS STANDRD TYPE RECPT

Manufacturer: TE Connectivity AMP Connectors

Catalog

Headers & Wire Housings BLUE 5 POS STANDRD TYPE RECPT

Catalog

Headers & Wire Housings BLUE 5 POS STANDRD TYPE RECPT

Part	Contact Termination	Number of Rows	Color	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch	Pitch	Contact Type	Connector Type	Mounting Type	Contact Finish - Post	Termination	Contact Shape	Shrouding	Contact Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Voltage Rating	Current Rating (Amps)	Style	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Current Rating (Amps)

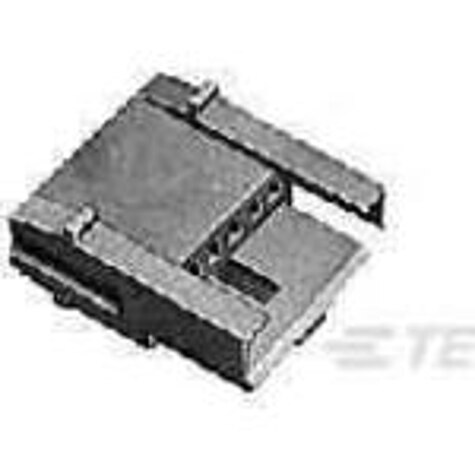

TE Connectivity AMP Connectors 172211-2	Crimp	1	Natural	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	2	2.5 mm	0.098 in	Male Pin	Plug	Free Hanging (In-Line)
TE Connectivity AMP Connectors 4-171822-5	Crimp	1	Blue	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	5	2.5 mm	0.098 in	Female Socket	Receptacle	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-171826-2		1		Nylon 6/6 Polyamide (PA66)			12			Male Pin	Header	Right Angle Through Hole	Tin	Solder	Square	Shrouded - 1 Wall	Brass	2.5 mm	0.098 in	UL94 V-0	Latch Holder	31.5 µin	0.8 µm	All	0.264 in	6.7 mm	250 VAC 350 VDC	2 A	Board to Cable/Wire	Natural	7.49 mm	0.295 in	0.142 in	3.6 mm
TE Connectivity AMP Connectors 172211-6	Crimp	1	Natural	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	6	2.5 mm	0.098 in	Male Pin	Plug	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-172211-0	Crimp	1	Natural	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	10	2.5 mm	0.098 in	Male Pin	Plug	Free Hanging (In-Line)
TE Connectivity AMP Connectors 171825-6		1		Nylon 6/6 Polyamide (PA66)			6			Male Pin	Header	Through Hole	Tin	Solder	Square	Shrouded - 1 Wall	Brass	2.5 mm	0.098 in	UL94 V-0	Latch Holder	31.5 µin	0.8 µm	All	0.409 in	10.4 mm	250 VAC 350 VDC	2 A	Board to Cable/Wire	Natural	7.49 mm	0.295 in	0.142 in	3.6 mm	14 mm	0.551 in
TE Connectivity AMP Connectors 171822-4	Crimp	1	Natural	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	4	2.5 mm	0.098 in	Female Socket	Receptacle	Free Hanging (In-Line)
TE Connectivity AMP Connectors 171826-5		1		Nylon 6/6 Polyamide (PA66)			5			Male Pin	Header	Right Angle Through Hole	Tin	Solder	Square	Shrouded - 1 Wall	Brass	2.5 mm	0.098 in	UL94 V-0	Latch Holder	31.5 µin	0.8 µm	All	0.264 in	6.7 mm	250 VAC 350 VDC	2 A	Board to Cable/Wire	Natural	7.49 mm	0.295 in	0.142 in	3.6 mm

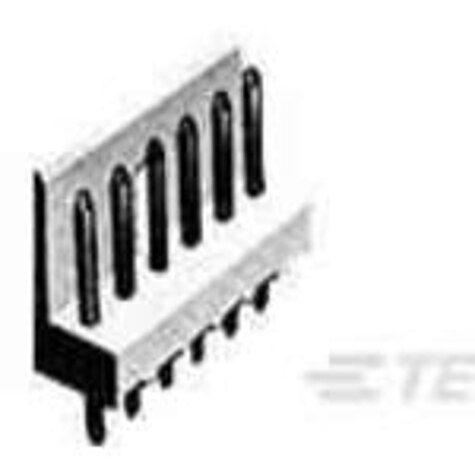

TE Connectivity AMP Connectors 172732-6		1		Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	6			Male Pin	Header	Through Hole	Tin	Kinked Pin Solder	Square	Shrouded - 1 Wall	Brass	2.5 mm	0.098 in	UL94 V-0	Latch Holder			All	0.409 in	10.4 mm	250 VAC 350 VDC		Board to Cable/Wire	Natural	7.49 mm	0.295 in	0.142 in	3.6 mm	14 mm	0.551 in	Varies by Wire Gauge
