PRPN242 Series

Catalog

CONN HEADER R/A 48POS 2MM

Part	Number of Positions	Contact Length - Post [custom]	Contact Length - Post	Mounting Type	Style	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Finish - Mating	Contact Shape	Insulation Color	Number of Rows [custom]	Shrouding	Termination	Contact Material	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Connector Type	Contact Finish Thickness - Post	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height
Sullins Connector Solutions PRPN242PARN	48	0.11 in	2.79 mm	Right Angle Through Hole	Board to Board Cable	Male Pin	0.079 "	2 mm	Gold	All	Gold	Square	Black	2	Unshrouded	Solder	Brass	Flash	2 mm	0.079 in	UL94 V-0	Header	Flash	Push-Pull	4 mm	0.157 in	4 mm	0.157 in	Polyester	-40 C	105 ░C

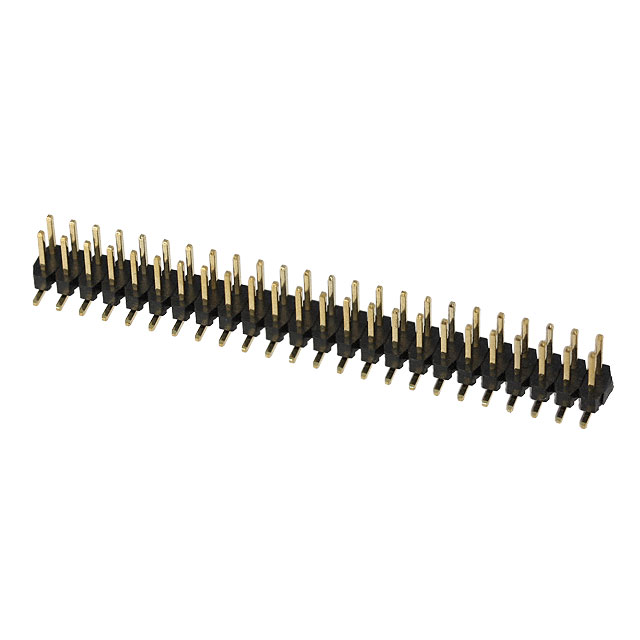

Sullins Connector Solutions PRPN242MAMS	48			Surface Mount	Board to Board Cable	Male Pin	0.079 "	2 mm	Gold	All	Gold	Square	Black	2	Unshrouded	Solder	Brass	Flash	2 mm	0.079 in	UL94 V-0	Header	Flash	Push-Pull	4 mm	0.157 in			Polyester	-40 C	105 ░C	0.059 in	1.5 mm
