TPSM63603 Series

High-density, 3-V to 36-V input, 1-V to 16-V output, 3-A power module

Catalog

High-density, 3-V to 36-V input, 1-V to 16-V output, 3-A power module

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output (Max) [Max]	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Control Features	Number of Outputs	Voltage - Output 1

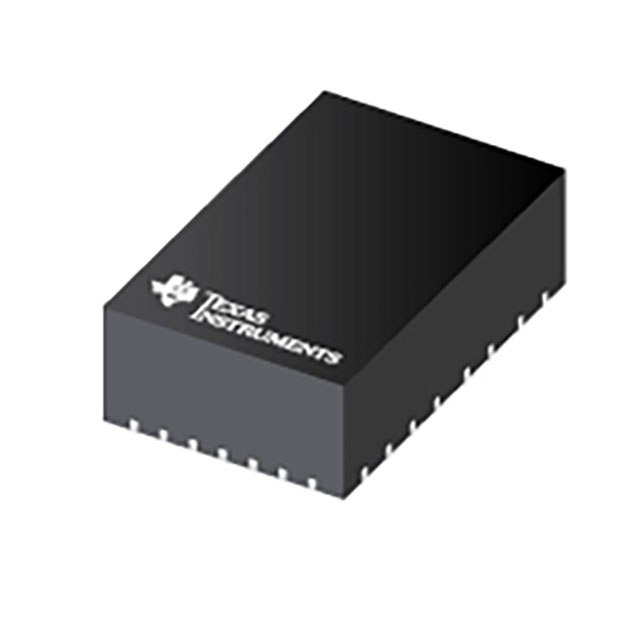

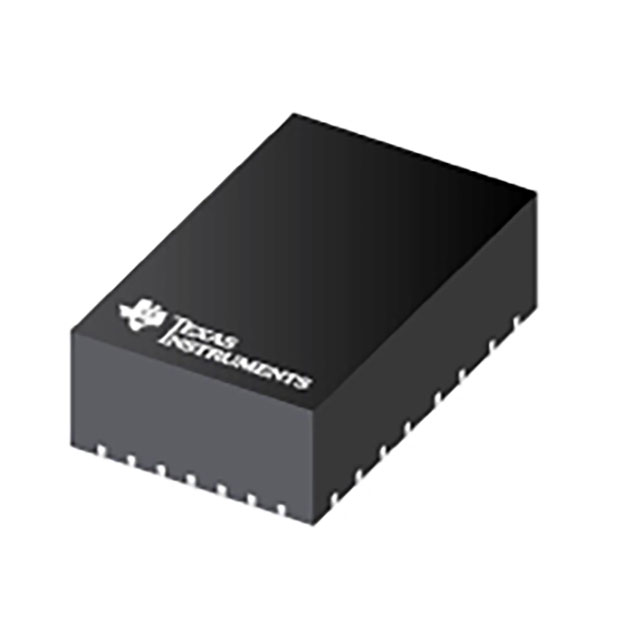

Texas Instruments TPSM63603RDHR	16 V	1 V	30-PowerQFN Module	3 V	ITE (Commercial)	36 V	94.1 %	Adjustable Output Remote On/Off	125 °C	-40 °C	Surface Mount	3 A	Non-Isolated PoL Module	6 mm	1.8 mm	0.07 "	4 mm	0.16 in	0.24 in	30-B0QFN (4x6)	Active High Enable	1
Texas Instruments TPSM63603SRDHR	16 V	1 V	30-PowerQFN Module	3 V	ITE (Commercial)	36 V	94.1 %	Adjustable Output Remote On/Off	125 °C	-40 °C	Surface Mount	3 A	Non-Isolated PoL Module	6 mm	1.8 mm	0.07 "	4 mm	0.16 in	0.24 in	30-B0QFN (4x6)		1

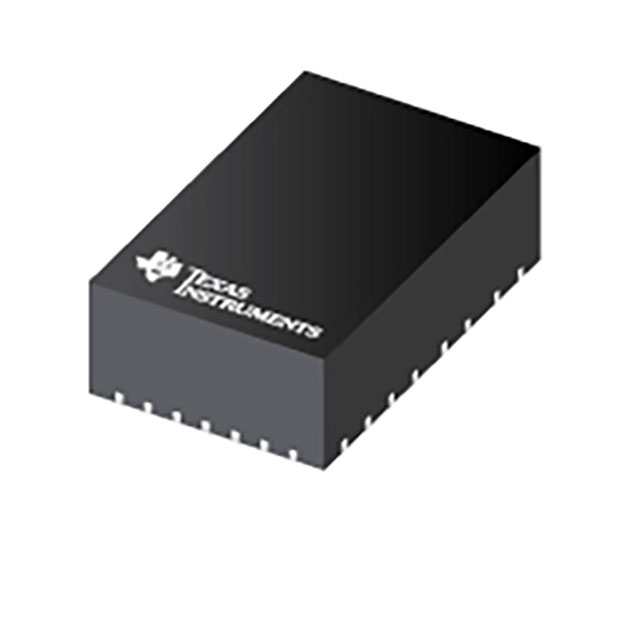

Texas Instruments TPSM63603V5RDHR			30-PowerQFN Module	3 V	ITE (Commercial)	36 V	94.1 %	Adjustable Output Remote On/Off Standby Output	125 °C	-40 °C	Surface Mount	3 A	Non-Isolated PoL Module	4 mm	1.9 mm	0.07 "	6 mm	0.24 "	0.16 in	30-B0QFN (4x6)	Active High Enable	1	5 V

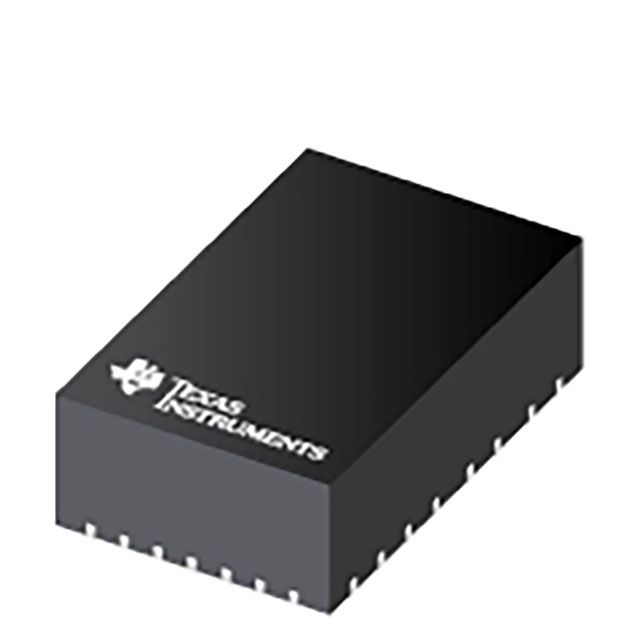

Texas Instruments TPSM63603V3RDHR			30-PowerQFN Module	3 V	ITE (Commercial)	36 V	94.1 %	Adjustable Output Remote On/Off Standby Output	125 °C	-40 °C	Surface Mount	3 A	Non-Isolated PoL Module	4 mm	1.9 mm	0.07 "	6 mm	0.24 "	0.16 in	30-B0QFN (4x6)	Active High Enable	1	3.3 V

Catalog

High-density, 3-V to 36-V input, 1-V to 16-V output, 3-A power module

Key Features

• Versatile synchronous buck DC/DC moduleIntegrated MOSFETs, inductor, and controllerWide input voltage range of 3 V to 36 VAdjustable output voltage from 1 V to 16 V4-mm × 6-mm × 1.8-mm overmolded package–40°C to 125°C junction temperature rangeFrequency adjustable from 200 kHz to 2.2 MHz using the RT pin or an external SYNC signalNegative output voltage capabilityUltra-high efficiency across the full load range93% peak efficiency at 12 VIN, 5 VOUT,1 MHzExternal bias option for improved efficiencyShutdown quiescent current of 0.6 µA (typical)Ultra-low conducted and radiated EMI signaturesLow-noise package with dual input paths and integrated capacitors reduces switch ringingSpread-spectrum modulation (S suffix)Resistor-adjustable switch-node slew rateConstant-frequency FPWM mode of operationMeets CISPR 11 and 32 class B emissionsSuitable for scalable power suppliesPin compatible with theTPSM63602(36 V, 2 A)Inherent protection features for robust designPrecision enable input and open-drain PGOOD indicator for sequencing, control, and VINUVLOOvercurrent and thermal shutdown protectionsCreate a custom design using the TPSM63603 with theWEBENCH Power DesignerVersatile synchronous buck DC/DC moduleIntegrated MOSFETs, inductor, and controllerWide input voltage range of 3 V to 36 VAdjustable output voltage from 1 V to 16 V4-mm × 6-mm × 1.8-mm overmolded package–40°C to 125°C junction temperature rangeFrequency adjustable from 200 kHz to 2.2 MHz using the RT pin or an external SYNC signalNegative output voltage capabilityUltra-high efficiency across the full load range93% peak efficiency at 12 VIN, 5 VOUT,1 MHzExternal bias option for improved efficiencyShutdown quiescent current of 0.6 µA (typical)Ultra-low conducted and radiated EMI signaturesLow-noise package with dual input paths and integrated capacitors reduces switch ringingSpread-spectrum modulation (S suffix)Resistor-adjustable switch-node slew rateConstant-frequency FPWM mode of operationMeets CISPR 11 and 32 class B emissionsSuitable for scalable power suppliesPin compatible with theTPSM63602(36 V, 2 A)Inherent protection features for robust designPrecision enable input and open-drain PGOOD indicator for sequencing, control, and VINUVLOOvercurrent and thermal shutdown protectionsCreate a custom design using the TPSM63603 with theWEBENCH Power Designer

Description

The TPSM63603 synchronous buck power module is a highly integrated 36-V, 3-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an Enhanced HotRod™ QFN package. The module has pins for VIN and VOUT located at the corners of the package for optimized input and output capacitor layout placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing. With an output voltage from 1 V to 16 V, the TPSM63603 is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process. Although designed for small size and simplicity in space-constrained applications, the TPSM63603 module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate and spread spectrum option for improved EMI, integrated VCC, bootstrap and input capacitors for increased reliability and higher density, constant switching frequency over the full load current range, and a PGOOD indicator for sequencing, fault protection, and output voltage monitoring. The TPSM63603 synchronous buck power module is a highly integrated 36-V, 3-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an Enhanced HotRod™ QFN package. The module has pins for VIN and VOUT located at the corners of the package for optimized input and output capacitor layout placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing. With an output voltage from 1 V to 16 V, the TPSM63603 is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process. Although designed for small size and simplicity in space-constrained applications, the TPSM63603 module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate and spread spectrum option for improved EMI, integrated VCC, bootstrap and input capacitors for increased reliability and higher density, constant switching frequency over the full load current range, and a PGOOD indicator for sequencing, fault protection, and output voltage monitoring.
