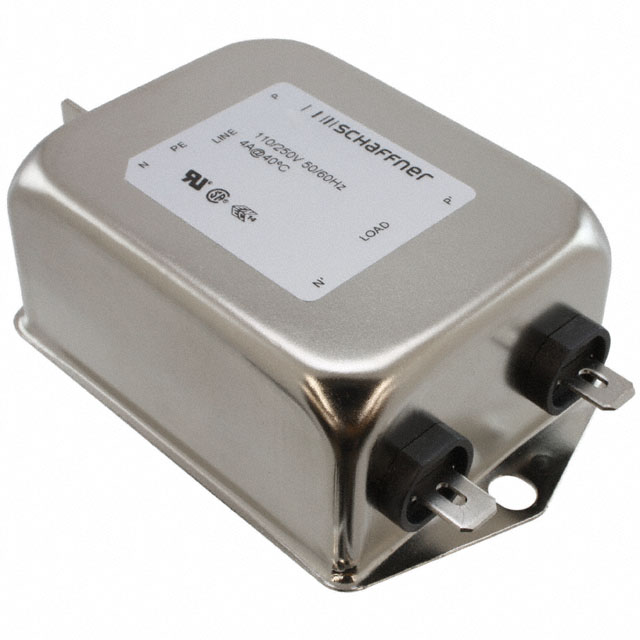

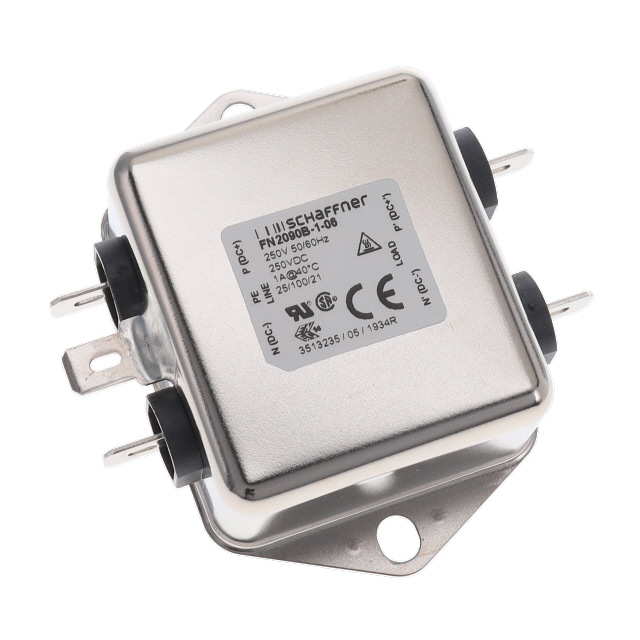

Schaffner FN2090 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
LINE FILTER 250VDC/VAC 6A CHASS
| Part | Current | Approval Agency | Inductance | Voltage - Rated AC | Filter Type | Configuration | Termination Style | Frequency - Operating | Voltage - Rated DC | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Operating [Min] | Frequency - Operating [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 6 A | CE CSA ENEC UR | 8 mH | 250 V | Single Phase | Two Stage | Quick Connect | DC ~ 400Hz | 250 V | General Purpose | Chassis Mount | 100 °C | -25 °C | ||
 TE Connectivity AMP Connectors | 8 A | CE CSA ENEC UKCA UR | 250 V | Three Phase (Wye) | Two Stage | Wire Leads | DC ~ 400Hz | 250 V | Medical | Chassis Mount | 100 °C | -25 °C | |||
 TE Connectivity AMP Connectors | 30 A | CE CSA ENEC UR | 1.5 mH | 250 V | Single Phase | Two Stage | Threaded Post (M4) | DC ~ 400Hz | 250 V | General Purpose | Chassis Mount | 100 °C | -25 °C | ||
 TE Connectivity AMP Connectors | 1 A | CSA ENEC UL | 20 mH | 250 V | Single Phase | Two Stage | Quick Connect | Medical | Chassis Mount | 100 °C | -20 ░C | 50 Hz | 60 Hz | ||
 TE Connectivity AMP Connectors | 6 A | CE CSA ENEC UR | 8 mH | 110 V 250 V | Single Phase | Two Stage | Quick Connect | DC ~ 400Hz | Safety | Chassis Mount | 100 °C | -20 ░C | |||
TE Connectivity AMP Connectors | 20 A | CE CSA ENEC UR | 2.7 mH | 110 V 250 V | Single Phase | Two Stage | Quick Connect | DC ~ 400Hz | General Purpose | Chassis Mount | 100 °C | -20 ░C | |||
 TE Connectivity AMP Connectors | 12 A | CE CSA ENEC UR | 4 mH | 250 V | Single Phase | Two Stage | Threaded Post (M4) | DC ~ 400Hz | 250 V | General Purpose | Chassis Mount | 100 °C | -25 °C | ||
TE Connectivity AMP Connectors | 6 A | CE CSA ENEC UKCA UR | 8 mH | 250 V | Single Phase | Two Stage | Wire Leads | 250 V | General Purpose | Chassis Mount | 100 °C | -25 °C | 50 Hz | 60 Hz | |
TE Connectivity AMP Connectors | 3 A | CE CSA ENEC UR | 14 mH | 110 V 250 V | Single Phase | Two Stage | Quick Connect | DC ~ 400Hz | General Purpose | Chassis Mount | 100 °C | -20 ░C | |||
 TE Connectivity AMP Connectors | 3 A | CE CSA ENEC UR | 14 mH | 250 V | Single Phase | Two Stage | Quick Connect | DC ~ 400Hz | 250 V | General Purpose | Chassis Mount | 100 °C | -25 °C |
