BZV55B Series

Manufacturer: Taiwan Semiconductor Corporation

Catalog

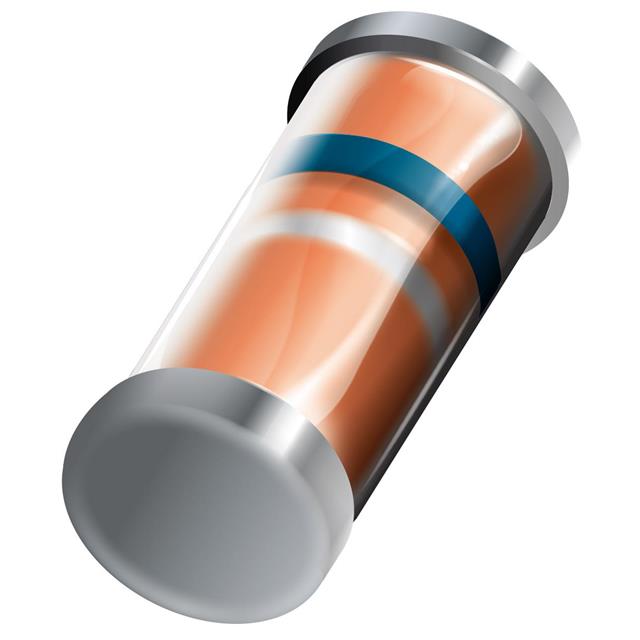

DIODE ZENER 22V 500MW MINI MELF

Part	Power - Max [Max]	Voltage - Forward (Vf) (Max) @ If	Impedance (Max) (Zzt) [Max]	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Zener (Nom) (Vz)	Impedance (Max) (Zzt)
Taiwan Semiconductor Corporation BZV55B22	500 mW	1 V	55 Ohms	DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	100 nA	Surface Mount	22 V
Taiwan Semiconductor Corporation BZV55B36 L0G	500 mW	1 V		DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	100 nA	Surface Mount	36 V
Taiwan Semiconductor Corporation BZV55B3V9	500 mW	1 V	85 Ohms	DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	2 µA	Surface Mount	3.9 V
Taiwan Semiconductor Corporation BZV55B39 L0G	500 mW	1 V	90 Ohms	DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	100 nA	Surface Mount	39 V
Taiwan Semiconductor Corporation BZV55B3V3	500 mW	1 V	85 Ohms	DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	2 µA	Surface Mount	3.3 V
Taiwan Semiconductor Corporation BZV55B3V3 L1G	500 mW	1 V	85 Ohms	DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	2 µA	Surface Mount	3.3 V
Taiwan Semiconductor Corporation BZV55B12 L0G	500 mW	1 V	20 Ohms	DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	100 nA	Surface Mount	12 V
Taiwan Semiconductor Corporation BZV55B51	500 mW	1 V	125 Ohms	DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	100 nA	Surface Mount	51 V
Taiwan Semiconductor Corporation BZV55B11 L0G	500 mW	1 V	20 Ohms	DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	100 nA	Surface Mount	11 V
Taiwan Semiconductor Corporation BZV55B10	500 mW	1 V		DO-213AC MINI-MELF SOD-80	Mini MELF	175 °C	-65 C	2 %	100 nA	Surface Mount	10 V	15 Ohms
