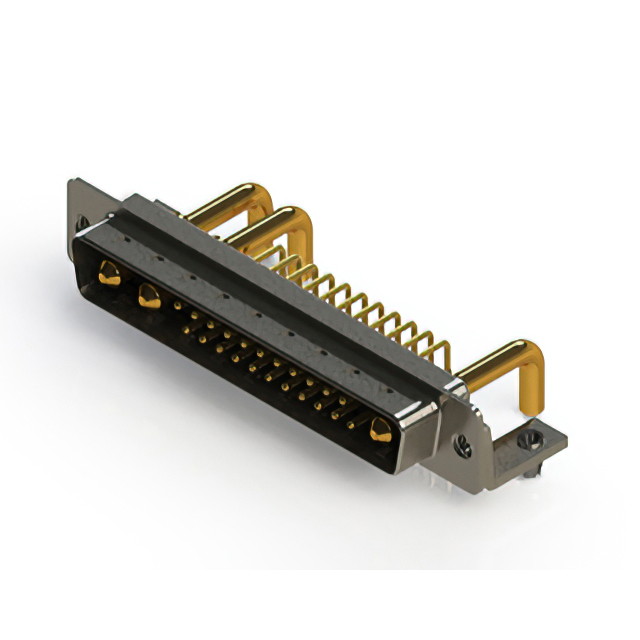

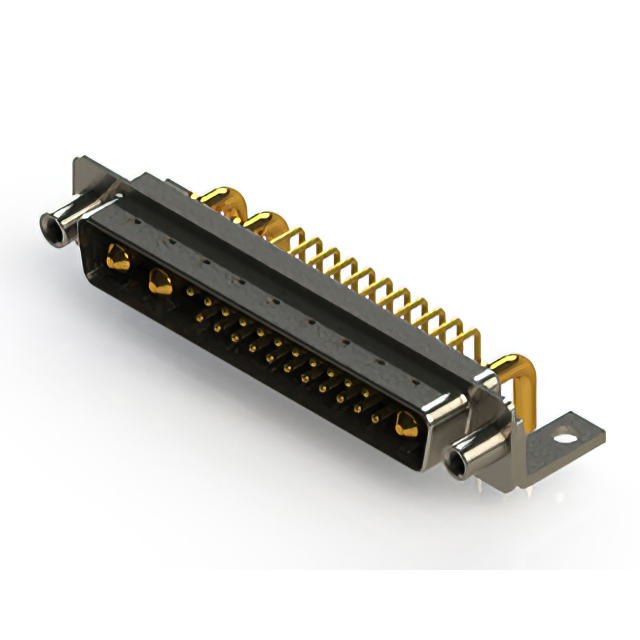

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-25W3, PLUG, 25 CONTACTS, 22 SIGNAL, 3 POWER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Color | Dielectric Material | Flange Feature | Number of Rows [custom] | Features | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Contact Finish | Contact Type | Material Flammability Rating | Mounting Type | Connector Type | Backset Spacing | Backset Spacing | Termination | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Contact Finish Thickness | Shell Material, Finish | Current Rating (Amps) | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | Housing/Shell (M3) | 2 | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | 20A 5A | Flash | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | Board Side (M3) | 2 | Grounding Indents | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | Flash | Nickel Plated Steel | 5 A 30 A | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | Housing/Shell | 2 | Grounding Indents Mounting Brackets | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | Nickel Plated Steel | 5 A 30 A | 4-40 | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | Housing/Shell (M3) | 2 | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | 20A 5A | Flash | |||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | Housing/Shell (Unthreaded) | 2 | Grounding Indents Shielded | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | 5 A 30 A | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | Housing/Shell | 2 | Grounding Indents Mounting Brackets | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | 10A 5A | Flash | 4-40 | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | 4-40 | 2 | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | 10A 5A | Flash | |||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | 4-40 | 2 | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | 5 A 30 A | 30 Áin | 0.76 Ám | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | Housing/Shell (M3) | 2 | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | Flash | Nickel Plated Steel | 5 A 30 A | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | 125 VDC | Black | Polyester Thermoplastic | M3 | 2 | Grounding Indents Mounting Brackets | Combo D-Sub | (DC C) - 25W3 | 4 | Gold | Signal and Power | UL94 V-0 | Right Angle Through Hole | Plug Male Pins | 9.4 mm | 0.37 in | Solder | 3 | 22 | 20A 5A | Flash |
