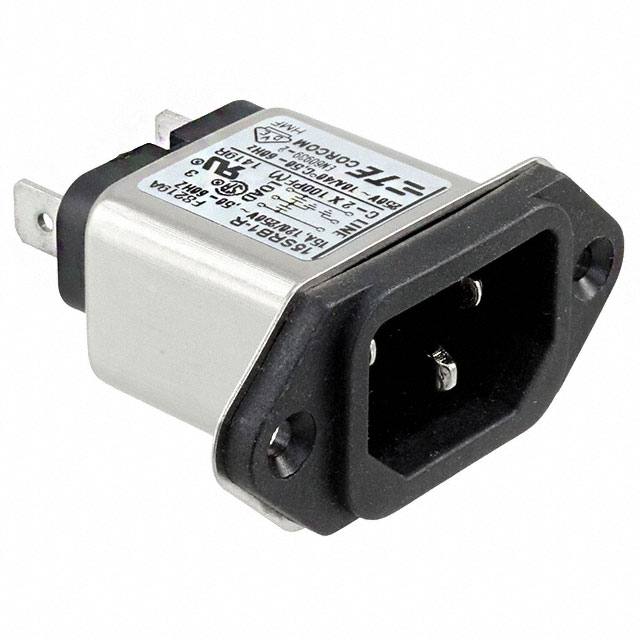

6609987 Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Features	Filter Type	Current Rating - Appliance Inlet	Termination	Termination	Termination	Connector Type	Panel Cutout Dimensions	Approval Agency	Connector Style	Mounting Type	Current Rating - Filter	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
TE Connectivity Corcom Filters 6609987-5	120 VAC	250 VAC	Front or Rear Side Mount Shielded	Filtered (EMI RFI) - Commercial	15 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Variable Size	CSA UL VDE	IEC 320-C14	Flange Panel Mount	15 A

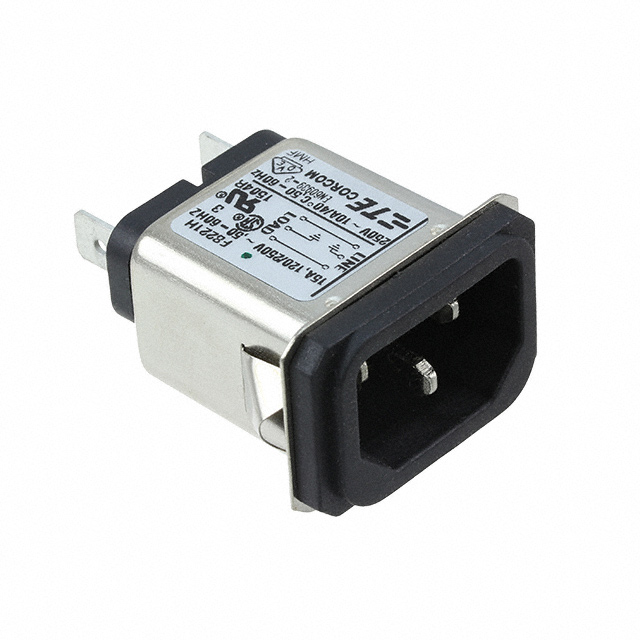

TE Connectivity Corcom Filters 2-6609987-7	120 VAC	250 VAC	Shielded	Filtered (EMI RFI) - Commercial	15 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Variable Size	CSA UL VDE	IEC 320-C14	Panel Mount Snap-In	15 A	0.031 "	0.79 mm	1.73 mm	0.068 "
TE Connectivity Corcom Filters 3-6609987-7	120 VAC	250 VAC	Shielded	Filtered (EMI RFI) - Commercial	15 A		Solder		Receptacle Male Blades	Variable Size	CSA UL VDE	IEC 320-C14	Panel Mount Flange Through Hole Right Angle	15 A	0.031 "	0.79 mm	1.73 mm	0.068 "
TE Connectivity Corcom Filters 4-6609987-7	120 VAC	250 VAC	Shielded	Filtered (EMI RFI) - Commercial	15 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades		CSA UL VDE	IEC 320-C14	Flange Panel Mount Right Angle	15 A					30.48 mm	22.86 mm
TE Connectivity Corcom Filters 6609987-2	120 VAC	250 VAC	Front or Rear Side Mount Shielded	Filtered (EMI RFI) - Commercial	15 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Variable Size	CSA UL VDE	IEC 320-C14	Flange Panel Mount	15 A

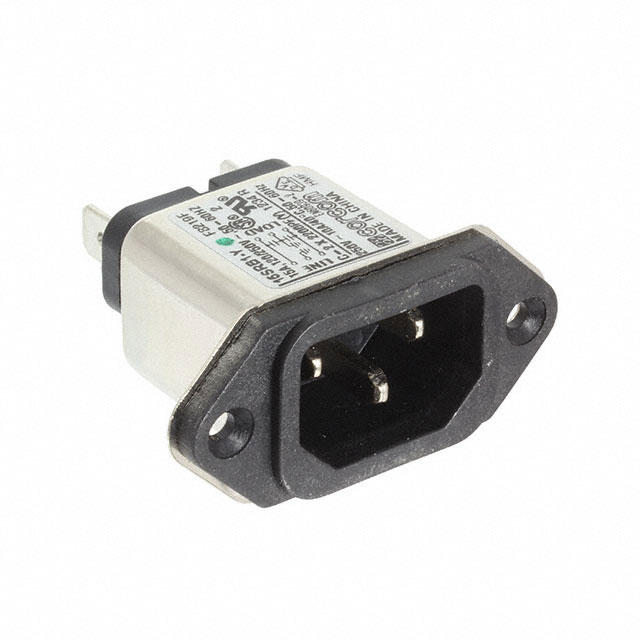

TE Connectivity Corcom Filters 6609987-7	120 VAC	250 VAC	Front or Rear Side Mount Shielded	Filtered (EMI RFI) - Commercial	15 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Variable Size	CSA UL VDE	IEC 320-C14	Flange Panel Mount	15 A
TE Connectivity Corcom Filters 3-6609987-9	120 VAC	250 VAC	Shielded	Filtered (EMI RFI) - Commercial	15 A		Solder		Receptacle Male Blades		CSA UL VDE	IEC 320-C14	Panel Mount Flange Through Hole Right Angle	15 A					30.48 mm	22.86 mm

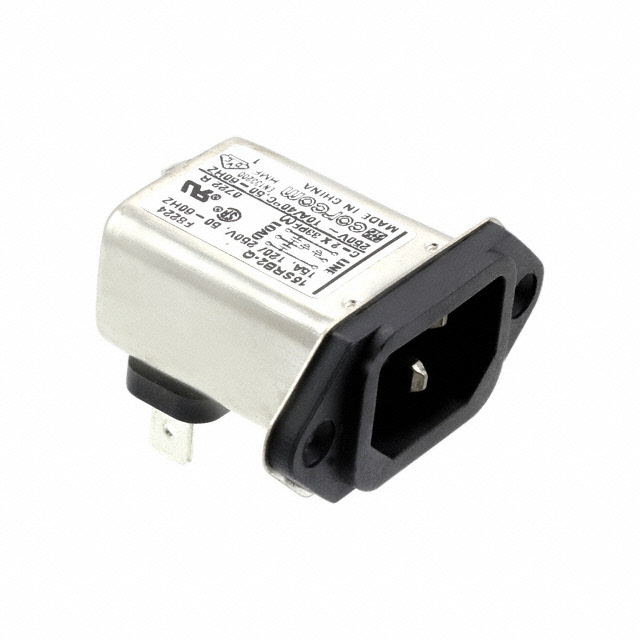

TE Connectivity Corcom Filters 4-6609987-6	120 VAC	250 VAC	Shielded	Filtered (EMI RFI) - Commercial	15 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades		CSA UL VDE	IEC 320-C14	Flange Panel Mount Right Angle	15 A					30.48 mm	22.86 mm
TE Connectivity Corcom Filters 6609987-9	120 VAC	250 VAC	Front or Rear Side Mount Shielded	Filtered (EMI RFI) - Commercial	15 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Variable Size	CSA UL VDE	IEC 320-C14	Flange Panel Mount	15 A
TE Connectivity Corcom Filters 2-6609987-1	120 VAC	250 VAC	Shielded	Filtered (EMI RFI) - Commercial	15 A	6.3 mm	Quick Connect	0.25 "	Receptacle Male Blades	Variable Size	CSA UL VDE	IEC 320-C14	Panel Mount Snap-In	15 A	0.031 "	0.79 mm	1.73 mm	0.068 "
