1705-0 Series

Catalog

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall	Length - Overall	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination

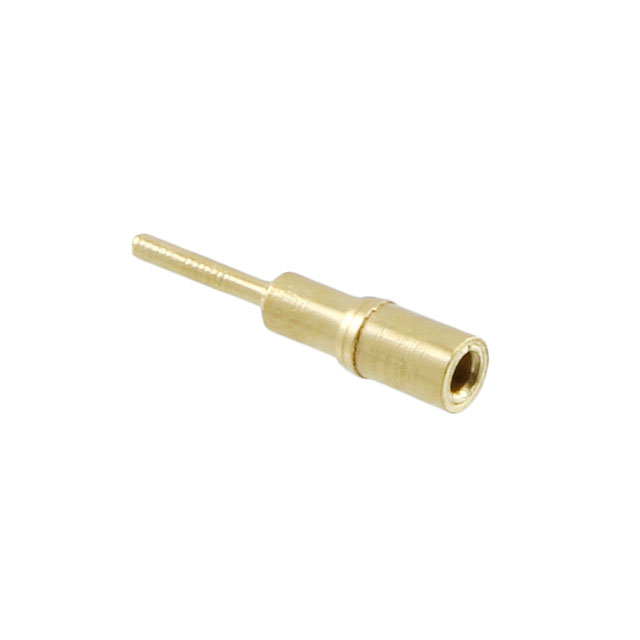

Mill-Max Manufacturing Corp. 1705-0-15-15-30-27-04-0	-55 C	125 °C	Standard Tail	0.51 mm	0.02 in	Gold	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	0.29 in	7.37 mm	Beryllium Copper	1.45 mm	0.057 in	Press-Fit
Mill-Max Manufacturing Corp. 1705-0-15-80-30-09-04-0	-55 C	125 °C	Standard Tail	0.51 mm	0.02 in				0.64 mm	0.015 "	0.025 in	0.38 mm	0.29 in	7.37 mm	Beryllium Copper	1.45 mm	0.057 in	Press-Fit
Mill-Max Manufacturing Corp. 1705-0-15-01-30-27-04-0	-55 C	125 °C	Standard Tail	0.51 mm	0.02 in	Gold	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	0.29 in	7.37 mm	Beryllium Copper	1.45 mm	0.057 in	Press-Fit
Mill-Max Manufacturing Corp. 1705-0-15-80-30-14-04-0	-55 C	125 °C	Standard Tail	0.51 mm	0.02 in	Gold	10 Áin	0.25 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	0.29 in	7.37 mm	Beryllium Copper	1.45 mm	0.057 in	Press-Fit
Mill-Max Manufacturing Corp. 1705-0-15-15-30-14-04-0	-55 C	125 °C	Standard Tail	0.51 mm	0.02 in	Gold	10 Áin	0.25 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	0.29 in	7.37 mm	Beryllium Copper	1.45 mm	0.057 in	Press-Fit
