SDI24 Series

Desktop AC Adapters 22.5W 9V 2.5A C14 no cable 2.1x5.5 RA

Manufacturer: CUI Inc.

Catalog

Desktop AC Adapters 22.5W 9V 2.5A C14 no cable 2.1x5.5 RA

Catalog

Desktop AC Adapters 22.5W 9V 2.5A C14 no cable 2.1x5.5 RA

...

Part	No Load Power Consumption	Efficiency	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Cord Length	Cord Length	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Form	Standard Number	Region Utilized	Voltage - Output	Output Connector [custom]	Output Connector	Output Connector [custom]	Output Connector [custom]	Approval Agency	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector [z]

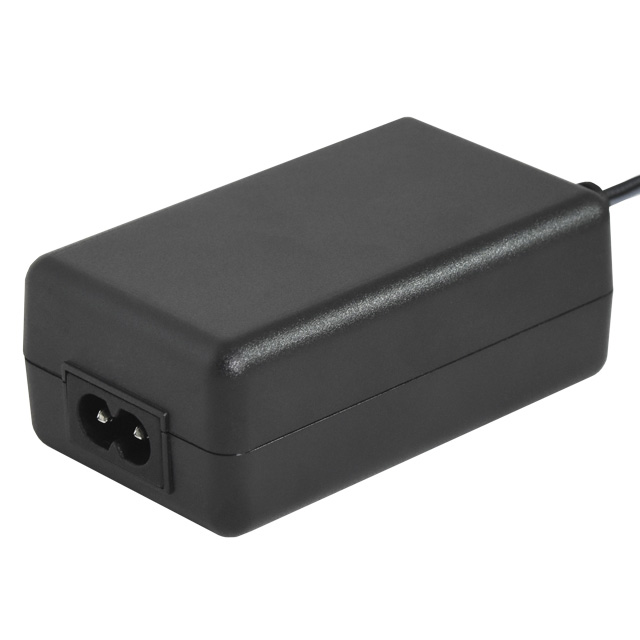

CUI Inc. SDI24-48-UD-P5R	75 mW	CoC Tier 2 Level VI	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C8	24 W	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class II)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	International	48 V	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	500 mA

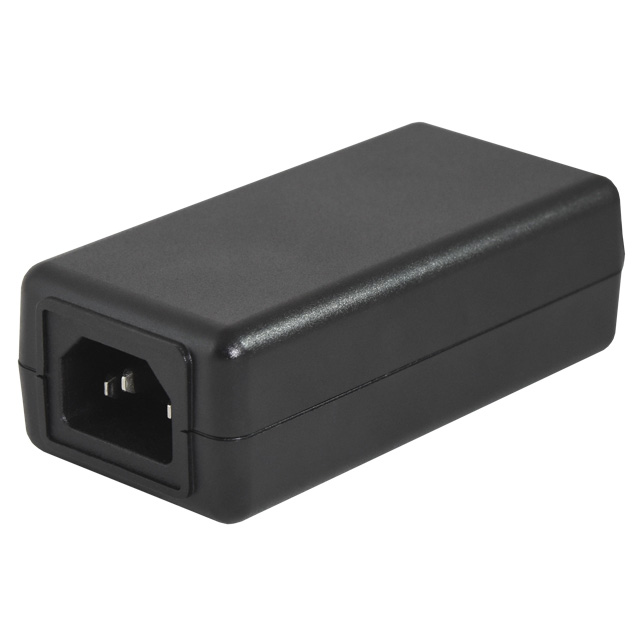

CUI Inc. SDI24-9-U-P5	75 mW	CoC Tier 2 Level VI	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C14	23 Watts	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	International	9 V		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	2.5 A	2.1 mm 5.5 mm	9.5 mm
CUI Inc. SDI24-9-UC-P5R	75 mW	CoC Tier 2 Level VI	Cord	264 VAC	90 VAC	IEC 320-C14	23 Watts	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	9 V	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	CB Scheme CCC CSA EN FCC IEC PSE UL	2.5 A
CUI Inc. SDI24-48-U2-P5	75 mW	CoC Tier 2 Level VI	Cord	264 VAC	90 VAC	IEC 320-C14	24 W	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Europe	48 V		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	500 mA	2.1 mm 5.5 mm	9.5 mm
CUI Inc. SDI24-12-U2-P6R	75 mW	CoC Tier 2 Level VI	Cord	264 VAC	90 VAC	IEC 320-C14	24 W	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Europe	12 V		Barrel Plug R/A			CB Scheme CCC CSA EN FCC IEC PSE UL	2 A	2.5 mm 5.5 mm		9.5 mm
CUI Inc. SDI24-24-UC-P6	75 mW	CoC Tier 2 Level VI	Cord	264 VAC	90 VAC	IEC 320-C14	24 W	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	24 V		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	1 A	2.5 mm 5.5 mm	9.5 mm
CUI Inc. SDI24-48-UC-P6	75 mW	CoC Tier 2 Level VI	Cord	264 VAC	90 VAC	IEC 320-C14	24 W	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	48 V		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	500 mA	2.5 mm 5.5 mm	9.5 mm
CUI Inc. SDI24-48-UDC-P5	75 mW	CoC Tier 2 Level VI	Cord	264 VAC	90 VAC	IEC 320-C8	24 W	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class II)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	48 V		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE RCM UL	500 mA	2.1 mm 5.5 mm	9.5 mm
CUI Inc. SDI24-12-UC-P6	75 mW	CoC Tier 2 Level VI	Cord	264 VAC	90 VAC	IEC 320-C14	24 W	100 mm	1.3 in	33 mm	1.97 in	3.94 in	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	12 V		Barrel Plug			CB Scheme CCC CSA EN FCC IEC PSE UL	2 A	2.5 mm 5.5 mm	9.5 mm
CUI Inc. SDI24-24-UDC-P6R	75 mW	CoC Tier 2 Level VI	Cord	264 VAC	90 VAC	IEC 320-C8	24 W	88.5 mm	1.34 "	34 mm	1.97 in	3.48 "	50 mm	1.5 m	59 in	Positive Center	40 °C	0 °C	ITE (Commercial)	Desktop (Class II)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	24 V		Barrel Plug R/A			CB Scheme CCC CSA EN FCC IEC PSE RCM UL	1 A	2.5 mm 5.5 mm		9.5 mm
