89728 Series
Manufacturer: Belden Inc.
Beta
⌘K

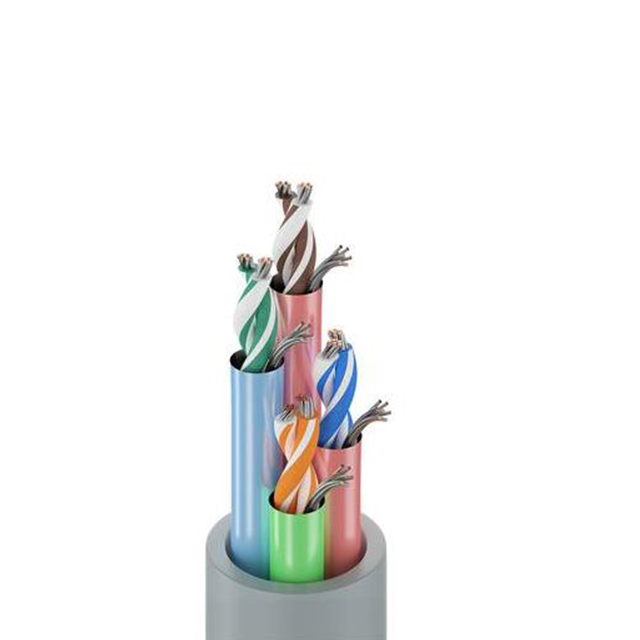

MULTI-PAIR 4CON 24AWG GRAY
| Part | Shield Material | Shield Coverage | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Voltage | Length | Length | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Cable Type | Ratings | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Drain Wire | 7 | 32 AWG | Plenum Polyvinylidene Fluoride (PVDF) | 4 | 0.307 in | 7.8 mm | Copper Tinned | 300 VDC | 304.8 m | 1000 ft | 24 AWG | 150 °C | -70 °C | Computer | Gray | 0.017 " | 0.432 mm | Foam Fluorinated Ethylene-Propylene (FFEP) | Multi-Pair | UL Style CMP | Foil |
Belden Inc. | Aluminum | 100 % | Drain Wire | 7 | 32 AWG | Plenum Polyvinylidene Fluoride (PVDF) | 4 | 0.307 in | 7.8 mm | Copper Tinned | 300 VDC | 152.4 m | 500 ft | 24 AWG | 150 °C | -70 °C | Computer | Gray | 0.017 " | 0.432 mm | Foam Fluorinated Ethylene-Propylene (FFEP) | Multi-Pair | UL Style CMP | Foil |
