BJ79 Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K
CONN TRB JACK STR CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Body Finish | Center Contact Plating | Includes | Voltage Rating | Cable Group | Impedance | Shield Termination | Features | Fastening Type | Center Contact Material | Connector Style | Connector Type | Contact Termination | Number of Ports | Frequency - Max [Max] | Housing Color | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

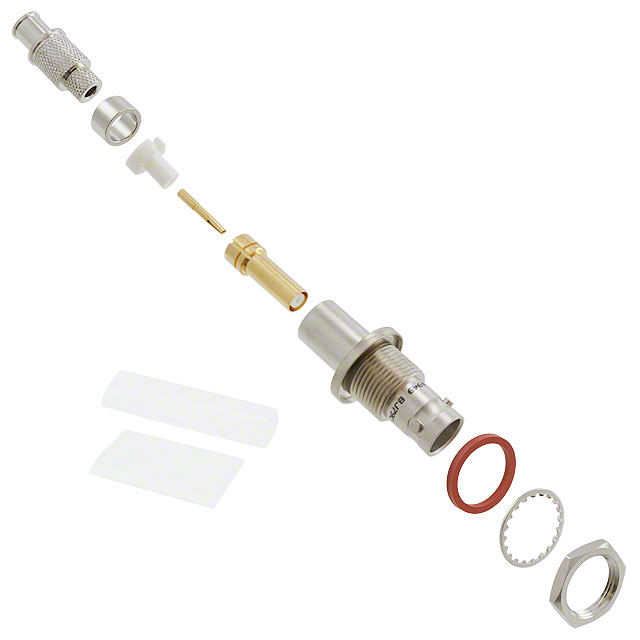

 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 500 | Brass | Nickel | Gold | Connector Heat Shrink Nut Strain Relief Washer | 400 V | Raychem 10602 | Non-Constant | Crimp | Three Lug | Bayonet Lock | Beryllium Copper | TRB Twinaxial/Triaxial | Jack Female Socket (Concentric) | Crimp | 1 | 500 MHz | Silver | Panel Mount | Bulkhead - Front Side Nut |

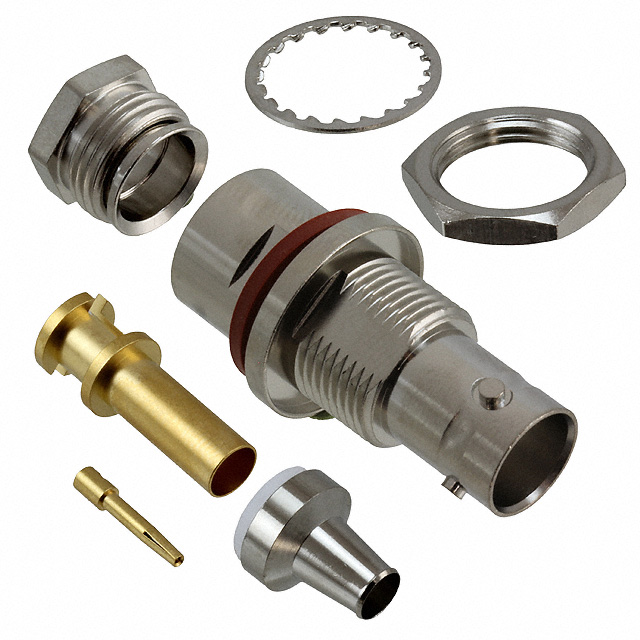

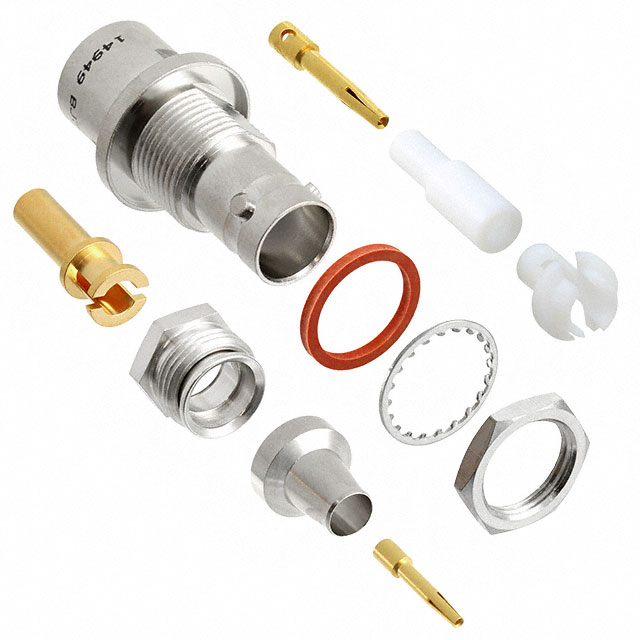

 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 500 | Brass | Nickel | Gold | 1 Nut 1 Washer 3 pcs - 1 Connector | 400 V | TRC-50-2 TRC-75-2 | Non-Constant | Wrench Clamp | Three Lug | Bayonet Lock | Beryllium Copper | TRB Twinaxial/Triaxial | Jack Female Socket (Concentric) | Solder | 1 | 500 MHz | Silver | Panel Mount | Bulkhead - Front Side Nut |

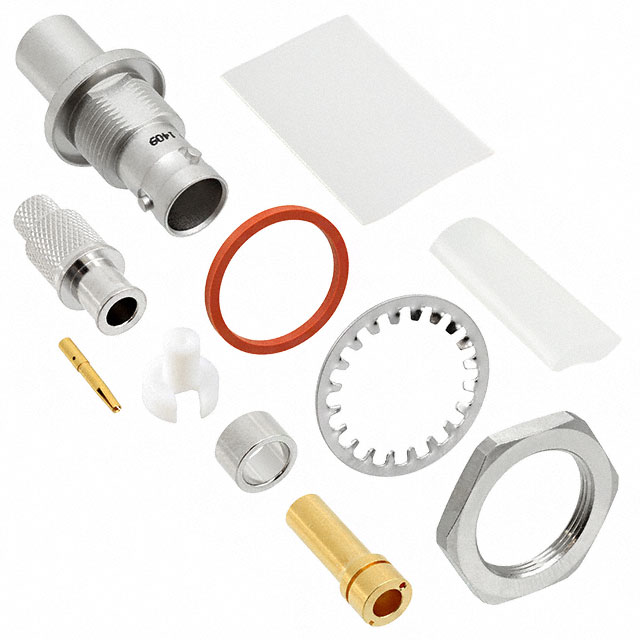

 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 500 | Brass | Nickel | Gold | Connector Heat Shrink Nut Strain Relief Washer | 400 V | Raychem 7528A5314 | Non-Constant | Crimp | Three Lug | Bayonet Lock | Beryllium Copper | TRB Twinaxial/Triaxial | Jack Female Socket (Concentric) | Crimp | 1 | 500 MHz | Silver | Panel Mount | Bulkhead - Front Side Nut |
 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 500 | Brass | Nickel | Gold | Connector Heat Shrink Nut Strain Relief Washer | 400 V | M17/176-00002 | Crimp | Three Lug | Bayonet Lock | Beryllium Copper | TRB Twinaxial/Triaxial | Jack Female Socket (Concentric) | Crimp | 1 | 500 MHz | Silver | Panel Mount | Bulkhead - Front Side Nut | |
Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 500 | Brass | Nickel | Gold | 1 Connector 1 Nut 1 Strain Relief 1 Washer | 400 V | Raychem 2524E0114 | Non-Constant | Crimp | Three Lug | Bayonet Lock | Beryllium Copper | TRB Twinaxial/Triaxial | Jack Female Socket (Concentric) | Crimp | 1 | 500 MHz | Silver | Panel Mount | Bulkhead - Front Side Nut |
 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 500 | Brass | Nickel | Gold | 1 Nut 1 Washer 3 pcs - 1 Connector | 400 V | TWC-124-2 TWC-78-2 | Non-Constant | Wrench Clamp | Three Lug | Bayonet Lock | Beryllium Copper | TRB Twinaxial/Triaxial | Jack Female Socket (Concentric) | Solder | 1 | 500 MHz | Silver | Panel Mount | Bulkhead - Front Side Nut |
