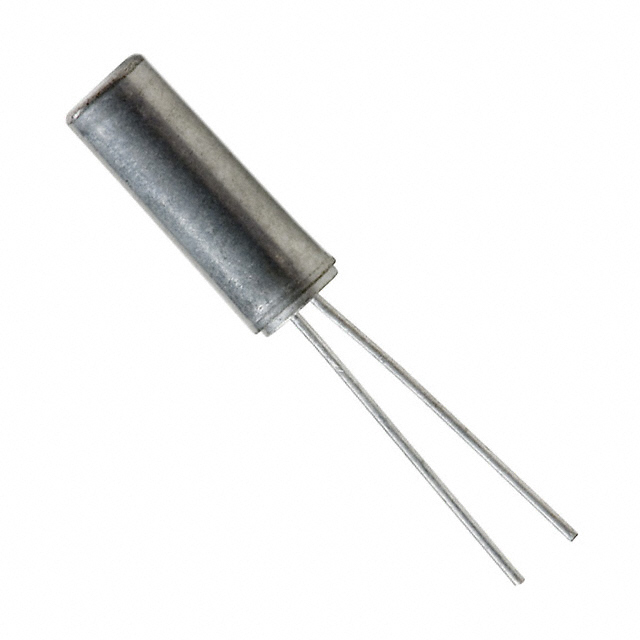

ECS-3x9 Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS CRYSTAL 50.0000MHZ 18PF TH
| Part | Mounting Type | Frequency | Frequency Stability | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Frequency Tolerance | Operating Mode | Type | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | Through Hole | 50 MHz | 50 ppm | 3.2 mm | 0.354 in | 0.126 in | 9 mm | 50 ppm | 3rd Overtone | MHz Crystal | 18 pF | 80 Ohm | -10 °C | 60 °C | 9 mm | 0.354 in | Cylindrical Can Radial |
