FPAB30BH60B Series

PFC Intelligent Power Module, 600V, 30A

Catalog

PFC Intelligent Power Module, 600V, 30A

Part	Current	Voltage	Mounting Type	Configuration	Type	Package / Case [x]	Package / Case [x]	Package / Case	Voltage - Isolation

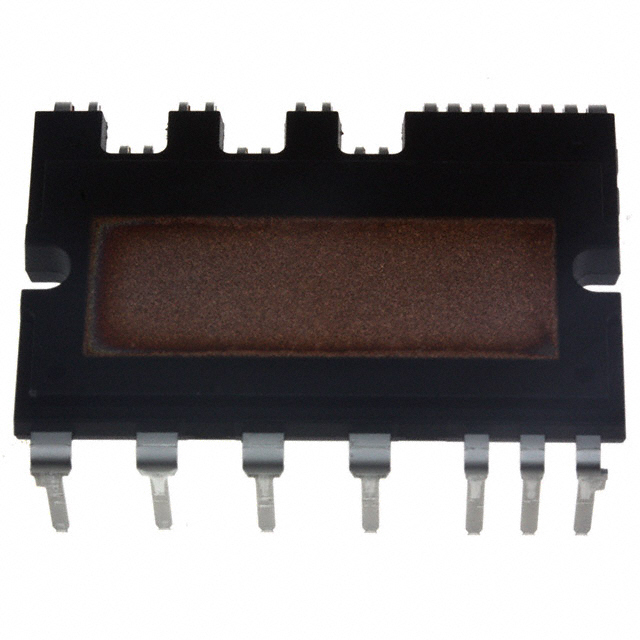

ON Semiconductor FPAB30PH60	20 A	600 V	Through Hole	2 Phase	IGBT	1.205 in	30.6 mm	27-PowerDIP Module	2500 Vrms
ON Semiconductor FPAB30PH60	20 A	600 V	Through Hole	2 Phase	IGBT	1.205 in	30.6 mm	27-PowerDIP Module	2500 Vrms
ON Semiconductor FPAB30BH60B	30 A	600 V	Through Hole		IGBT	1.205 in	30.6 mm	27-PowerDIP Module	2500 Vrms

Catalog

PFC Intelligent Power Module, 600V, 30A

Key Features

• UL Certified No. E209204 (UL1557)

• 600 V - 30 A Single-Phase Boost PFC with Integral Gate Driver and Protection

• Very Low Thermal Resistance Using Al2O3DBC Substrate

• Full-Wave Bridge Rectifier and High-Performance Output Diode

• Built-in NTC Thermistor for Temperature Monitoring

• Optimized for 20kHz Switching Frequency

• Isolation Rating: 2500 Vrms/min.

Description

The FPAB30BH60B is an advanced PFC SPM®3 module providing a fully-featured, high-performance Boost PFC (Power Factor Correction) input power stage for consumer, medical, and industrial applications. These single-phase modules integrate optimized gate drive of the built-in IGBT to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. These modules also feature a full-wave rectifier, and highperformance output diode for additional space savings and mounting convenience.
