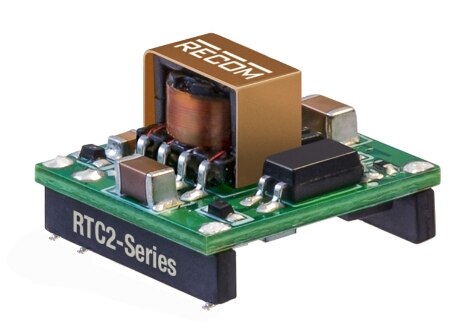

RTC2 Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 2W 18-36VIN 24VOUT 400MA SMD

Part	Features	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Package / Case	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Control Features	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Recom Power RTC2-2405SRW-R	Remote On/Off SCP	80 %	400 mA	3000 V	5 V	5-SMD Module	2 W	0.38 in	14.9 mm	0.59 in	0.56 "	14.2 mm	9.6 mm	Isolated Module	36 V	1	18 V	Active Low Enable	ITE (Commercial)	Surface Mount	-40 °C	100 °C
Recom Power RTC2-0505SRW	Remote On/Off SCP	76 %	400 mA	3000 V	5 V	5-SMD Module	2 W	0.38 in	14.9 mm	0.59 in	0.56 "	14.2 mm	9.6 mm	Isolated Module	9 V	1	4.5 V	Active Low Enable	ITE (Commercial)	Surface Mount	-40 °C	100 °C
Recom Power RTC2-2405SRW	Remote On/Off SCP	80 %	400 mA	3000 V	5 V	5-SMD Module	2 W	0.38 in	14.9 mm	0.59 in	0.56 "	14.2 mm	9.6 mm	Isolated Module	36 V	1	18 V	Active Low Enable	ITE (Commercial)	Surface Mount	-40 °C	100 °C
Recom Power RTC2-0505SRW-R	Remote On/Off SCP	76 %	400 mA	3000 V	5 V	5-SMD Module	2 W	0.38 in	14.9 mm	0.59 in	0.56 "	14.2 mm	9.6 mm	Isolated Module	9 V	1	4.5 V	Active Low Enable	ITE (Commercial)	Surface Mount	-40 °C	100 °C
