0378-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Termination	Length - Overall [x]	Length - Overall [x]	Contact Finish	Contact Material

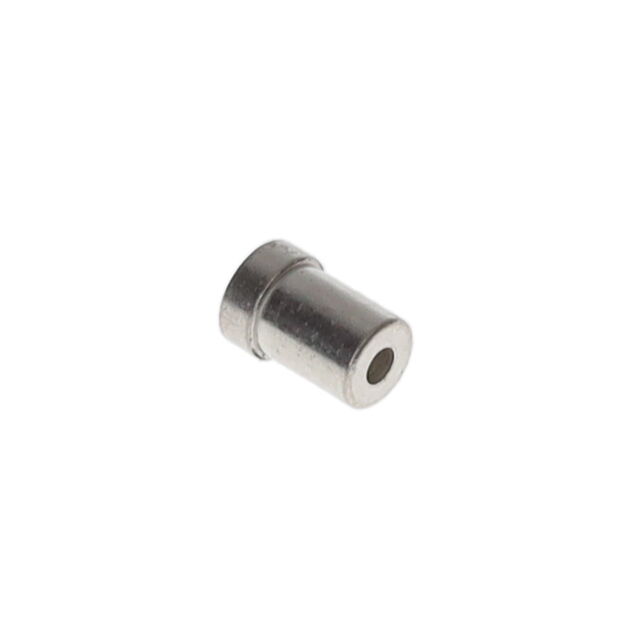

Mill-Max Manufacturing Corp. 0378-0-15-80-15-80-10-0	-55 C	125 °C	0.047 in	1.19 mm	0.132 in	3.35 mm	2.08 mm	0.082 in	No Tail	200 Áin	5.08 Ám	0.092 in	2.34 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder	3.35 mm	0.132 in	Tin	Beryllium Copper
Mill-Max Manufacturing Corp. 0378-0-15-01-15-14-10-0	-55 C	125 °C	0.047 in	1.19 mm	0.132 in	3.35 mm	2.08 mm	0.082 in	No Tail	10 Áin	0.25 Ám	0.092 in	2.34 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder	3.35 mm	0.132 in	Gold	Beryllium Copper

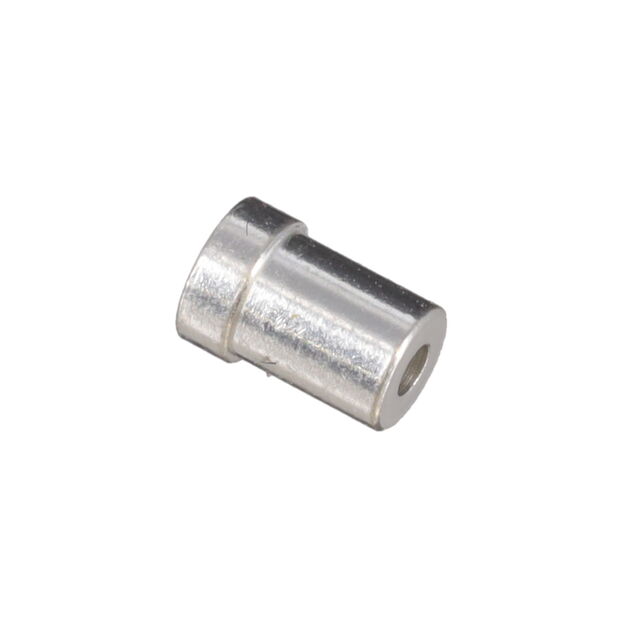

Mill-Max Manufacturing Corp. 0378-0-15-01-15-01-10-0	-55 C	125 °C	0.047 in	1.19 mm	0.132 in	3.35 mm	2.08 mm	0.082 in	No Tail	200 Áin	5.08 Ám	0.092 in	2.34 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder	3.35 mm	0.132 in	Tin-Lead	Beryllium Copper
Mill-Max Manufacturing Corp. 0378-0-15-15-15-14-10-0	-55 C	125 °C	0.047 in	1.19 mm	0.132 in	3.35 mm	2.08 mm	0.082 in	No Tail	10 Áin	0.25 Ám	0.092 in	2.34 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder	3.35 mm	0.132 in	Gold	Beryllium Copper

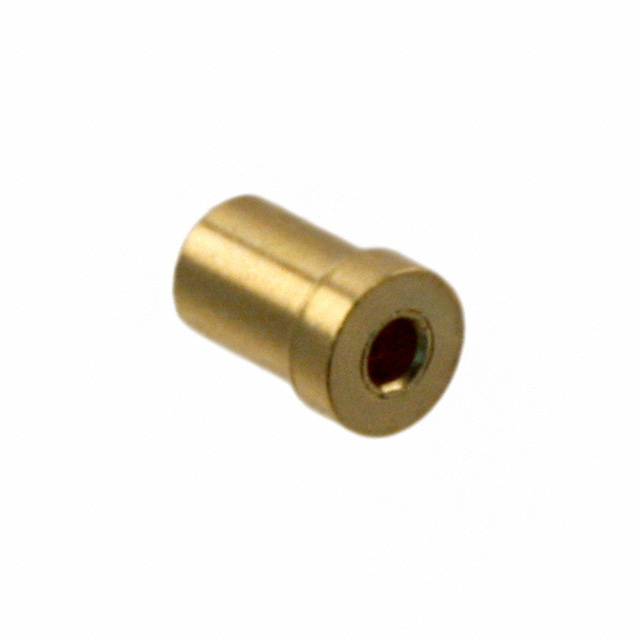

Mill-Max Manufacturing Corp. 0378-0-15-15-15-27-10-0	-55 C	125 °C	0.047 in	1.19 mm	0.132 in	3.35 mm	2.08 mm	0.082 in	No Tail	30 Áin	0.76 Ám	0.092 in	2.34 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder	3.35 mm	0.132 in	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0378-0-15-01-15-27-10-0	-55 C	125 °C	0.047 in	1.19 mm	0.132 in	3.35 mm	2.08 mm	0.082 in	No Tail	30 Áin	0.76 Ám	0.092 in	2.34 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder	3.35 mm	0.132 in	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 0378-0-15-80-15-27-10-0	-55 C	125 °C	0.047 in	1.19 mm	0.132 in	3.35 mm	2.08 mm	0.082 in	No Tail	30 Áin	0.76 Ám	0.092 in	2.34 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Solder	3.35 mm	0.132 in	Gold	Beryllium Copper
