1408349 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

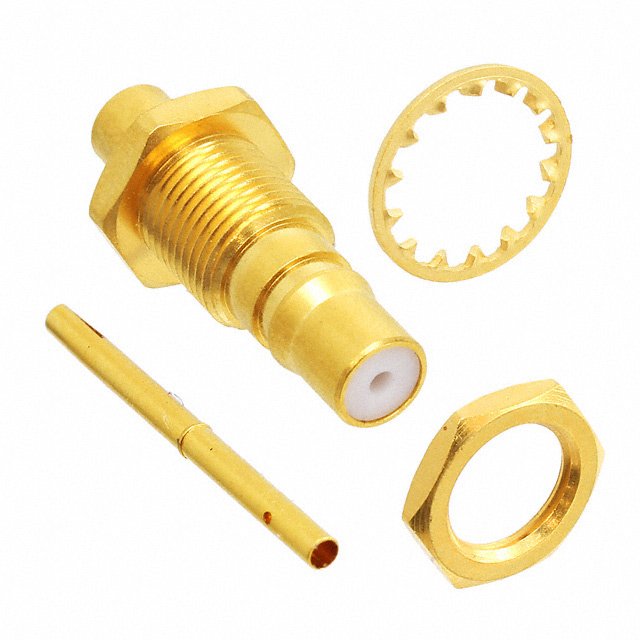

CONN QMA JACK STR 50 OHM SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Body Material | Center Contact Plating | Insertion Loss | Includes | Voltage Rating | Dielectric Material | Center Contact Material | Shield Termination | Impedance | Contact Termination | Number of Ports | Frequency - Max [Max] | Housing Color | Mounting Feature | Connector Type | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 80 °C | -40 C | Gold | Brass | Gold | 0.25 dB | 1 Connector 1 Contact 1 Lockwasher 1 Nut | 335 V | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Solder | 50 Ohms | Solder | 1 | 6000 MHz | Gold | Bulkhead - Front Side Nut | Female Socket Jack | Panel Mount | Snap-On |
