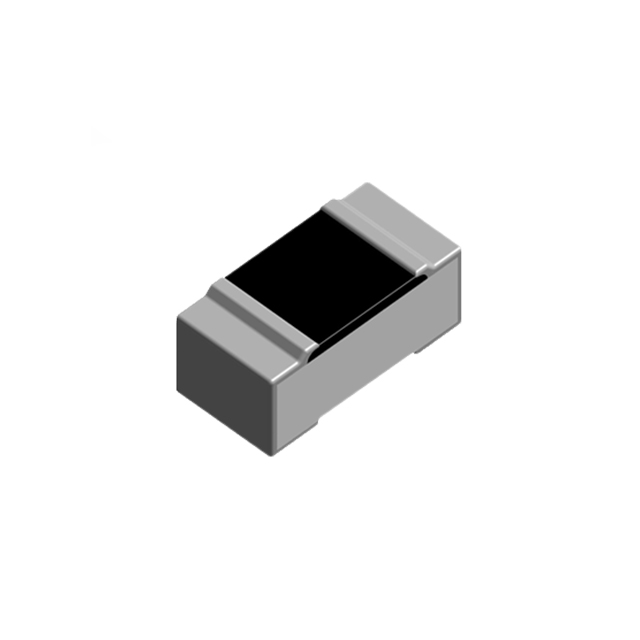

ERA-1AR Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
RES SMD 715 OHM 0.1% 1/20W 0201
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Number of Terminations | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Features | Composition | Package / Case | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Power (Watts) | Supplier Device Package | Temperature Coefficient | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.1 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 715 Ohms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.05 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 7.5 kOhms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.1 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 806 Ohms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.1 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 825 Ohms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.1 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 3.65 kOhms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.05 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 3.83 kOhms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.1 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 9.76 kOhms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.1 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 3 kOhms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.25 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 1000 Ohms |
Panasonic Industrial Automation Sales | 0.26 mm | 0.01 " | 2 | 0.1 % | 155 °C | -55 °C | Automotive AEC-Q200 | Thin Film | 0603 Metric | 0201 | 0.3 mm | 0.6 mm | 0.024 " | 0.012 " | 0.05 W | 50 mW | 0201 | 10 ppm/°C | 2.05 kOhms |
