745414 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

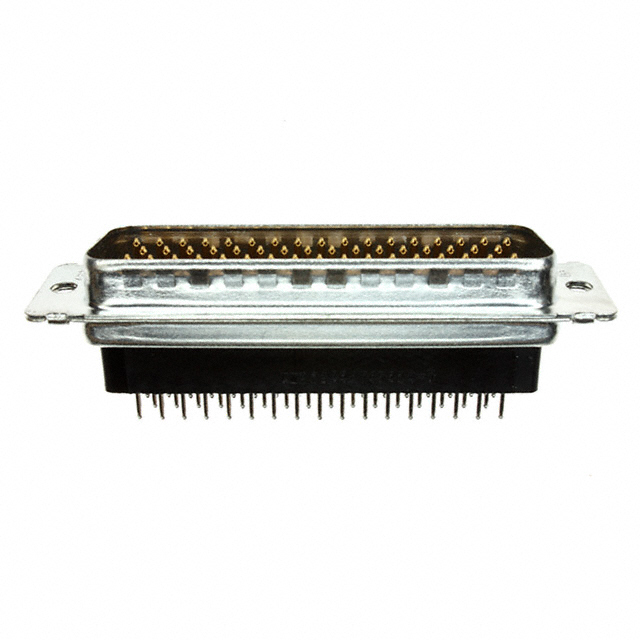

CONN D-SUB PIN 50 POS 1.38MM SOLDER ST THRU-HOLE 50 TERMINAL 1 PORT TUBE
| Part | Color | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Connector Style | Features | Material Flammability Rating | Contact Finish | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Flange Feature | Contact Type | Number of Rows [custom] | Termination | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | 125 VDC | Thermoplastic | -55 C | 105 ░C | Brass | D-Sub | Grounding Indents | UL94 V-0 | Gold | 6 A | 5 | D DD | Plug Male Pins | Housing/Shell (Unthreaded) | Signal | 3 | Solder | Through Hole | 50 |
