145046 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
BOARD TO BOARD
| Part | Number of Rows [custom] | Mounting Type | Number of Positions | Contact Finish | Features | Pitch | Pitch | Mated Stacking Heights | Height Above Board [z] | Height Above Board [z] | Connector Type | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 2 | Surface Mount | 60 | Gold | Solder Retention | 0.02 " | 0.5 mm | 3.5 mm | 2.8 mm | 0.11 in | Plug Outer Shroud Contacts | ||

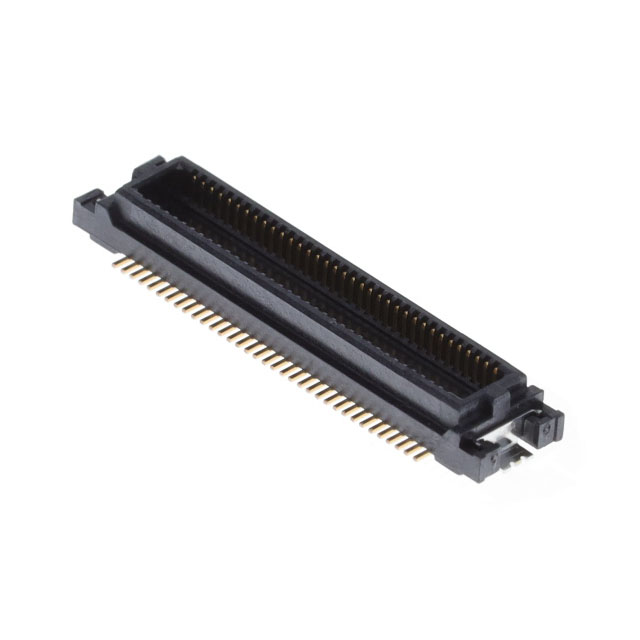

 KYOCERA AVX | 2 | Surface Mount | 70 | Gold | Pick and Place Solder Retention | 0.02 " | 0.5 mm | 3 mm | 0.091 " | Plug Outer Shroud Contacts | 2.3 mm | ||

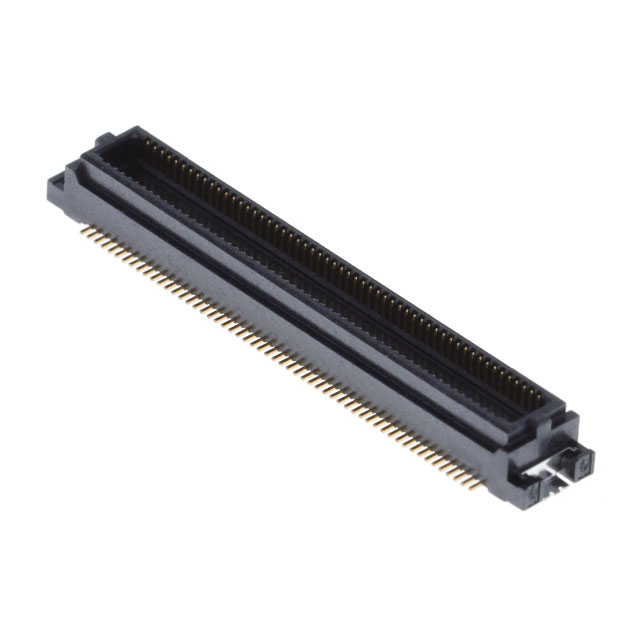

 KYOCERA AVX | 2 | Surface Mount | 100 | Gold | Solder Retention | 0.02 " | 0.5 mm | 3 mm | 0.091 " | Plug Outer Shroud Contacts | 2.3 mm | ||
KYOCERA AVX | 2 | Surface Mount | 70 | Gold | Solder Retention | 0.02 " | 0.5 mm | 3.5 mm | 2.8 mm | 0.11 in | Plug Outer Shroud Contacts | ||

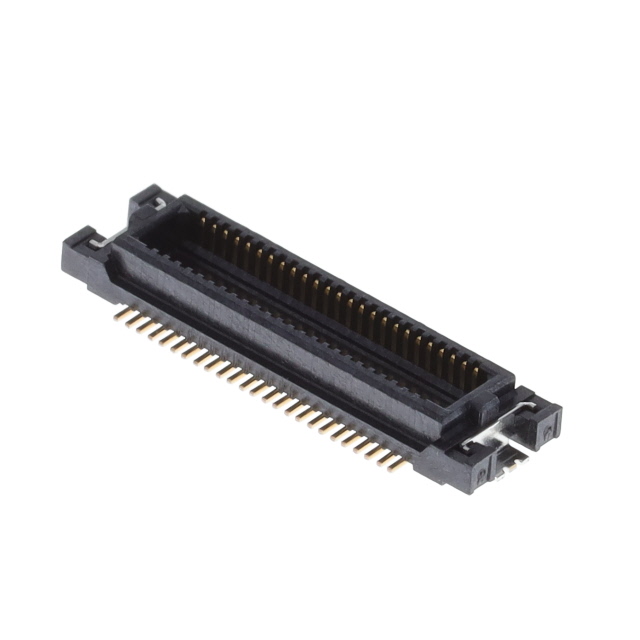

 KYOCERA AVX | 2 | Surface Mount | 50 | Gold | Solder Retention | 0.02 " | 0.5 mm | 3 mm | 0.091 " | Plug Outer Shroud Contacts | 2.3 mm | ||
KYOCERA AVX | 2 | Surface Mount | 30 | Gold | Solder Retention | 0.02 " | 0.5 mm | 3.5 mm | 2.8 mm | 0.11 in | Plug Outer Shroud Contacts | ||
KYOCERA AVX | 2 | Surface Mount | 120 | Gold | Pick and Place Solder Retention | 0.02 " | 0.5 mm | 3 mm | 0.091 " | Plug Outer Shroud Contacts | 2.3 mm | ||
KYOCERA AVX | 2 | Surface Mount | 100 | Gold | Solder Retention | 0.02 " | 0.5 mm | 3.5 mm | 2.8 mm | 0.11 in | Plug Outer Shroud Contacts | ||
KYOCERA AVX | 2 | Surface Mount | 20 | Gold | 0.02 " | 0.5 mm | 3 mm | 0.091 " | Plug Outer Shroud Contacts | 2.3 mm | |||
KYOCERA AVX | 2 | Surface Mount | 30 | Gold | Solder Retention | 0.02 " | 0.5 mm | Plug Outer Shroud Contacts | 3.8 mm | 0.15 in |
