3402 Series

Catalog

CONN IDC 34POS 26-28AWG VERT

Part	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions [custom]	Connector Type	Contact Finish	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Cable Termination	Mounting Type	Row Spacing	Row Spacing	Cable Pitch	Cable Pitch	Color
3M Electronic Specialty 3402-0001T	All	200 Áin	5.08 Ám	Feed Through	34	Ribbon Cable	Tin-Lead	28 AWG	Stranded or Solid	26 AWG	IDC	Through Hole	2.54 mm	0.1 "	1.27 mm	0.05 in	Gray

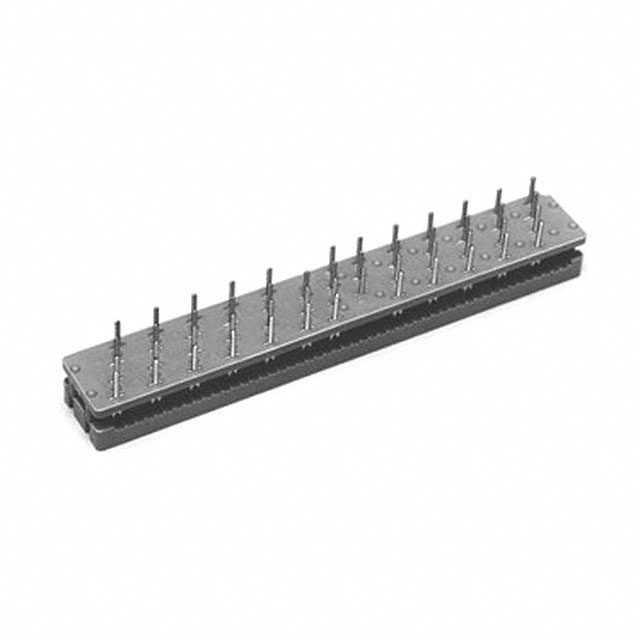

3M Electronic Specialty 3402-0000	All	10 Áin	0.25 Ám	Feed Through	34	Ribbon Cable	Gold	28 AWG	Stranded or Solid	26 AWG	IDC	Through Hole	2.54 mm	0.1 "	1.27 mm	0.05 in	Gray

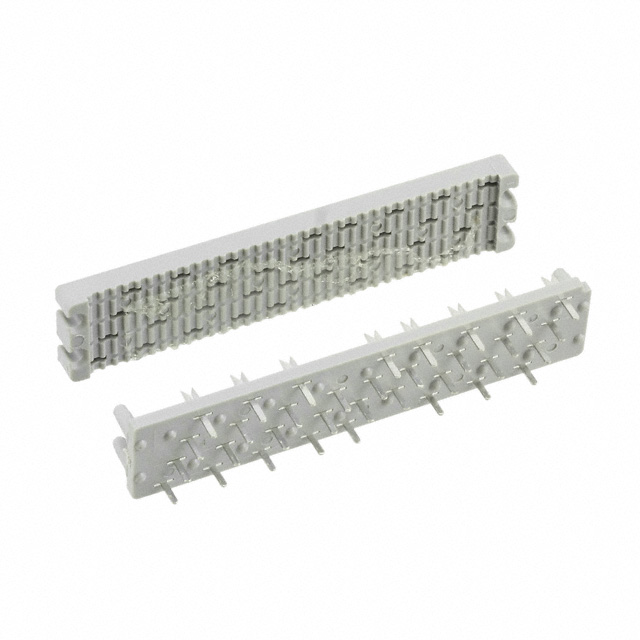

3M Electronic Specialty 3402-0000T	All	200 Áin	5.08 Ám	Feed Through	34	Ribbon Cable	Tin-Lead	28 AWG	Stranded or Solid	26 AWG	IDC	Through Hole	2.54 mm	0.1 "	1.27 mm	0.05 in	Gray
3M Electronic Specialty 3402-0001	All	10 Áin	0.25 Ám	Feed Through	34	Ribbon Cable	Gold	28 AWG	Stranded or Solid	26 AWG	IDC	Through Hole	2.54 mm	0.1 "	1.27 mm	0.05 in	Gray
