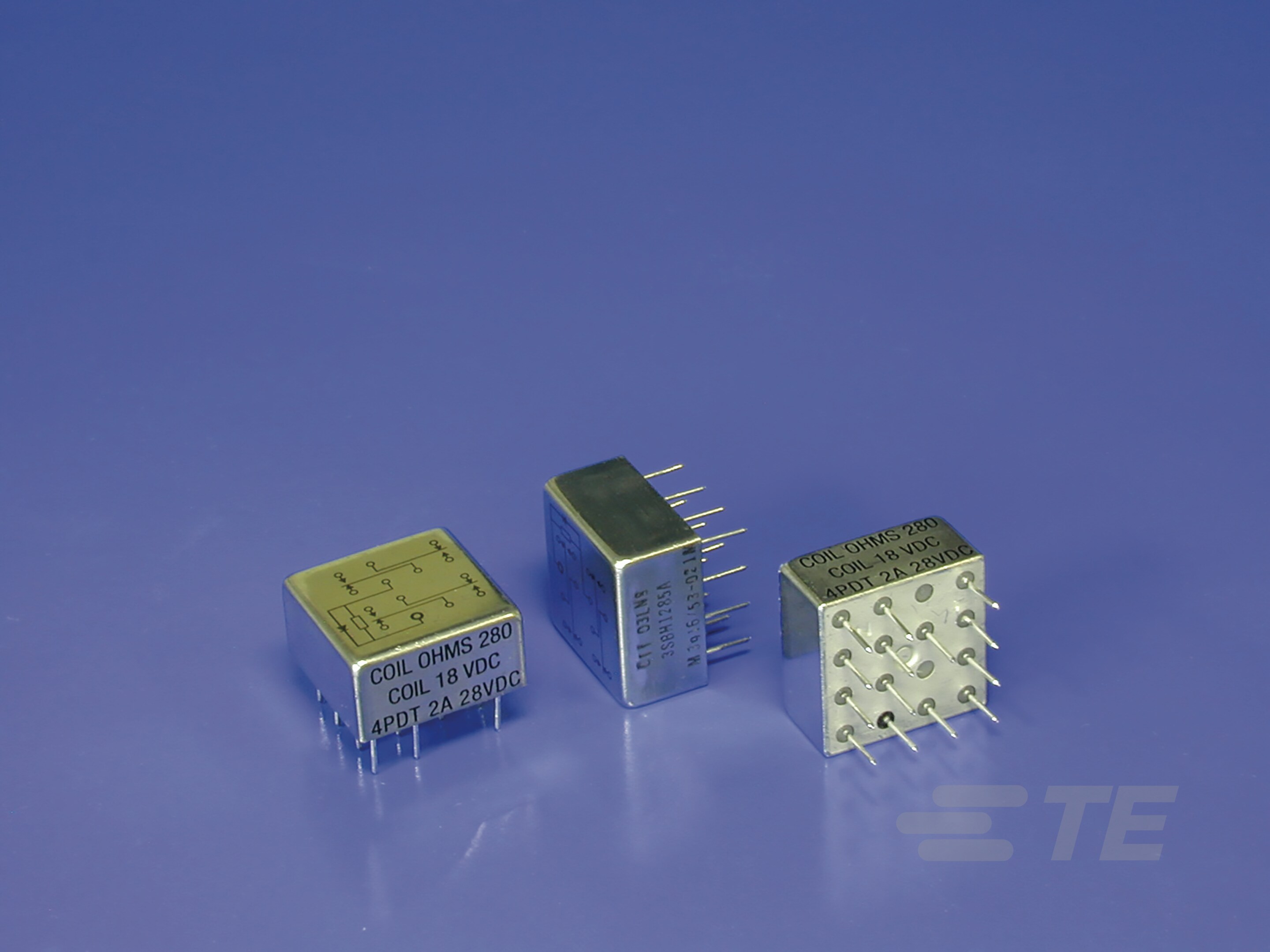

CII 3SBH Relay Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GENERAL PURPOSE 4PDT 2A 6V

Part	Coil Current	Mounting Type	Contact Form	Seal Rating	Switching Voltage [Max]	Coil Type	Relay Type	Contact Rating (Current)	Termination Style	Load - Max Switching	Release Time	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Must Release Voltage	Must Operate Voltage	Switching Voltage	Grade	Qualification	Coil Resistance
TE Connectivity AMP Connectors 3SBH1145A2	214 mA	Through Hole	4PDT (4 Form C)	Sealed - Hermetically	28 VDC 115 VAC	Non Latching	General Purpose	2 A	PC Pin	56 W 230 VA	4 ms	4 ms	-65 ░C	125 °C
TE Connectivity AMP Connectors 3SBH1130A2	214 mA	Through Hole	4PDT (4 Form C)	Sealed - Hermetically	28 VDC 115 VAC	Non Latching	General Purpose	2 A	PC Pin	56 W 230 VA	4 ms	4 ms	-65 ░C	125 °C
TE Connectivity AMP Connectors 3SBH1149A2	104 mA	Through Hole	4PDT (4 Form C)	Sealed - Hermetically	28 VDC 115 VAC	Non Latching	General Purpose	2 A	PC Pin	56 W 230 VA	4 ms	4 ms	-65 ░C	125 °C	12 VDC
TE Connectivity AMP Connectors 3SBH1142A2	36.8 mA	Through Hole	4PDT (4 Form C)	Sealed - Hermetically		Non Latching	General Purpose	2 A	PC Pin		4 ms	4 ms	-65 ░C	125 °C	26.5 VDC	1.5 VDC	13.5 VDC	28 VDC
TE Connectivity AMP Connectors 3SBH5131K1	36.8 mA	Chassis Mount	4PDT (4 Form C)	Sealed - Hermetically	28 VDC 115 VAC	Non Latching	General Purpose	2 A	Solder Hook	56 W 230 VA			-65 ░C	125 °C	26.5 VDC	1.5 VDC	13.5 VDC
TE Connectivity AMP Connectors 3SBH1231A2	36.8 mA	Through Hole	4PDT (4 Form C)	Sealed - Hermetically		Non Latching	General Purpose	2 A	PC Pin		6 ms	4 ms	-65 ░C	125 °C	26.5 VDC	1.5 VDC	13.5 VDC	28 VDC	Military	MIL-R-39016/53
TE Connectivity AMP Connectors 3SBH5131K5	36.8 mA	Chassis Mount	4PDT (4 Form C)	Sealed - Hermetically	28 VDC 115 VAC	Non Latching	General Purpose	2 A	Solder Hook	56 W 230 VA	6 ms	4 ms	-65 ░C	125 °C	26.5 VDC	1.5 VDC	13.5 VDC				720 Ohms
TE Connectivity AMP Connectors 3SBH1151A2	36.8 mA	Chassis Mount	4PDT (4 Form C)	Sealed - Hermetically	28 VDC 115 VAC	Non Latching	General Purpose	2 A	Solder Hook	56 W 230 VA	4 ms	4 ms	-65 ░C	125 °C	26.5 VDC
TE Connectivity AMP Connectors 3SBH1141A2	36.8 mA	Chassis Mount	4PDT (4 Form C)	Sealed - Hermetically		Non Latching	General Purpose	2 A	Solder Hook		4 ms	4 ms	-65 ░C	125 °C	26.5 VDC	1.5 VDC	13.5 VDC	28 VDC
TE Connectivity AMP Connectors 3SBH5004K1	36.8 mA	Through Hole	4PDT (4 Form C)	Sealed - Hermetically	28 VDC 115 VAC	Non Latching	General Purpose	2 A	PC Pin	56 W 230 VA	4 ms	4 ms	-65 ░C	125 °C	26.5 VDC	1.5 VDC	13.5 VDC
