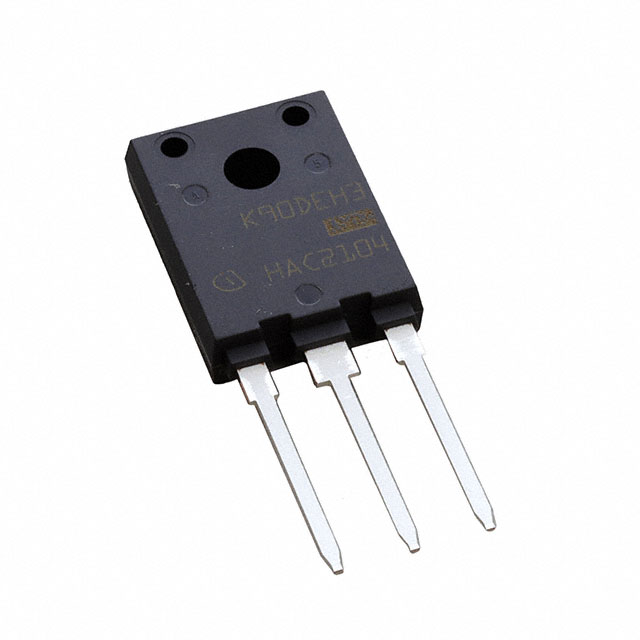

IKFW90 Series
Manufacturer: INFINEON
Beta
⌘K
600 V, 50A HIGH SPEED HARD SWITCHING TRENCHSTOP™ IGBT3 DISCRETE WITH RAPID 1 FAST AND SOFT ANTI PARALLEL DIODE IN A TO247 PACKAGE. WITH A SWITCHING FREQUENCY FROM 16 TO 80KHZ IT FITS PERFECTLY FOR YOUR MOTOR DRIVES, UPS, AIR CONDITIONING AND SOLAR SYSTEMS.
| Part | Mounting Type | Voltage - Collector Emitter Breakdown (Max) [Max] | Vce(on) (Max) @ Vge, Ic | IGBT Type | Supplier Device Package | Td (on/off) @ 25°C [custom] | Td (on/off) @ 25°C [custom] | Package / Case | Gate Charge | Power - Max [Max] | Test Condition | Current - Collector (Ic) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Switching Energy | Reverse Recovery Time (trr) | Current - Collector Pulsed (Icm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Through Hole | 600 V | 2.3 V | Trench Field Stop | PG-TO247-3-AI | 210 ns | 32 ns | TO-247-3 | 440 nC | 178 W | 5 Ohm 15 V 75 A 400 V | 77 A | 175 °C | -40 °C | 1.3 mJ 2.65 mJ | 107 ns | 300 A |
