WCLA Series

RF Inductors - SMD 15 NH 5% AEC-Q200

Manufacturer: Eaton - Electronics Division

Catalog

RF Inductors - SMD 15 NH 5% AEC-Q200

Catalog

RF Inductors - SMD 15 NH 5% AEC-Q200

...

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Type	Q @ Freq [custom]	Q @ Freq [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance	Shielding	Supplier Device Package	Package / Case	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Ratings	Current Rating (Amps)	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Q @ Freq [custom]	Package / Case	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

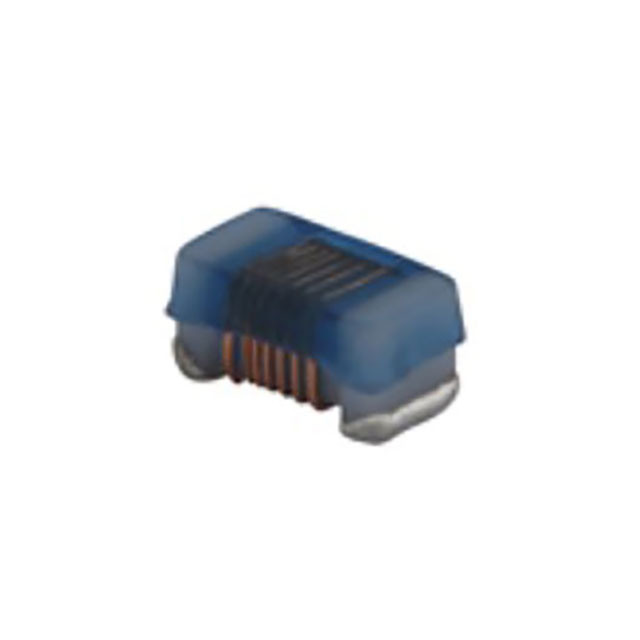

Eaton - Electronics Division WCLA1005V1-1R0-R	0.66 mm	0.047 in	0.026 "	1.19 mm	250 MHz	Wirewound	13	250 MHz	125 °C	-40 C	Surface Mount	10 %	Unshielded	0402	0402 (1005 Metric)	10 GHz	45 mOhm	AEC-Q200	1.36 A	1 nH	0.6 mm	0.024 in
Eaton - Electronics Division WCLA2012V1-6R8-R	1.7 mm	0.091 in	0.067 in	2.3 mm	250 MHz	Wirewound	50	1 GHz	125 °C	-40 C	Surface Mount	5 %	Unshielded	0805	0805	5.5 GHz		AEC-Q200	600 mA	6.8 nH	1.52 mm	0.06 in	110 mOhm
Eaton - Electronics Division WCLA2012V1-680-R	1.7 mm	0.091 in	0.067 in	2.3 mm	200 MHz	Wirewound	55		125 °C	-40 C	Surface Mount	5 %	Unshielded	0805	0805	1.45 GHz	380 mOhm	AEC-Q200	0.5 A	68 nH	1.52 mm	0.06 in		500 MHz

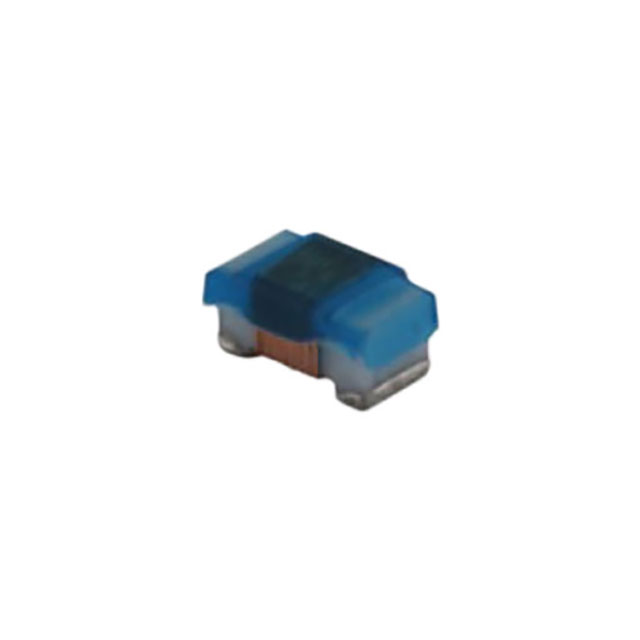

Eaton - Electronics Division WCLA1608V1-121-R	1.1 mm	0.07 in	0.043 in	1.78 mm	150 MHz	Wirewound			125 °C	-40 C	Surface Mount	5 %	Unshielded		0603	1.3 GHz		AEC-Q200	0.3 A	120 nH			730 mOhm		1608 Metric	32 150 MHz	0.95 mm	0.037 in
Eaton - Electronics Division WCLA1005V1-9R0-R	0.66 mm	0.047 in	0.026 "	1.19 mm	250 MHz	Wirewound	25		125 °C	-40 C	Surface Mount	5 %	Unshielded	0402	0402 (1005 Metric)	4.16 GHz		AEC-Q200	0.68 A	9 nH	0.6 mm	0.024 in	100 mOhm	250 MHz
Eaton - Electronics Division WCLA1005V1-3R9-R	0.66 mm	0.047 in	0.026 "	1.19 mm	250 MHz	Wirewound	20	250 MHz	125 °C	-40 C	Surface Mount	5 %	Unshielded	0402	0402 (1005 Metric)	6 GHz	66 mOhm	AEC-Q200	0.84 A	3.9 nH	0.6 mm	0.024 in
Eaton - Electronics Division WCLA1005V1-2R4-R	0.66 mm	0.047 in	0.026 "	1.19 mm	250 MHz	Wirewound			125 °C	-40 C	Surface Mount	10 %	Unshielded	0402	0402 (1005 Metric)	6 GHz	80 mOhm	AEC-Q200		2.4 nH	0.6 mm	0.024 in				16 250 MHz
Eaton - Electronics Division WCLA1608V1-4R7-R	1.1 mm	0.07 in	0.043 in	1.78 mm	250 MHz	Wirewound	20	250 MHz	125 °C	-40 C	Surface Mount	5 %	Unshielded		0603	5.8 GHz		AEC-Q200	700 mA	4.7 nH			116 mOhm		1608 Metric		0.95 mm	0.037 in
Eaton - Electronics Division WCLA1608V1-220-R	1.1 mm	0.07 in	0.043 in	1.78 mm	250 MHz	Wirewound			125 °C	-40 C	Surface Mount	5 %	Unshielded		0603	3 GHz	190 mOhm	AEC-Q200	700 mA	22 nH					1608 Metric	38 250 MHz	0.95 mm	0.037 in
Eaton - Electronics Division WCLA1005V1-820-R	0.66 mm	0.047 in	0.026 "	1.19 mm	250 MHz	Wirewound	25		125 °C	-40 C	Surface Mount	5 %	Unshielded	0402	0402 (1005 Metric)	1.26 GHz	1.7 Ohm	AEC-Q200	50 mA	82 nH	0.6 mm	0.024 in		250 MHz
