Schaffner FN2070 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

POWER LINE FILTERS SINGLE PHASE CHASSIS MOUNT FILTER 250VAC, 16A, 2-STAGE HF, WIRE, <5UA

Part	Filter Type	Mounting Type	Frequency - Operating	Voltage - Rated DC	Voltage - Rated AC	Approval Agency	Termination Style	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Applications	Current
TE Connectivity AMP Connectors FN2070B-16-07	Single Phase	Chassis Mount	DC ~ 400Hz	250 V	250 V	CE CSA ENEC UR	Wire Leads	2.8 mH	100 °C	-25 °C	Two Stage	Medical	16 A
TE Connectivity AMP Connectors FN2070-16-06	Single Phase	Chassis Mount	DC ~ 400Hz		110 V 250 V	CSA ENEC UR	Quick Connect	2.8 mH	100 °C	-25 °C	Two Stage	General Purpose	16 A

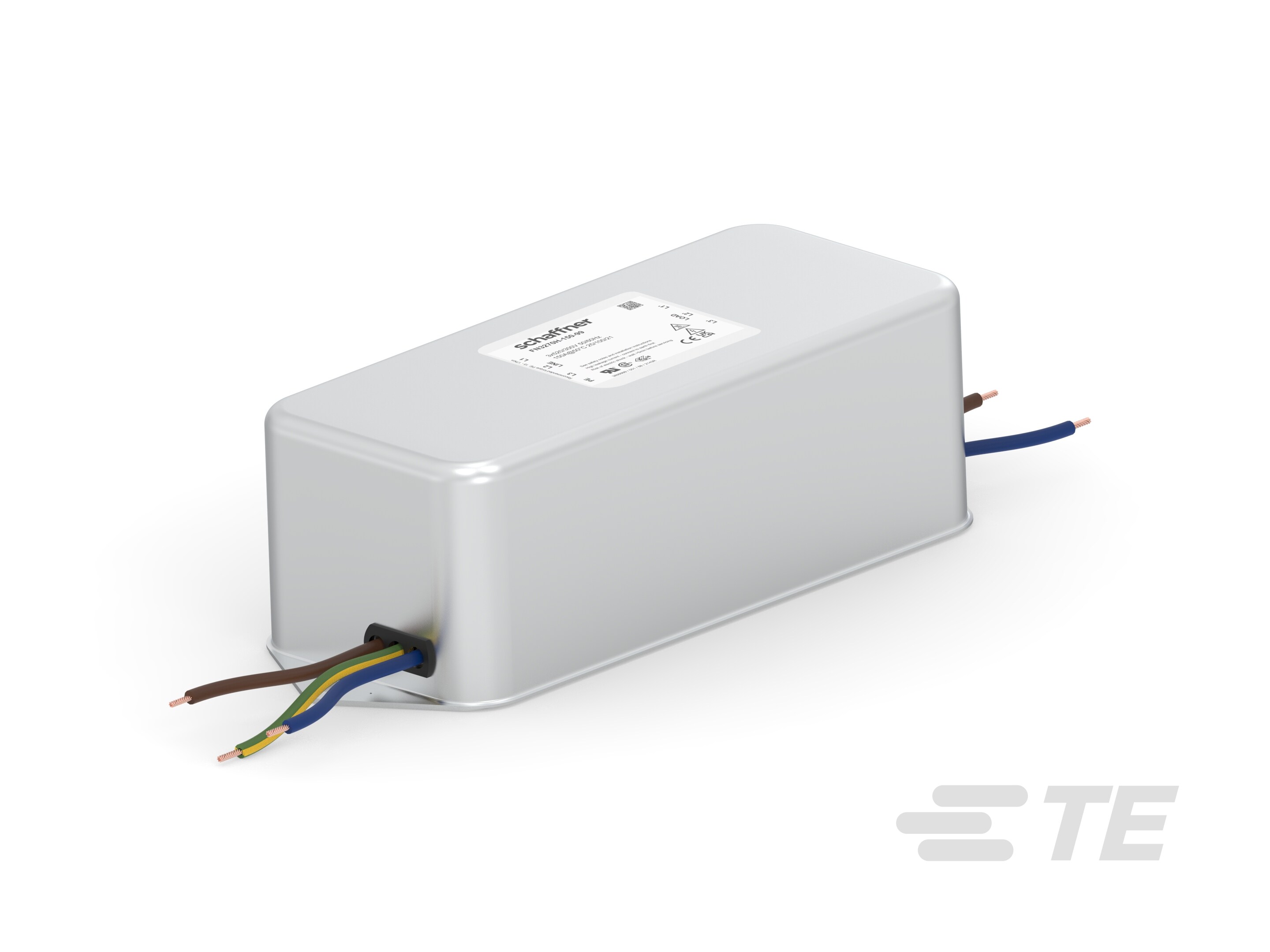

TE Connectivity AMP Connectors FN2070-10-07	Single Phase	Chassis Mount	DC ~ 400Hz		110 V 250 V	CSA ENEC UR	Wire Leads	4.5 mH	100 °C	-25 °C	Two Stage	General Purpose	10 A

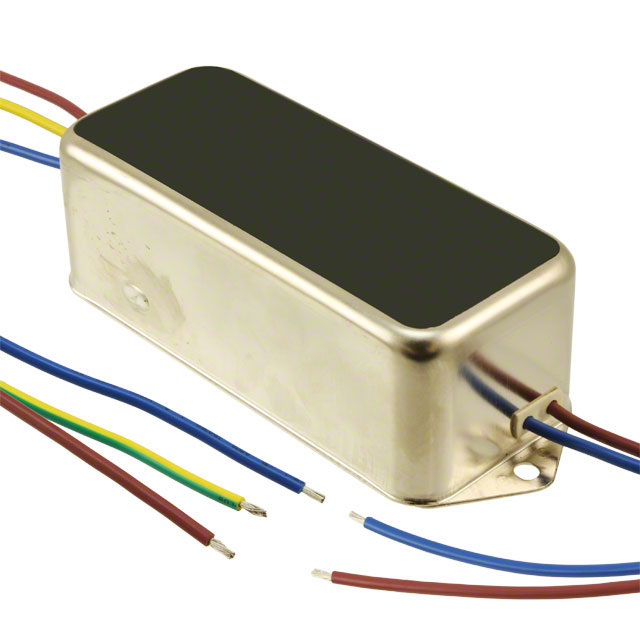

TE Connectivity AMP Connectors FN2070-12-07	Single Phase	Chassis Mount	DC ~ 400Hz		110 V 250 V	CSA ENEC UR	Wire Leads	3.25 mH	100 °C	-25 °C	Two Stage	General Purpose	12 A
TE Connectivity AMP Connectors FN2070-3-06	Single Phase	Chassis Mount	DC ~ 400Hz		110 V 250 V	CSA ENEC UR	Quick Connect	9.8 mH	100 °C	-25 °C	Two Stage	General Purpose	3 A
TE Connectivity AMP Connectors FN2070B-16-08	Single Phase	Chassis Mount	DC ~ 400Hz	250 V	250 V	CE CSA ENEC UR	Wire Leads	1 mH	100 °C	-25 °C	Two Stage	Medical	16 A
TE Connectivity AMP Connectors FN2070-6-06	Single Phase	Chassis Mount	DC ~ 400Hz		110 V 250 V	CSA ENEC UR	Quick Connect	7.8 mH	100 °C	-25 °C	Two Stage	General Purpose	6 A

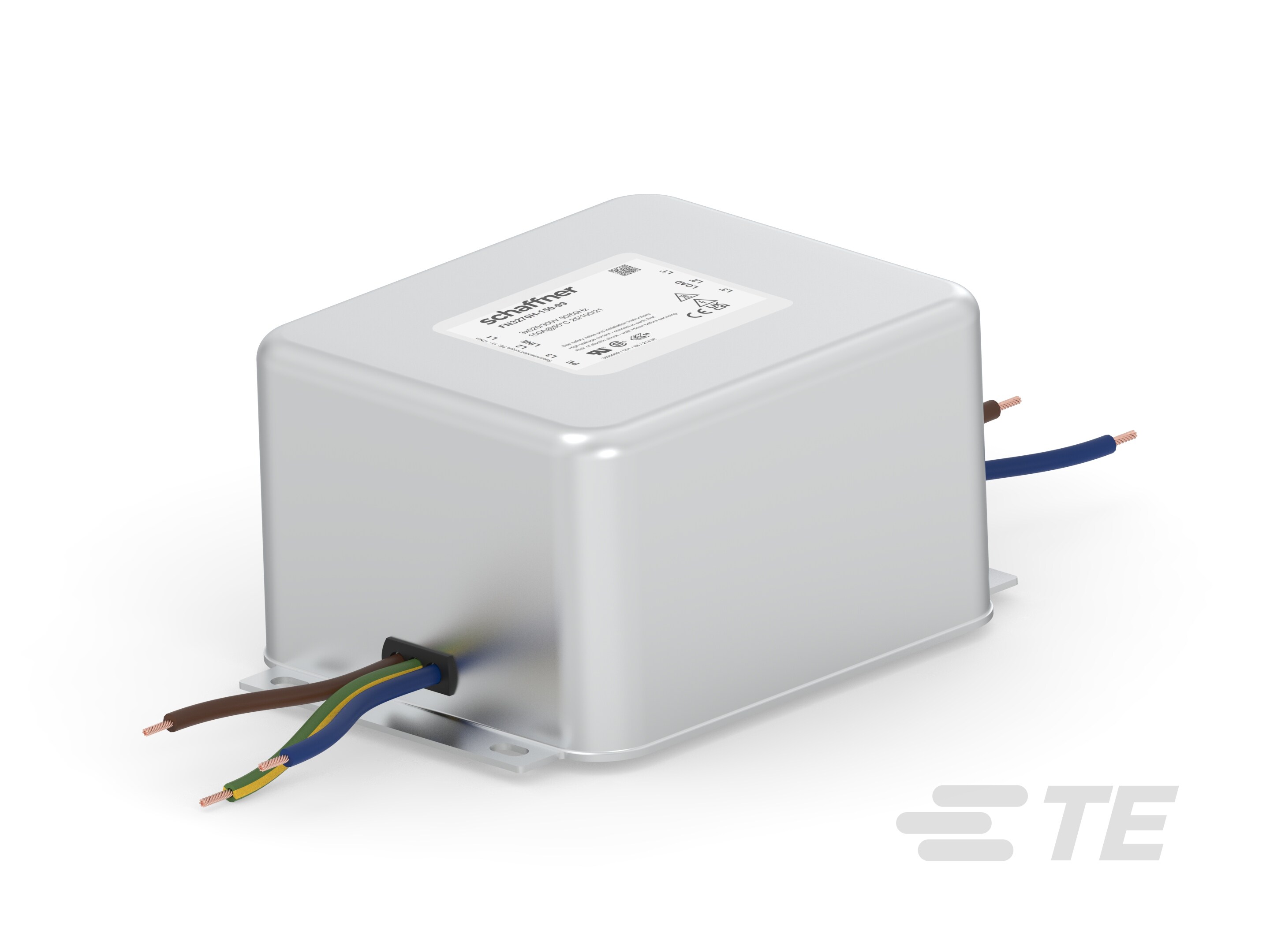

TE Connectivity AMP Connectors FN2070-16-07	Single Phase	Chassis Mount	DC ~ 400Hz		110 V 250 V	CSA ENEC UR	Wire Leads	2.8 mH	100 °C	-25 °C	Two Stage	General Purpose	16 A
TE Connectivity AMP Connectors FN2070-6-07	Single Phase	Chassis Mount	DC ~ 400Hz		110 V 250 V	CSA ENEC UR	Wire Leads	7.8 mH	100 °C	-25 °C	Two Stage	General Purpose	6 A

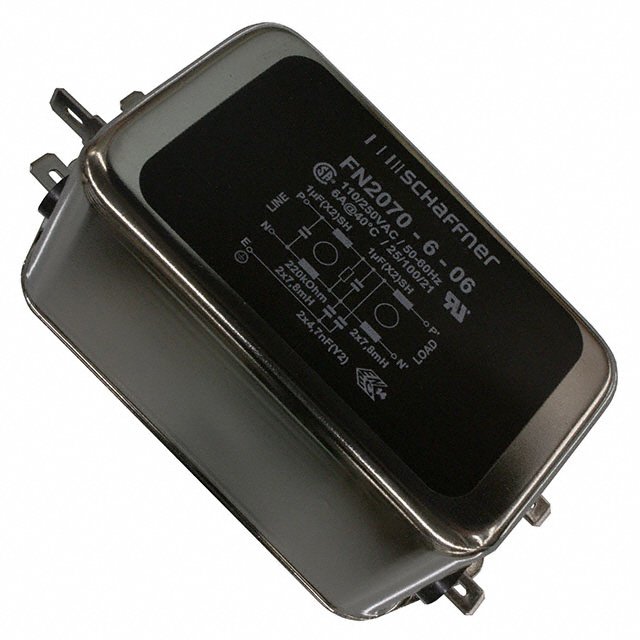

TE Connectivity AMP Connectors FN2070-6-06	Single Phase	Chassis Mount	DC ~ 400Hz		110 V 250 V	CSA ENEC UR	Quick Connect	7.8 mH	100 °C	-25 °C	Two Stage	General Purpose	6 A
