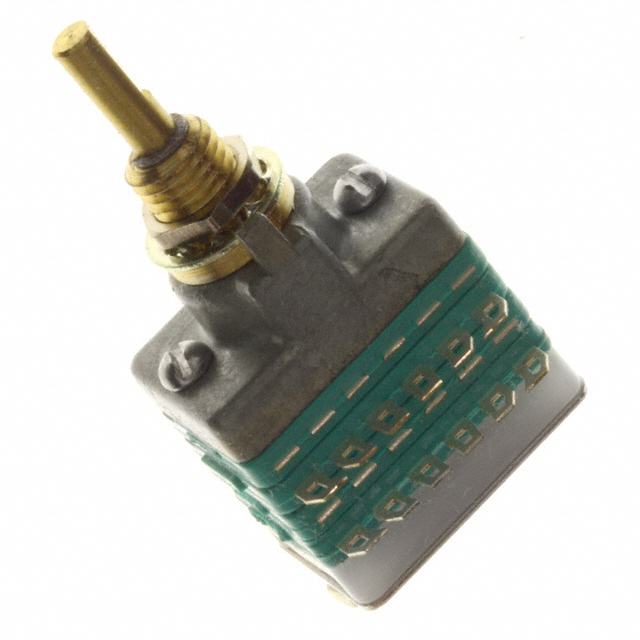

C1D0212 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-12POS 100MA 125V
| Part | Panel Cutout Dimensions [diameter] | Termination Style | Index Stops | Number of Positions [Max] | Number of Positions [Min] | Actuator Length [x] | Actuator Type | Contact Timing | Voltage Rating - AC | Number of Poles per Deck | Mounting Type | Current Rating (Amps) | Circuit per Deck | Contact Material | Angle of Throw | Contact Finish | Voltage Rating - DC | Number of Decks | Depth Behind Panel [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 6.76 mm | Solder Lug | Adjustable | 12 | 2 | 9.52 mm | Flatted (3.17mm Dia) | Shorting (MBB) | 125 V | 1 | Panel Mount | 100 mA 250 mA | SP12T | Brass | 30 ° | Silver | 28 V | 2 | 25.68 mm |
Electroswitch | 6.76 mm | PC Pin | Adjustable | 12 | 2 | 9.52 mm | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 125 V | 1 | Panel Mount Right Angle Through Hole | 100 mA 250 mA | SP12T | Brass | 30 ° | Silver | 28 V | 2 | 25.68 mm |
 Electroswitch | 6.76 mm | Solder Lug | Adjustable | 12 | 2 | 9.52 mm | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 125 V | 1 | Panel Mount | 100 mA 250 mA | SP12T | Brass | 30 ° | Silver | 28 V | 2 | 25.68 mm |
