IC & Component Sockets 1.27mm SM Dip & Chip Socket
IC & Component Sockets 1.27mm SM Dip & Chip Socket
| Part | Material Flammability Rating | Contact Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Type | Contact Material - Mating | Contact Finish - Post | Termination | Pitch - Post | Pitch - Post | Contact Material - Post | Mounting Type | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Features | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

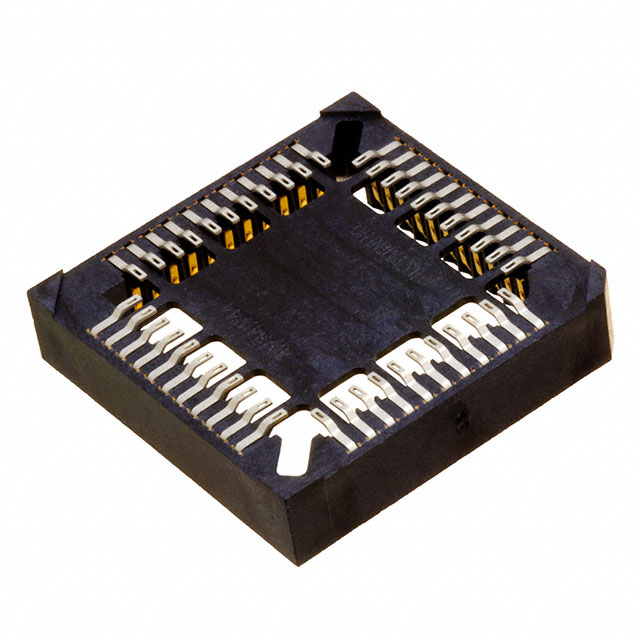

 Samtec Inc. | UL94 V-0 | 10 mOhm | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | PLCC | Beryllium Copper | Tin | Solder | 2.54 mm | 0.1 in | Beryllium Copper | Surface Mount | 4 11 | 44 | Closed Frame | 0.05 in | 1.27 mm | ||

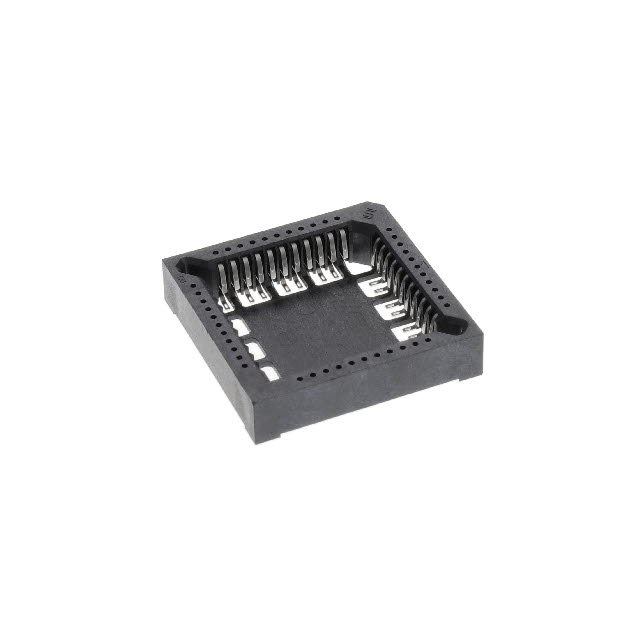

 Samtec Inc. | UL94 V-0 | 10 mOhm | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | PLCC | Beryllium Copper | Tin | Solder | 2.54 mm | 0.1 in | Beryllium Copper | Surface Mount | 4 11 | 44 | Closed Frame | 0.05 in | 1.27 mm | Gold | Flash |
