SM03B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

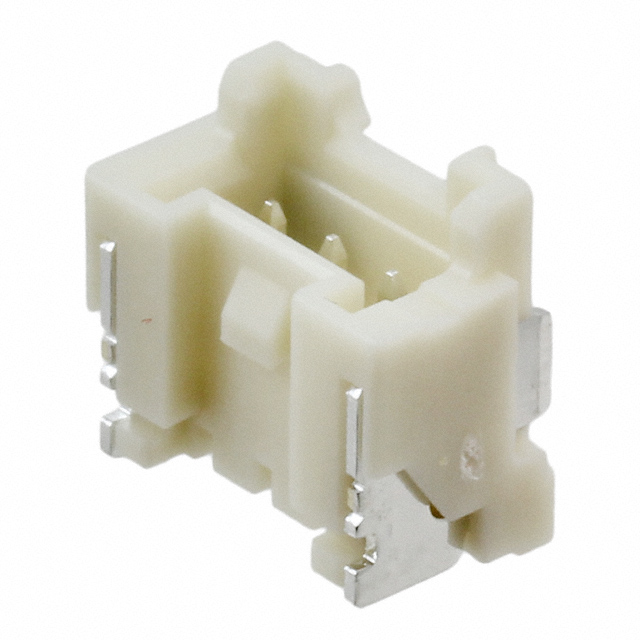

CONN HEADER SMD R/A 3POS 2MM
| Part | Style | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Fastening Type | Shrouding | Insulation Color | Voltage Rating | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Termination | Contact Finish - Post | Contact Shape | Contact Material | Material Flammability Rating | Number of Rows | Contact Type | Number of Positions Loaded | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | 5.69 mm | 0.224 in | 0.079 " | 2 mm | Locking Ramp | Shrouded - 4 Wall | Natural | 250 V | Nylon Polyamide (PA) | 85 °C | -25 °C | Right Angle Surface Mount | 3 A | Solder | Tin | Square | Copper Alloy | UL94 V-0 | 1 | Male Pin | All | Pick and Place Solder Retention | Header |
