8132 Series

Catalog

CBL RIBN 13COND 0.156 GRAY

Part	Conductor Material	Insulation Resistance	First Conductor Mark	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Length	Length	Ratings	Number of Conductors	Jacket Color	Features	Conductor Strand	Conductor Strand	Wire Gauge	Pitch	Pitch	Shielding	Cable Type	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life Start	Shelf Life	Tape Type	Thickness - Backing, Carrier [x]	Thickness - Backing, Carrier [x]	Thickness - Backing, Carrier [x]	Usage	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Width [x]	Width [x]	Thickness	Thickness	Thickness	Backing, Carrier	Length [x]	Length [x]	Number of Conductors [custom]	Length

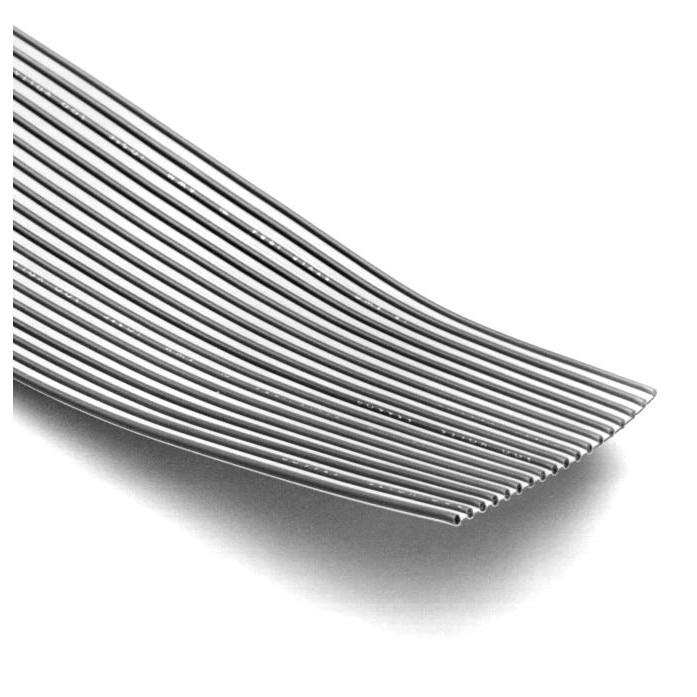

3M Electronic Specialty 8132/13	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	100 '	30.48 m	UL E42769	13	Gray	Zippable	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable	49.99 mm	1.968 in	0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)

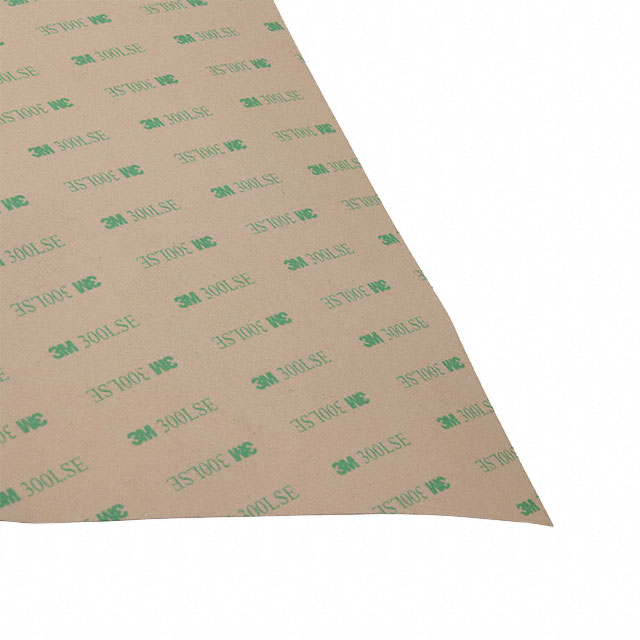

3M Electronic Specialty 8132LE-24"X36"							36 in	91.44 cm																	70 °F	21 °C	Date of Manufacture	24 Months	Adhesive Transfer	10.2 mils	0.0102 "	0.259 mm	Bonding	2.3 mils	0.0023 in	0.058 mm	Acrylic 300LSE	609.6 mm	24 in	0.317 mm	12.5 mils	0.0125 in	Polycoated Kraft Liner
3M Electronic Specialty 8132/09	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	100 '	30.48 m	UL E42769	9	Gray	Zippable	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable	34.14 mm	1.344 in	0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 8132/08 100	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	UL E42769		Gray	Zippable	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable	30.18 mm	1.188 in	0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)																				50 ft	15.24 m	8
3M Electronic Specialty 8132/22 100	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	100 '	30.48 m	UL E42769	22	Gray	Zippable	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable	85.65 mm	3.372 in	0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 8132/15 100	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	100 '	30.48 m	UL E42769	15	Gray	Zippable	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable	57.91 mm	2.28 in	0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 8132/03 100	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	UL E42769	3	Gray	Zippable	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable			0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)																				50 ft	15.24 m
3M Electronic Specialty 8132/06 100	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	1 ft 10 ft 25 ft 100 '	3.05 m 7.62 m 30.48 m 304.8 mm	UL E42769	6	Gray	Zippable	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable	22.25 mm	0.876 in	0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)																				50 ft	15.24 m		Enter Number of Feet in Order Quantity
3M Electronic Specialty 8132/06 100SF	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	100 '	30.48 m		6	Gray	Splice Free	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable	22.25 mm	0.876 in	0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 8132/05 100	Copper Tinned	10 GOhm	Red	80 °C	-20 ░C	300 VDC	100 '	30.48 m	UL E42769	5	Gray	Zippable	19	30 AWG	18 AWG	3.96 mm	0.156 in	Unshielded	Flat Cable	18.29 mm	0.72 in	0.077 in	1.96 mm	Poly-Vinyl Chloride (PVC)
