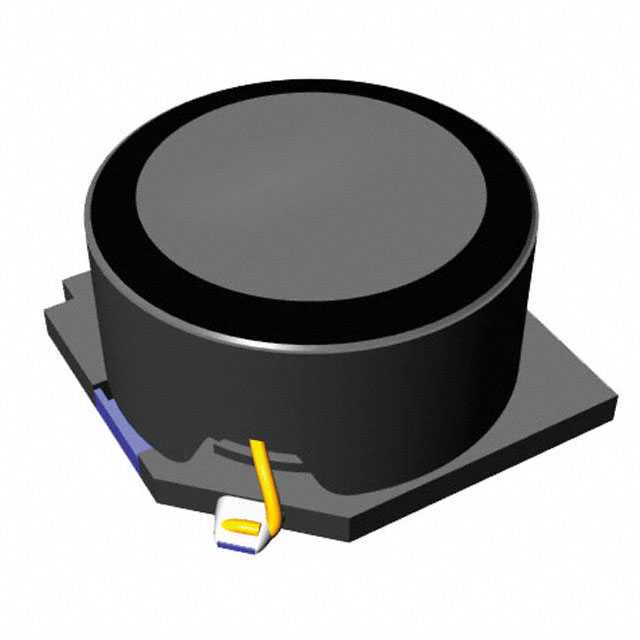

NS Series

Catalog

POWER INDUCTORS - SMD 963-LSRNJ10145GL6R8N RPLCMT PN 10145 6.8UH 24MOHMS 4220MAUR

Part	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Inductance	Tolerance	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Frequency - Self Resonant	Package / Case	Current - Saturation (Isat)	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Ratings	Height - Seated (Max) [Max]
Taiyo Yuden NS10145T6R8NNA	Ferrite	4.85 mm	0.191 in	Surface Mount	6.8 µH	30 %	4.22 A	0.398 in	10.1 mm	10.1 mm	0.398 in	24 mOhm	Shielded	125 °C	-40 C	100 kHz	23.1 MHz	Nonstandard	5.05 A	Drum Core Wirewound
Taiyo Yuden NS10155T3R3NNA	Ferrite			Surface Mount	3.3 µH	30 %	6.49 A	0.398 in	10.1 mm	10.1 mm	0.398 in		Shielded	125 °C	-40 C	100 kHz	40.6 MHz	Nonstandard	8.5 A	Drum Core Wirewound	5.85 mm	0.23 in	12 mOhm
Taiyo Yuden NS12565T221MNV	Ferrite			Surface Mount	220 µH	20 %	1.18 A	0.492 "	12.5 mm	12.5 mm	0.492 "		Shielded	125 °C	-40 C	100 kHz	3.6 MHz	Nonstandard	1.39 A	Drum Core Wirewound	6.85 mm	0.27 in	327.6 mOhm	AEC-Q200
Taiyo Yuden NS12565T220MN	Ferrite			Surface Mount	22 µH	20 %	3.91 A	0.492 "	12.5 mm	12.5 mm	0.492 "	37.2 mOhm	Shielded	125 °C	-40 C	100 kHz	12.5 MHz	Nonstandard	4.87 A	Drum Core Wirewound	6.85 mm	0.27 in
Taiyo Yuden NS12565T330MNV	Ferrite			Surface Mount	33 µH	20 %	3.22 A	0.492 "	12.5 mm	12.5 mm	0.492 "		Shielded	125 °C	-40 C	100 kHz	9.1 MHz	Nonstandard	3.8 A	Drum Core Wirewound	6.85 mm	0.27 in	46.8 mOhm	AEC-Q200
Taiyo Yuden NS10155T220MNV8				Surface Mount	22 µH	20 %	2.8 A	0.398 in	10.1 mm	10.1 mm	0.398 in		Shielded	125 °C	-40 C	100 kHz	11.3 MHz	Nonstandard	3.37 A	Wirewound	5.85 mm	0.23 in	51.6 mOhm
Taiyo Yuden NS12575T1R2NN	Ferrite			Surface Mount	1.2 µH	30 %	9.15 A	0.492 "	12.5 mm	12.5 mm	0.492 "		Shielded	125 °C	-40 C	100 kHz	101.7 MHz	Nonstandard	18.08 A	Drum Core Wirewound	0.309 "		6.96 mOhm		7.85 mm
Taiyo Yuden NS10165T2R2NNA	Ferrite			Surface Mount	2.2 µH	30 %	7.32 A	0.398 in	10.1 mm	10.1 mm	0.398 in		Shielded	125 °C	-40 C	100 kHz	63 MHz	Nonstandard	10.8 A	Drum Core Wirewound	6.85 mm	0.27 in	8.4 mOhm
Taiyo Yuden NS12555T151MN	Ferrite			Surface Mount	150 µH	20 %	1.43 A	0.492 "	12.5 mm	12.5 mm	0.492 "		Shielded	125 °C	-40 C	100 kHz	5.1 MHz	Nonstandard	1.22 A	Drum Core Wirewound	5.85 mm	0.23 in	211.2 mOhm
Taiyo Yuden NS10145T1R5NNA	Ferrite	4.85 mm	0.191 in	Surface Mount	1.5 µH	30 %	7.99 A	0.398 in	10.1 mm	10.1 mm	0.398 in	7.2 Ohm	Shielded	125 °C	-40 C	100 kHz	72.1 MHz	Nonstandard	10.34 A	Drum Core Wirewound
