Standard Card Edge Connectors
Standard Card Edge Connectors
| Part | Contact Finish | Number of Rows [custom] | Read Out | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Termination | Contact Material | Pitch | Pitch | Features | Mounting Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Color | Card Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

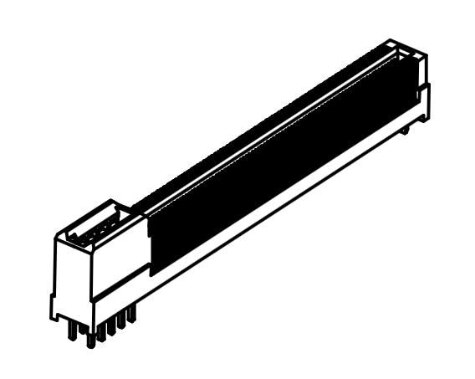

 Molex | Gold | 2 | Dual | 178 | 8 | 186 | Solder | Copper Alloy | 0.75 mm | 0.029 in | Board Guide Pick and Place | Surface Mount Through Hole | Female | -40 C | 105 ░C | 30 Áin | 0.76 Ám | Thermoplastic Glass Filled | Black | Non Specified - Dual Edge | 4 | 79 |
 Molex | Gold | 2 | Dual | 66 | Solder | Copper Alloy | 0.75 mm | 0.029 in | Board Guide Pick and Place | Surface Mount Through Hole | Female | -40 C | 105 ░C | 30 Áin | 0.76 Ám | Thermoplastic Glass Filled | Black | Non Specified - Dual Edge | 4 | 32 |
