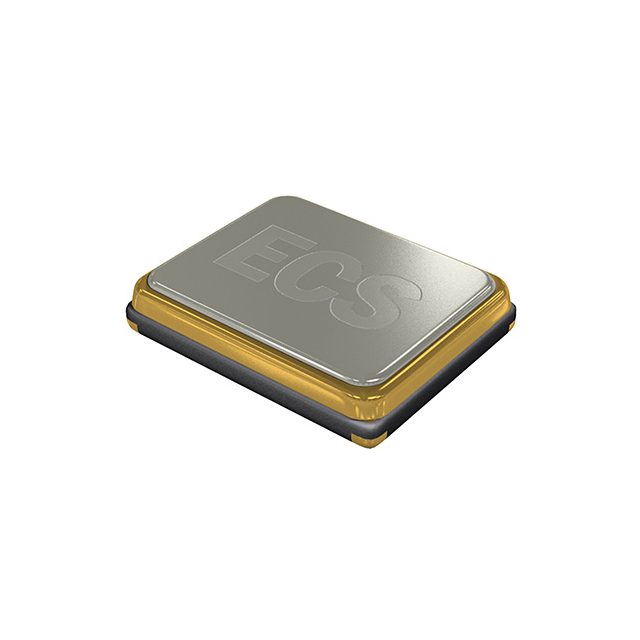

ECX-2236B Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 38.4MHZ ESR 40 8PF-30C +85C

Part	Operating Mode	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Mounting Type	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Type	Frequency Stability	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Load Capacitance	Frequency	Frequency Tolerance
ECS Inc. ECS-384-8-36B-CKY-TR	Fundamental	0.6 mm	0.024 in	4-SMD No Lead	Surface Mount	2	2.5	4-SMD	MHz Crystal	10 ppm	2.5 mm	0.079 in	0.098 in	2 mm	40 Ohms	85 °C	-30 ░C	8 pF	38.4 MHz	10 ppm
ECS Inc. ECS-384-10-36B-CWN-TR	Fundamental	0.6 mm	0.024 in	4-SMD No Lead	Surface Mount	2	2.5	4-SMD	MHz Crystal	15 ppm	2.5 mm	0.079 in	0.098 in	2 mm	40 Ohms	85 °C	-40 C	10 pF	38.4 MHz	10 ppm
ECS Inc. ECS-320-6-36B-CTN-TR3	Fundamental	0.6 mm	0.024 in	4-SMD No Lead	Surface Mount	2	2.5	4-SMD	MHz Crystal	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	40 Ohms	85 °C	-40 C	6 pF	32 MHz	10 ppm
