73083 Series

Catalog

CBL ASSY SMA PLUG TO PLUG 24"

Part	Features	Cable Type	Length [x]	Length [x]	Overall Impedance	2nd Connector Mounting Type	Style	1st Contact Gender	2nd Contact Gender	Color	Frequency - Max [Max]	Cable Impedance	2nd Connector	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector	1st Connector Mounting Type	Length	Length	Length

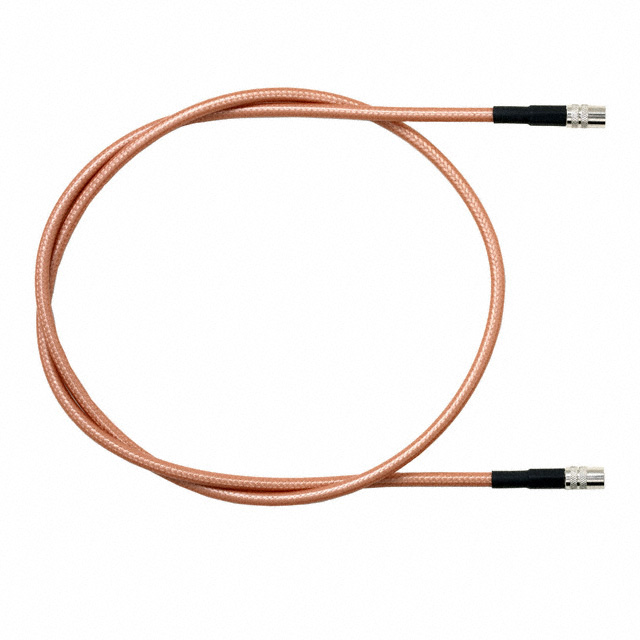

Pomona Electronics 73083-X-24	Shielded	RG-142B	609.6 mm	24 in	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Male	Male	Copper	4 GHz	50 Ohms	SMA Plug	-65 ░C	165 °C	SMA Plug	Free Hanging (In-Line)

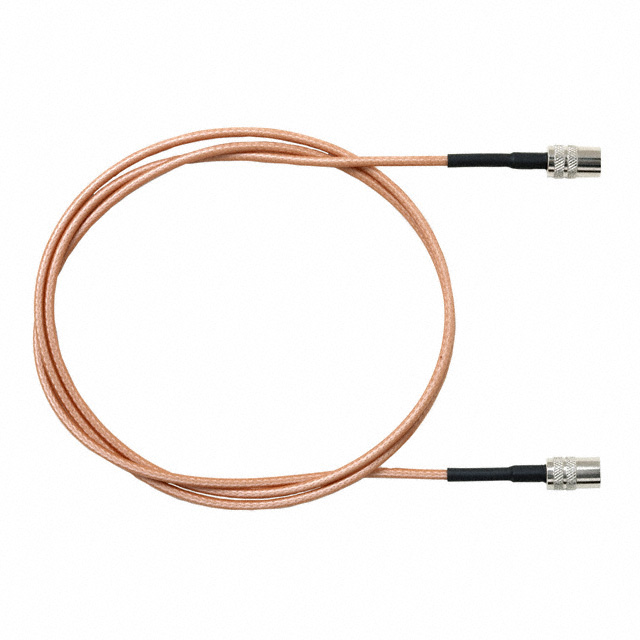

Pomona Electronics 73083-BB-60	Shielded	RG-316			50 Ohms	Free Hanging (In-Line)	SMA to SMA	Male	Male	Copper	4 GHz	50 Ohms	SMA Plug	-65 ░C	165 °C	SMA Plug	Free Hanging (In-Line)	60 in	1.5 m	5 ft
Pomona Electronics 73083-X-36	Shielded	RG-142B			50 Ohms	Free Hanging (In-Line)	SMA to SMA	Male	Male	Copper	4 GHz	50 Ohms	SMA Plug	-65 ░C	165 °C	SMA Plug	Free Hanging (In-Line)	36 in	91.44 cm
Pomona Electronics 73083-X-60	Shielded	RG-142B			50 Ohms	Free Hanging (In-Line)	SMA to SMA	Male	Male	Copper	4 GHz	50 Ohms	SMA Plug	-65 ░C	165 °C	SMA Plug	Free Hanging (In-Line)	60 in	1.5 m	5 ft
Pomona Electronics 73083-BB-48	Shielded	RG-316			50 Ohms	Free Hanging (In-Line)	SMA to SMA	Male	Male	Copper	4 GHz	50 Ohms	SMA Plug	-65 ░C	165 °C	SMA Plug	Free Hanging (In-Line)	48 in	1200 mm	4 ft
Pomona Electronics 73083-X-12	Shielded	RG-142B	304.8 mm	12 in	50 Ohms	Free Hanging (In-Line)	SMA to SMA	Male	Male	Copper	4 GHz	50 Ohms	SMA Plug	-65 ░C	165 °C	SMA Plug	Free Hanging (In-Line)
Pomona Electronics 73083-X-48	Shielded	RG-142B			50 Ohms	Free Hanging (In-Line)	SMA to SMA	Male	Male	Copper	4 GHz	50 Ohms	SMA Plug	-65 ░C	165 °C	SMA Plug	Free Hanging (In-Line)	48 in	1200 mm	4 ft
