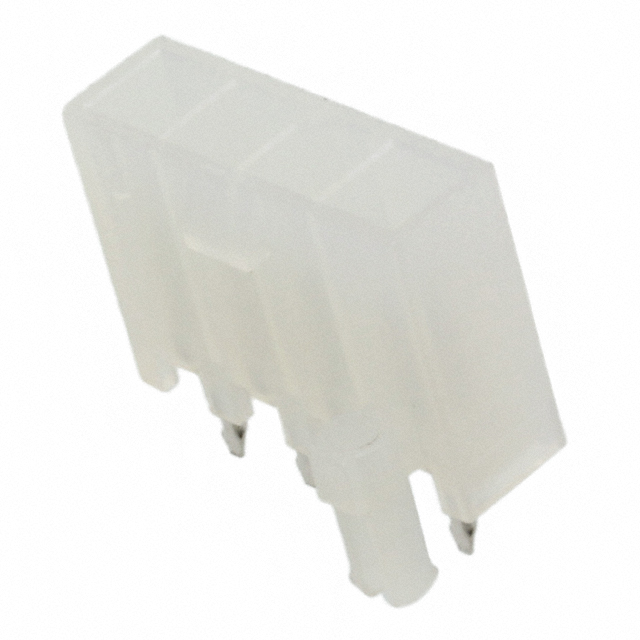

2029054 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
5P VAL-U-LOK SR HDR SN V2 W/DH ROHS COMPLIANT: YES
| Part | Number of Rows | Contact Type | Mounting Type | Contact Finish - Post | Termination | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Insulation Height | Insulation Height | Insulation Color | Number of Positions Loaded | Contact Shape | Contact Length - Post | Contact Length - Post | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Style | Insulation Material | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Voltage Rating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Male Pin | Through Hole | Tin | Solder | Locking Ramp | 2.03 µm | 80 µin | 9 A | 12.8 mm | 0.504 in | Natural | All | Square | 3.5 mm | 0.138 in | Shrouded - 4 Wall | 2.03 µm | 80 µin | Header | -40 °C | 105 ░C | Brass Alloy | Board to Cable/Wire | Nylon Polyamide (PA) | 4.2 mm | 0.165 in | UL94 V-2 | 600 VAC | General Purpose Industrial Lighting |
