RPF Series

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS ALUMINUM RADIAL POLY MER

Part	Capacitance	Package / Case	Lifetime @ Temp.	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KYOCERA AVX RPF06084R7M100K	4.7 µF	Can Radial	5000 Hrs	Through Hole	9 mm	0.354 in	100 V	132 mOhm	2.5 mm	0.098 in	1.2 A	General Purpose	0.248 "	6.3 mm	20 %	-55 C	105 ░C	Polymer
KYOCERA AVX RPF1016681M035K	680 µF	Can Radial	5000 Hrs	Through Hole	17 mm		35 V	22 mOhms	5 mm	0.197 "	3000 mA	General Purpose	0.394 in	10 mm	20 %	-55 C	105 ░C	Polymer	0.669 "
KYOCERA AVX RPF1012151M063K	150 µF	Can Radial	5000 Hrs	Through Hole			63 V	33 mOhms	5 mm	0.197 "	2.2 A	General Purpose	0.394 in	10 mm	20 %	-55 C	105 ░C	Polymer	0.512 "	13 mm
KYOCERA AVX RPF1012471M025K	470 µF	Can Radial	5000 Hrs	Through Hole			25 VDC	22 mOhms	5 mm	0.197 "	3.6 A	General Purpose	0.394 in	10 mm	20 %	-55 C	105 ░C	Polymer	0.512 "	13 mm
KYOCERA AVX RPF0508331M006K	330 µF	Can Radial	5000 Hrs	Through Hole	9 mm	0.354 in	6.3 VDC	22 mOhms	2 mm	0.079 in	3.6 A	General Purpose	0.197 in	5 mm	20 %	-55 C	105 ░C	Polymer
KYOCERA AVX RPF0811221M025K	220 µF	Can Radial	5000 Hrs	Through Hole		0.472 in	25 VDC	22 mOhms	3.5 mm	0.138 in	2.7 A	General Purpose	0.315 in	8 mm	20 %	-55 C	105 ░C	Polymer			12 mm

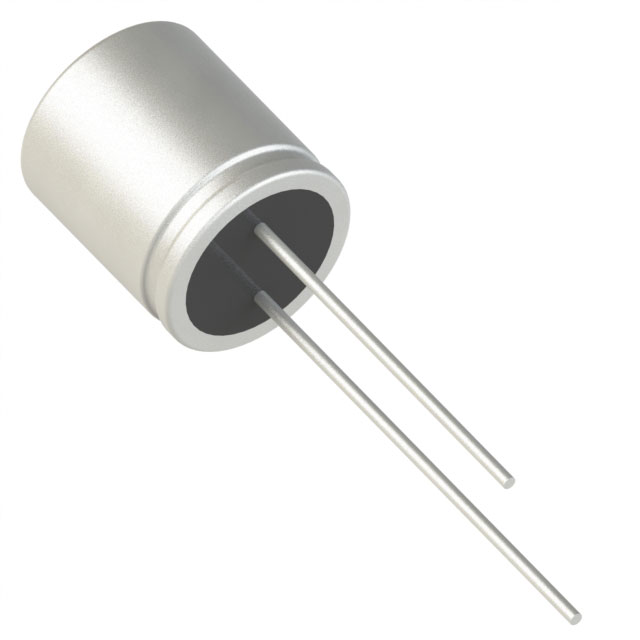

KYOCERA AVX RPF0809102M006K	1000 µF	Can Radial	5000 Hrs	Through Hole	10 mm	0.394 in	6.3 VDC	13 mOhms	3.5 mm	0.138 in	4.3 A	General Purpose	0.315 in	8 mm	20 %	-55 C	105 ░C	Polymer

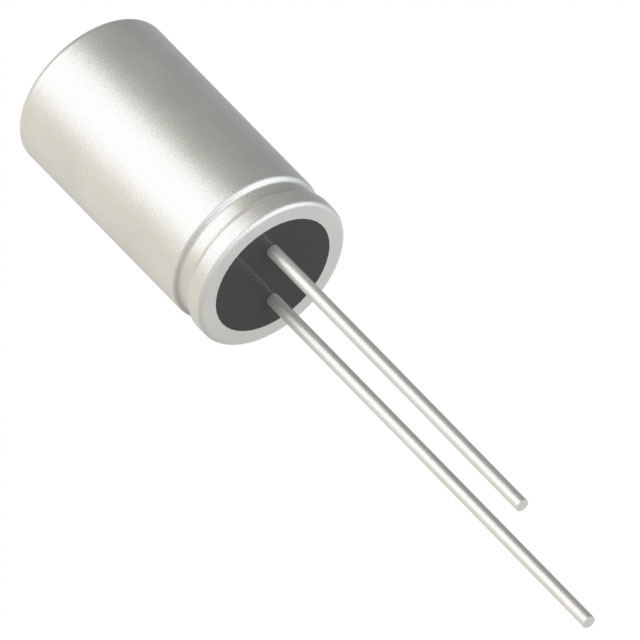

KYOCERA AVX RPF0611471M016K	470 µF	Can Radial	5000 Hrs	Through Hole		0.472 in	16 V	16 mOhm	2.5 mm	0.098 in	2.8 A	General Purpose	0.248 "	6.3 mm	20 %	-55 C	105 ░C	Polymer			12 mm

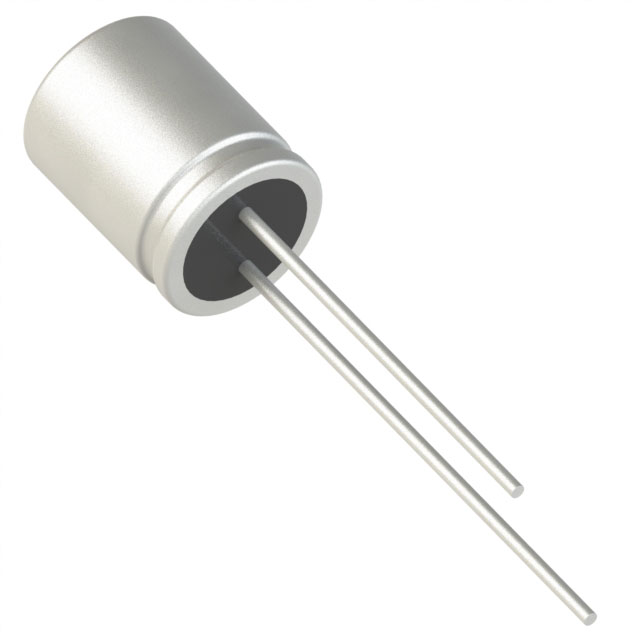

KYOCERA AVX RPF0608331M010K	330 µF	Can Radial	5000 Hrs	Through Hole	9 mm	0.354 in	10 V	22 mOhms	2.5 mm	0.098 in	2.9 A	General Purpose	0.248 "	6.3 mm	20 %	-55 C	105 ░C	Polymer
KYOCERA AVX RPF0608330M063K	33 ÁF	Can Radial	5000 Hrs	Through Hole	9 mm	0.354 in	63 V	33 mOhms	2.5 mm	0.098 in	1.5 A	General Purpose	0.248 "	6.3 mm	20 %	-55 C	105 ░C	Polymer
