1355211 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

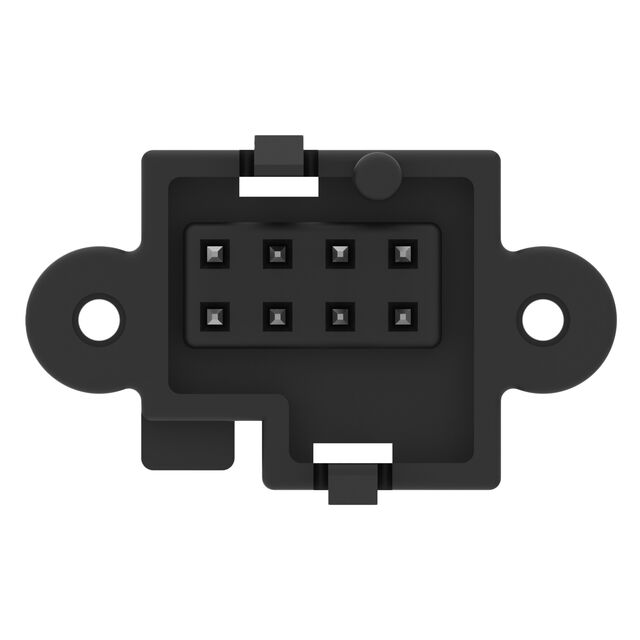

8POS MQS .63 HEADER 180DEG
| Part | Features | Voltage Rating | Fastening Type | Contact Material | Style | Number of Positions | Material Flammability Rating | Insulation Color | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Contact Finish - Post | Contact Type | Number of Rows [custom] | Shrouding | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Material | Row Spacing - Mating [x] | Row Spacing - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Mounting Flange | 50 V | Push-Pull | Copper Alloy | Board to Cable/Wire | 8 | UL94 V-0 | Black | Square | 0.122 in | 3.1 mm | Header | Tin | Male Pin | 2 | Shrouded - 4 Wall | Solder | 120 °C | -40 C | All | Through Hole | 0.1 " | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | 0.105 in | 2.66 mm | 16.5 mm | 0.65 in |
