1658486 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MSB0.80RC-ASY112DP,GP,30,VCTY ROHS COMPLIANT: YES

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Features	Pitch	Pitch	Number of Rows [custom]	Contact Finish	Height Above Board [z]	Height Above Board [z]	Connector Type	Number of Positions [custom]
TE Connectivity AMP Connectors 3-1658486-4	30 Áin	0.76 Ám	112	Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female

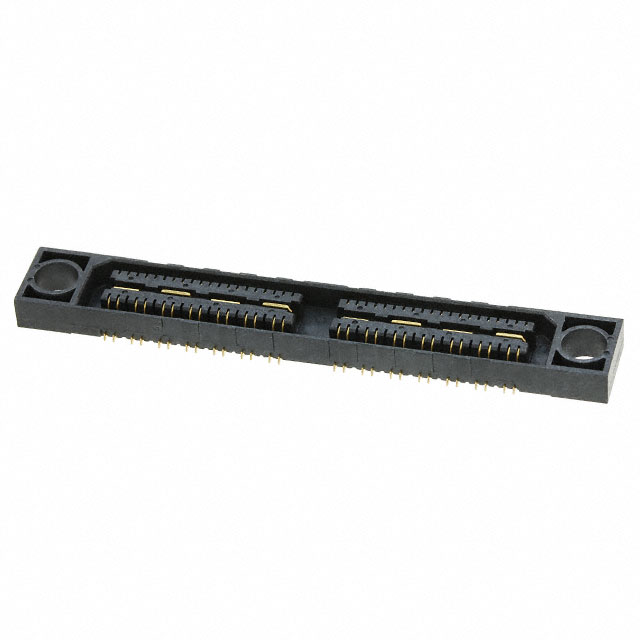

TE Connectivity AMP Connectors 5-1658486-2	30 Áin	0.76 Ám	56	Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female
TE Connectivity AMP Connectors 7-1658486-1	30 Áin	0.76 Ám	28	Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female
TE Connectivity AMP Connectors 1-1658486-3	30 Áin	0.76 Ám		Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female	84
TE Connectivity AMP Connectors 5-1658486-1	30 Áin	0.76 Ám	28	Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female

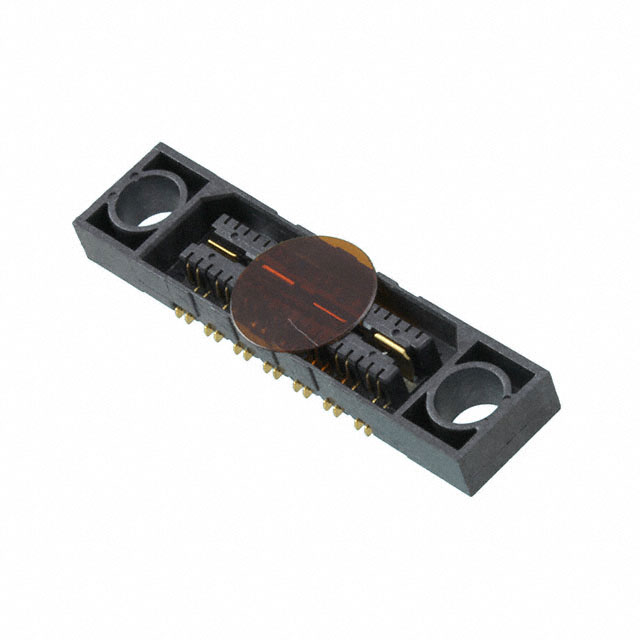

TE Connectivity AMP Connectors 3-1658486-1	30 Áin	0.76 Ám	28	Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female
TE Connectivity AMP Connectors 1-1658486-5	30 Áin	0.76 Ám	140	Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female
TE Connectivity AMP Connectors 3-1658486-5	30 Áin	0.76 Ám	140	Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female
TE Connectivity AMP Connectors 1-1658486-4	30 Áin	0.76 Ám	112	Surface Mount	Board Guide Ground Bus (Plane)	0.8 mm	0.031 in	2	Gold	0.12 in	3.05 mm	Differential Pair Array Female
