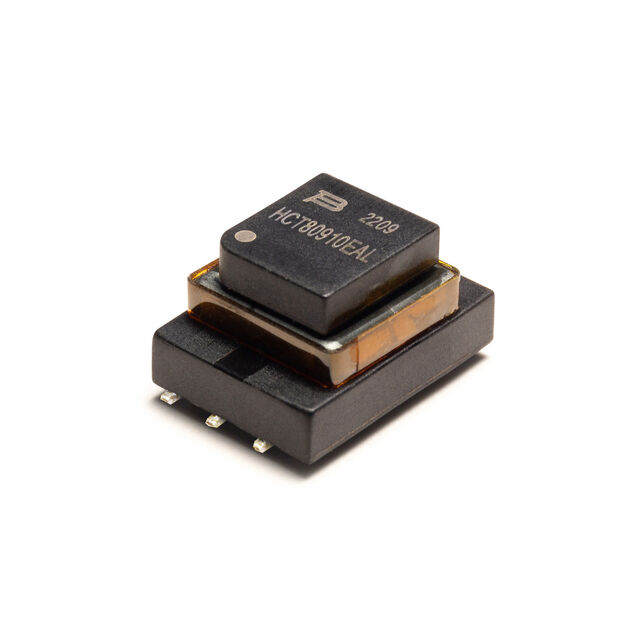

HCT8xEAL Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER TRANSFORMERS 8.0MM CLEARANCE AND CREEPAGE TRANSFORMER, 5.0KVDC,-40C TO +125C
| Part | ET (Volt-Time) | Grade | Turns Ratio - Primary:Secondary [custom] | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Qualification | Operating Temperature [Max] | Operating Temperature [Min] | Transformer Type | Inductance | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 14 VµS | Automotive | 2:1 | Surface Mount | 8 mm | 0.315 in | AEC-Q200 | 125 °C | -40 C | General Purpose | 160 µH | 0.417 " | 10.6 mm | 14.2 mm | 0.559 " |
