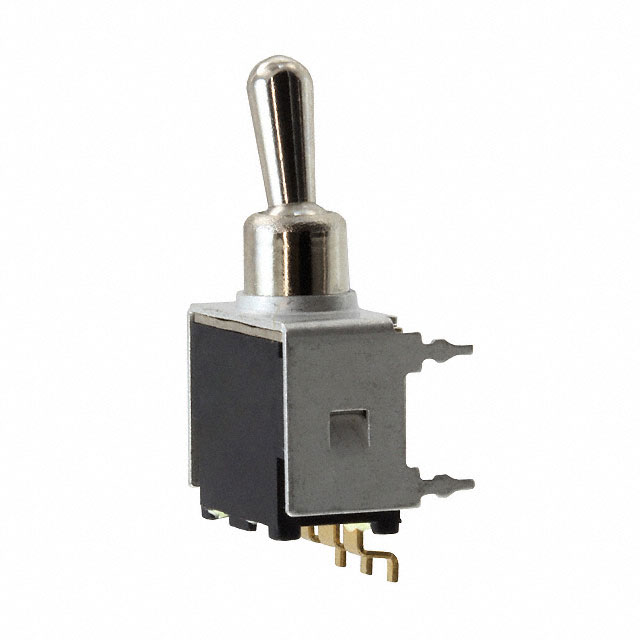

CF-TA Series

Manufacturer: Nidec Components Corporation

Catalog

TOGGLE SWITCHES SPDT, ON-OFF-ON, 6MM TOGGLE, RIGHT ANGLE GULL WING TERMINALS WITH BRACKET, 50MA @ 48V AC/DC, BULK PACKAGING

Part	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Current Rating (Amps)	Bushing Thread	Illumination	Mounting Type	Actuator Length [x]	Circuit	Termination Style	Voltage Rating - DC	Switch Function	Actuator Type
Nidec Components Corporation CF-TA-1EB4-A12	10000 Cycles	85 °C	-40 C	48 V	50 mA	Unthreaded	Non-Illuminated	Right Angle Surface Mount	6 mm	SPDT	Gull Wing	48 V	On-Off-On	Standard Round

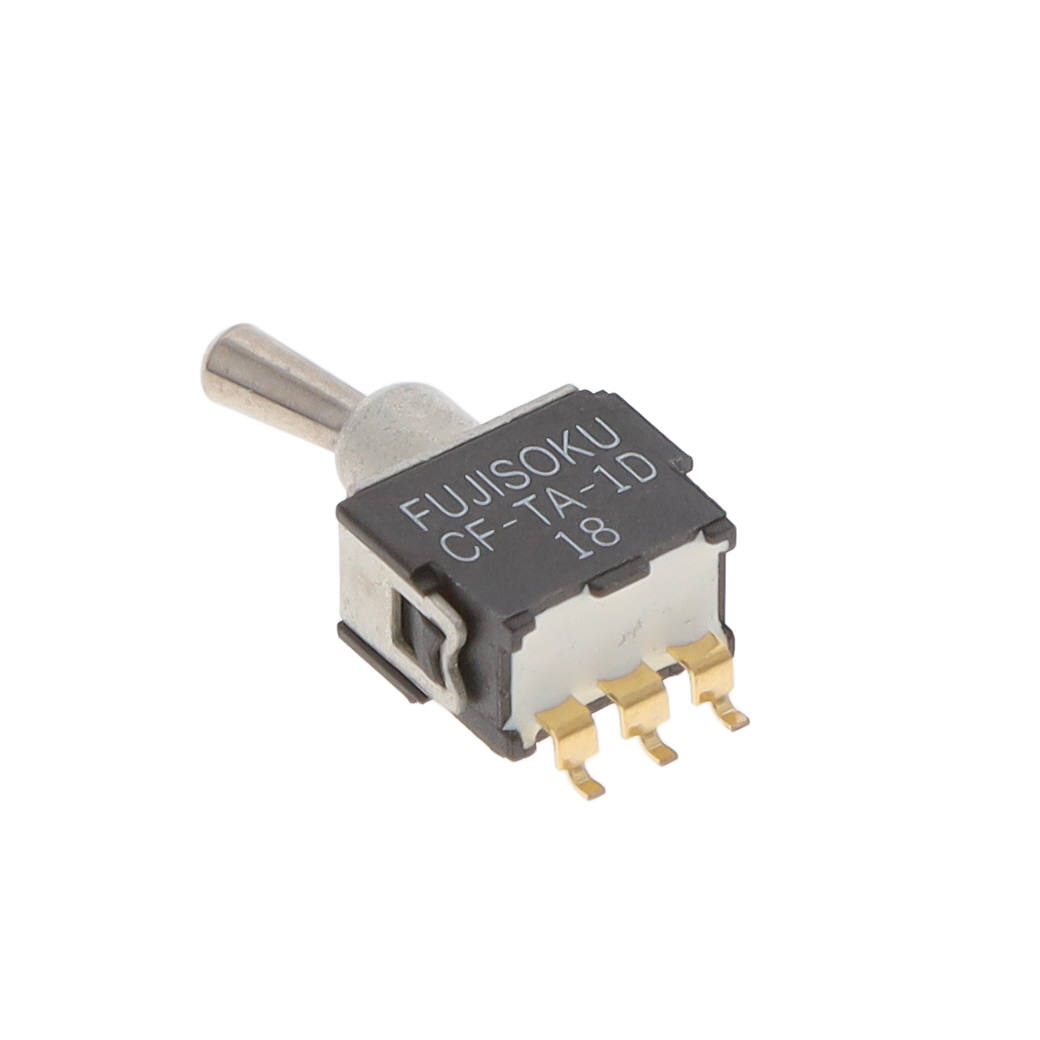

Nidec Components Corporation CF-TA-1DB4-A02	10000 Cycles	85 °C	-40 C	48 V	50 mA	Unthreaded	Non-Illuminated	Right Angle Surface Mount	6 mm	SPDT	Gull Wing	48 V	On-On	Standard Round
Nidec Components Corporation CF-TA-1FB4-A02	10000 Cycles	85 °C	-40 C	48 V	50 mA	Unthreaded	Non-Illuminated	Right Angle Surface Mount	6 mm	SPDT	Gull Wing	48 V	On-Mom	Standard Round
Nidec Components Corporation CF-TA-1GB4-A12	10000 Cycles	85 °C	-40 C	48 V	50 mA	Unthreaded	Non-Illuminated	Right Angle Surface Mount	6 mm	SPDT	Gull Wing	48 V	Mom-Off-Mom	Standard Round
Nidec Components Corporation CF-TA-1EB4-A02	10000 Cycles	85 °C	-40 C	48 V	50 mA	Unthreaded	Non-Illuminated	Right Angle Surface Mount	6 mm	SPDT	Gull Wing	48 V	On-Off-On	Standard Round
Nidec Components Corporation CF-TA-1DB4-L12	10000 Cycles	85 °C	-40 C	48 V	50 mA	Unthreaded	Non-Illuminated	Right Angle Surface Mount	11.5 mm	SPDT	Gull Wing	48 V	On-On	Locking Lever
Nidec Components Corporation CF-TA-1DB4-A12	10000 Cycles	85 °C	-40 C	48 V	50 mA	Unthreaded	Non-Illuminated	Right Angle Surface Mount	6 mm	SPDT	Gull Wing	48 V	On-On	Standard Round
Nidec Components Corporation CF-TA-1HB4-A02	10000 Cycles	85 °C	-40 C	48 V	50 mA	Unthreaded	Non-Illuminated	Right Angle Surface Mount	6 mm	SPDT	Gull Wing	48 V	On-Off-Mom	Standard Round
