R12860 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

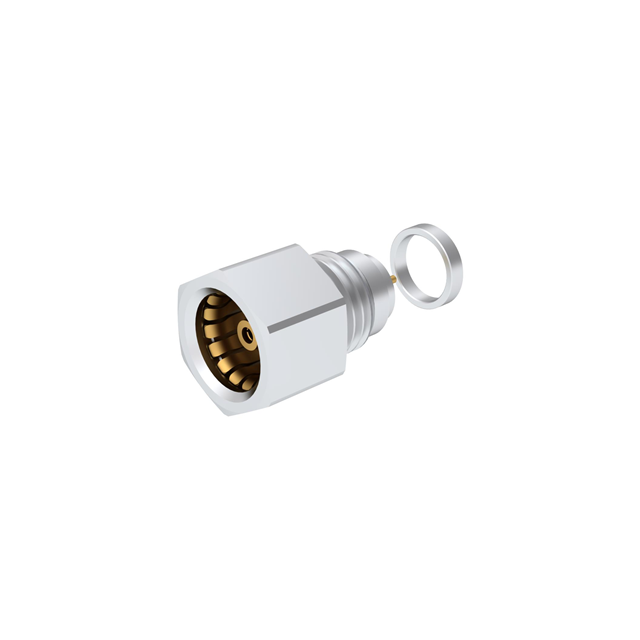

BMA / THREAD-IN JACK RECEPTACLE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Voltage Rating | Dielectric Material | Center Contact Plating | Impedance | Connector Type | Center Contact Material | Frequency - Max [Max] | Connector Style | Mounting Type | Housing Color | Fastening Type | Shield Termination | Features | Number of Ports | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 1000 | Stainless Steel | 500 V | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Receptacle Female Socket | Beryllium Copper | 22 GHz | BMA | Through Hole | Silver | Threaded | Solder | Extended Insulation Hermetically Sealed | 1 | Solder |
 Radiall USA, Inc. | -65 ░C | 165 °C | 1000 | Stainless Steel | 500 V | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Receptacle Female Socket | Beryllium Copper | 22 GHz | BMA | Through Hole | Silver | Threaded | Solder | Extended Insulation Hermetically Sealed | 1 | Solder |
