2102061 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CONN RCPT 114POS 0.05 GOLD SMD

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Shape	Connector Type	Applications	Termination	Contact Finish - Mating	Number of Positions Loaded	Mounting Type	Number of Positions	Voltage Rating	Insulation Color	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows

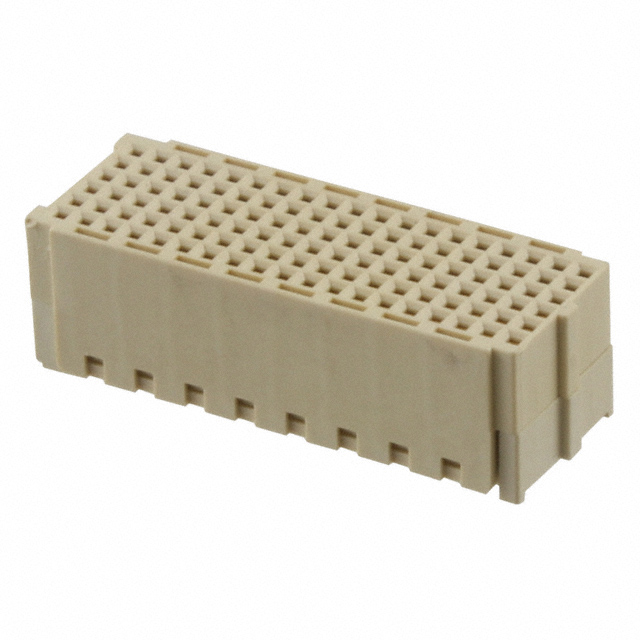

TE Connectivity Aerospace, Defense and Marine 2102061-3	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	12 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	1.27 µm	50 µin	Tin-Lead	0.315 in	8 mm	6
TE Connectivity Aerospace, Defense and Marine 1-2102061-0	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	18 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	1.27 µm	50 µin	Tin	0.551 in	14 mm	6

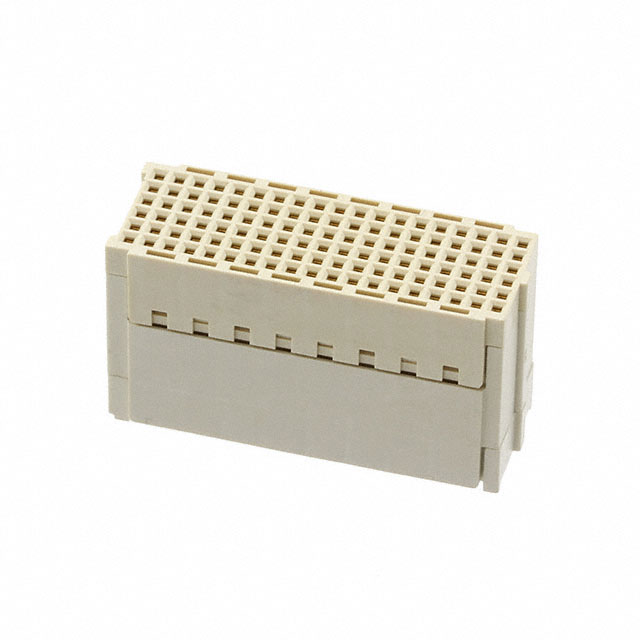

TE Connectivity Aerospace, Defense and Marine 1-2102061-1	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	18 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	0.76 Ám	30 Áin	Tin-Lead	0.551 in	14 mm	6

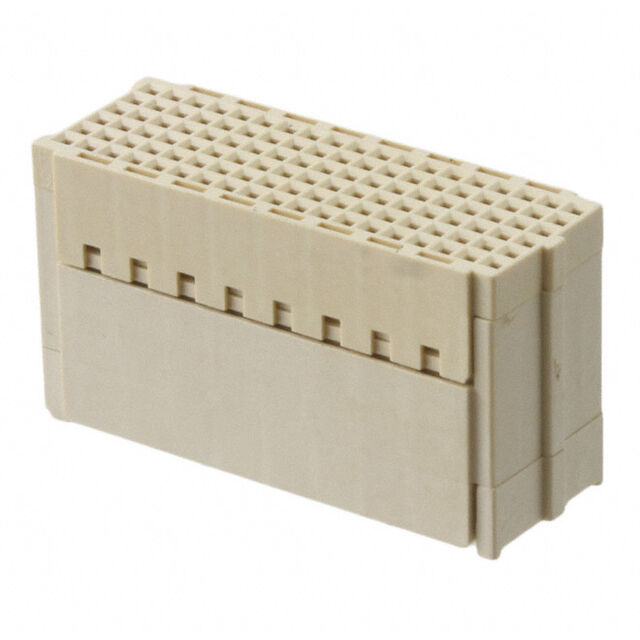

TE Connectivity Aerospace, Defense and Marine 1-2102061-2	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	18 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	0.76 Ám	30 Áin	Tin	0.551 in	14 mm	6

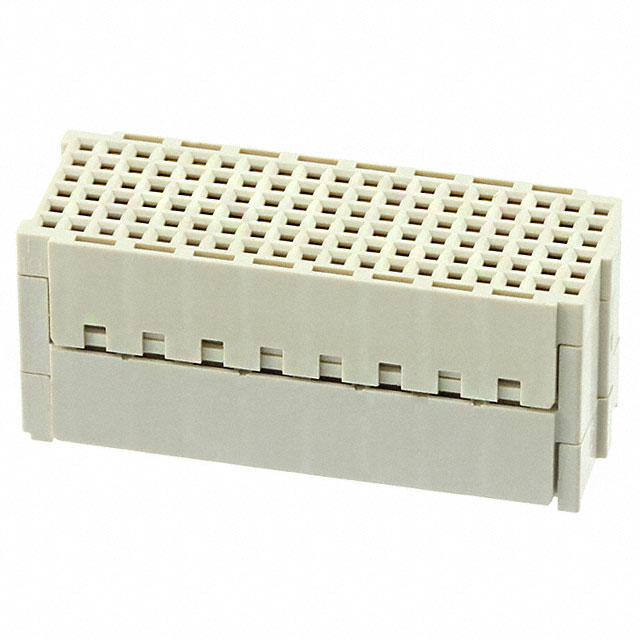

TE Connectivity Aerospace, Defense and Marine 1-2102061-5	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	15 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	0.76 Ám	30 Áin	Tin-Lead	0.433 in	11 mm	6

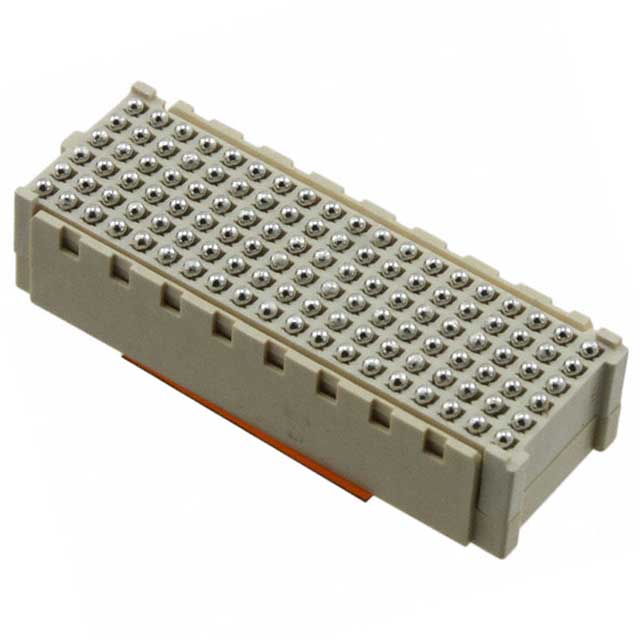

TE Connectivity Aerospace, Defense and Marine 2102061-2	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	10 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	1.27 µm	50 µin	Tin	0.236 in	6 mm	6

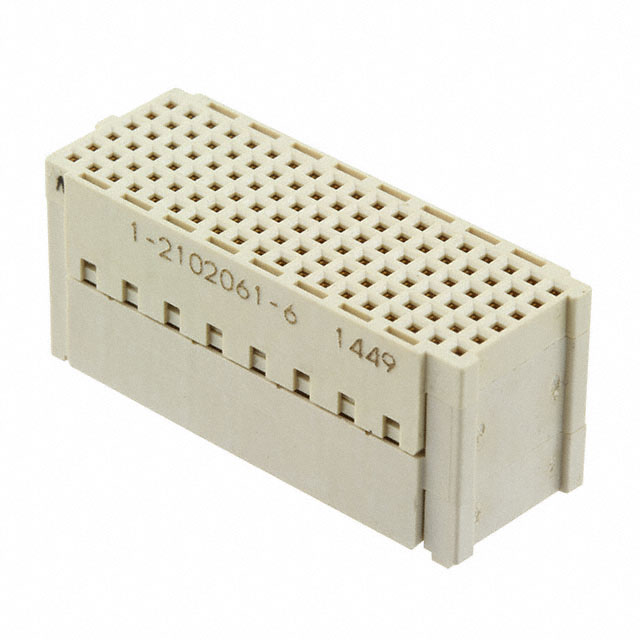

TE Connectivity Aerospace, Defense and Marine 1-2102061-6	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	15 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	0.76 Ám	30 Áin	Tin	0.433 in	11 mm	6

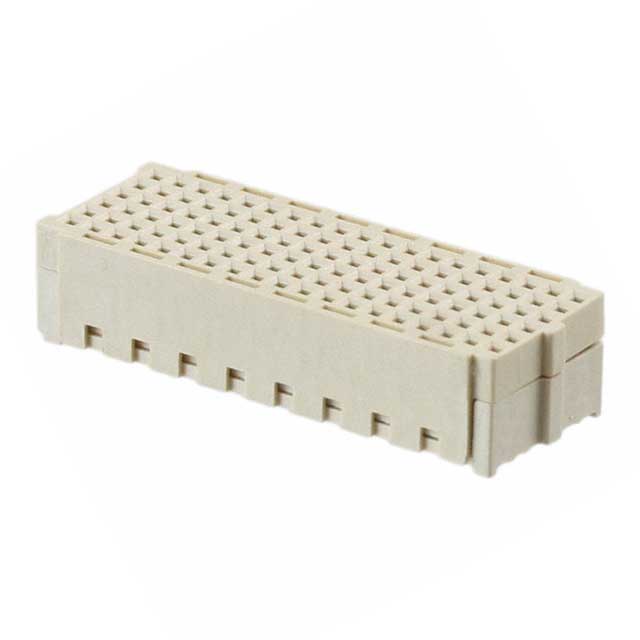

TE Connectivity Aerospace, Defense and Marine 2102061-6	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	10 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	0.76 Ám	30 Áin	Tin	0.236 in	6 mm	6
TE Connectivity Aerospace, Defense and Marine 2102061-5	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	10 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	0.76 Ám	30 Áin	Tin-Lead	0.236 in	6 mm	6

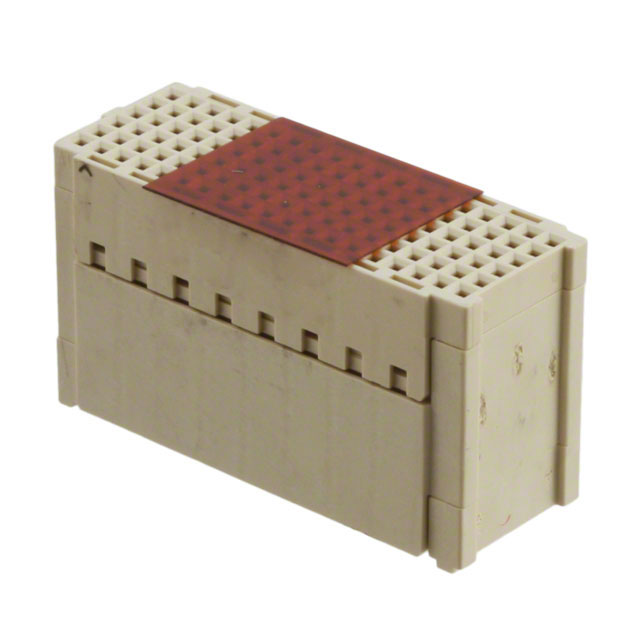

TE Connectivity Aerospace, Defense and Marine 2102061-9	Push-Pull	-55 °C	125 °C	Pick and Place	0.05 in	1.27 mm	Beryllium Copper	Square	Receptacle	General Purpose Military	Solder	Gold	All	Surface Mount	114	250 VAC	Natural	18 mm	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Female Socket	1.27 µm	50 µin	Tin-Lead	0.551 in	14 mm	6
